Connecting the Switch to the Power Converter
Attaching the Power Converter to the Switch
To connect the power converter to the switch, follow these steps:
Step 1 Remove the left side panel of the switch by firmly grasping both sides of it in the middle and pulling it
outward. If necessary, use a screwdriver to open the side panel. See Figure 2-38.

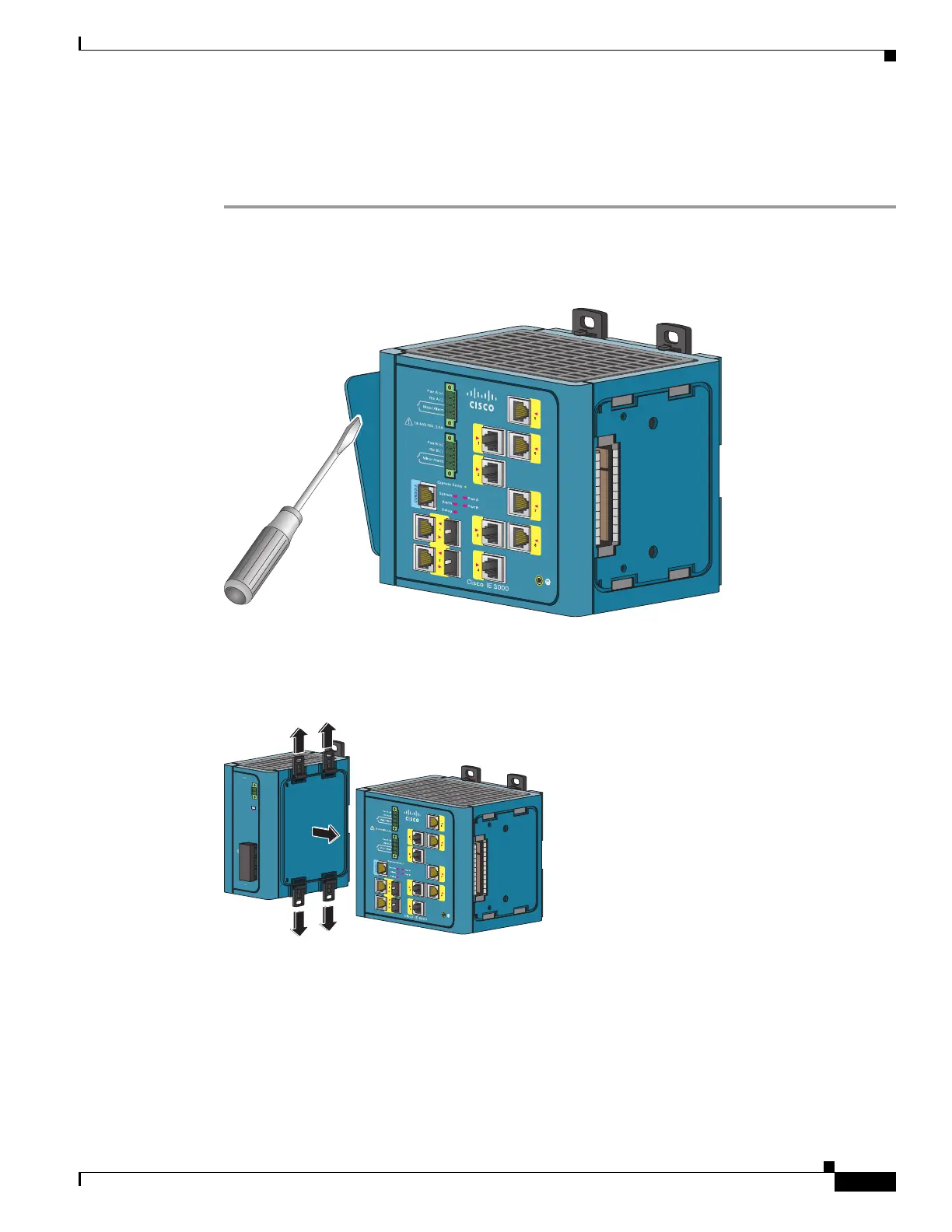

Figure 2-38 Opening the Left Side Panel of the Switch
Step 2
Push the upper modules latches (at the top of the switch and the power converter) up and the lower
module latches (at the bottom of the switch and the power converter) down. See Figure 2-39.
Figure 2-39 Pushing the Module Latches Up and Positioning the Hardware
