55
Power Supply Installation
Power-Supply Module Installation
You can also use a ring or flanged spade terminal as listed in the Equipment That You Need, page 49.

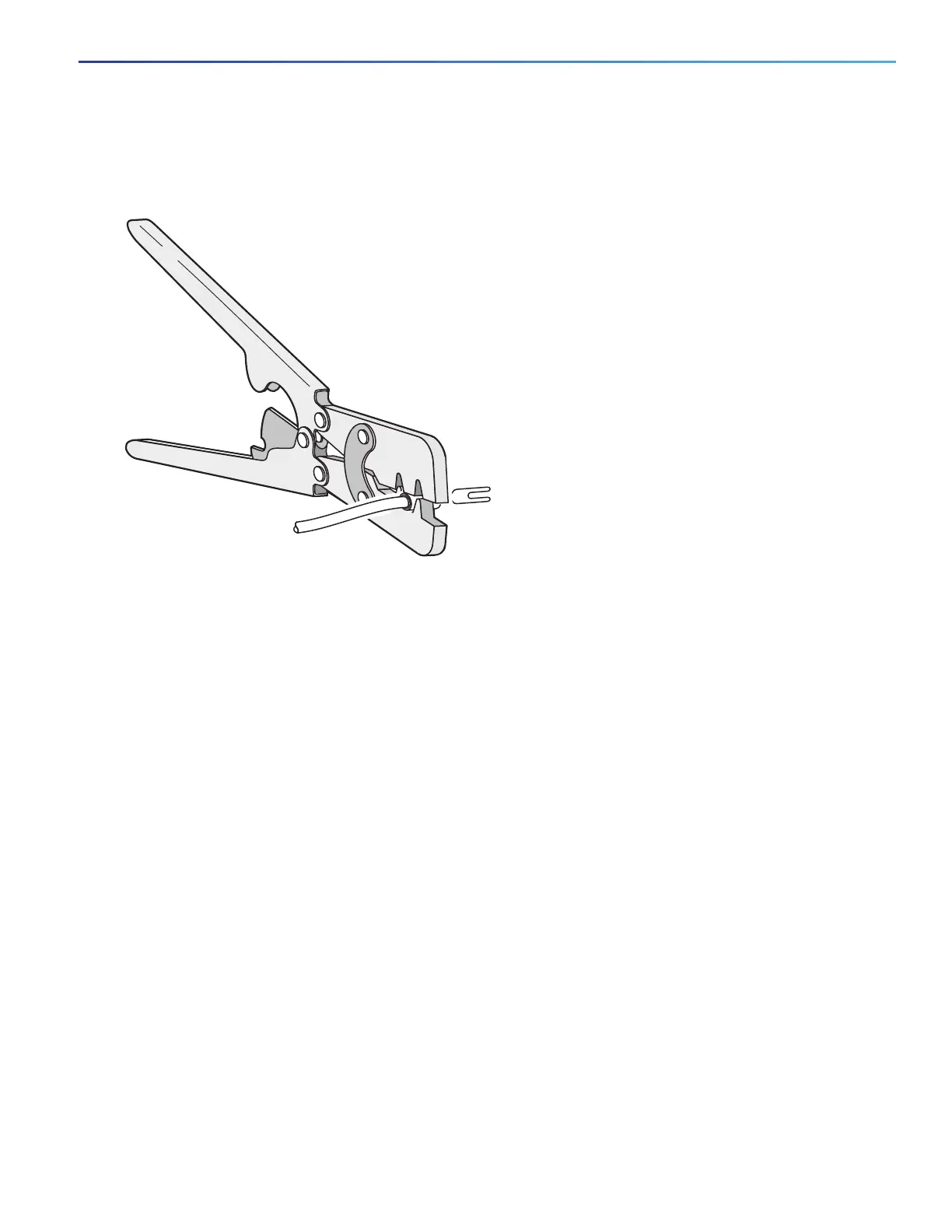

Figure 47 Crimping the Spade Terminal Lug
6. Loosen the terminal screw, and slide the terminal under the screw and washer. See Figure 49 on page 56.
Note: Use the appropriate terminal screws based on power supply type: high-voltage (AC or DC) or low-voltage
(DC).
7. Make the power connection:
AC Power Connection
Connect the line wire into the terminal screw labeled L and the neutral wire into the terminal screw labeled N to
complete the AC connection.
207427
To Next Page
