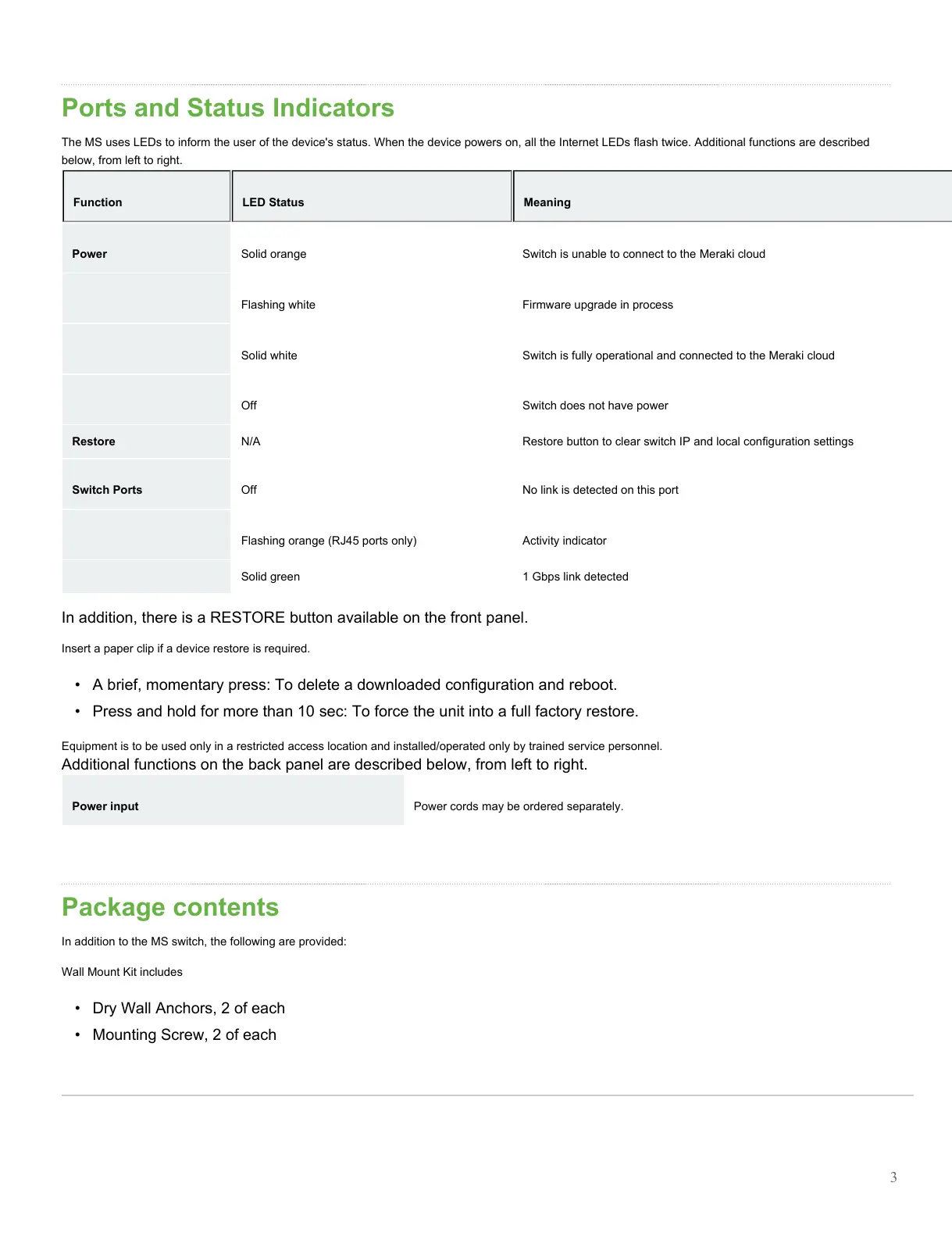

Ports and Status Indicators
The MS uses LEDs to inform the user of the device's status. When the device powers on, all the Internet LEDs flash twice. Additional functions are described
below, from left to right.
Function LED Status Meaning
Power Solid orange Switch is unable to connect to the Meraki cloud
Flashing white Firmware upgrade in process
Solid white Switch is fully operational and connected to the Meraki cloud
Off Switch does not have power
Restore N/A Restore button to clear switch IP and local configuration settings
Switch Ports Off No link is detected on this port
Flashing orange (RJ45 ports only) Activity indicator
Solid green 1 Gbps link detected
In addition, there is a RESTORE button available on the front panel.
Insert a paper clip if a device restore is required.
• A brief, momentary press: To delete a downloaded configuration and reboot.
• Press and hold for more than 10 sec: To force the unit into a full factory restore.
Equipment is to be used only in a restricted access location and installed/operated only by trained service personnel.
Additional functions on the back panel are described below, from left to right.
Power input Power cords may be ordered separately.
Package contents
In addition to the MS switch, the following are provided:
Wall Mount Kit includes
• Dry Wall Anchors, 2 of each
• Mounting Screw, 2 of each
3
