Back Panel Components
Item Function
LED
Status
Meaning
1 Restore N/A
Restore button to clear switch IP and local configuration
settings
2 Management Interface Green Connected, used for easy access to the local status page
3 Stack Ports N/A Stack Cables are connected here
4 Redundant Fans Green Active and operational
5
Redundant Power
Supplies
Green Active and functional power supplies
Power cords may be ordered separately.
Equipment is to be used only in a restricted access location and installed/operated only by trained service personnel.

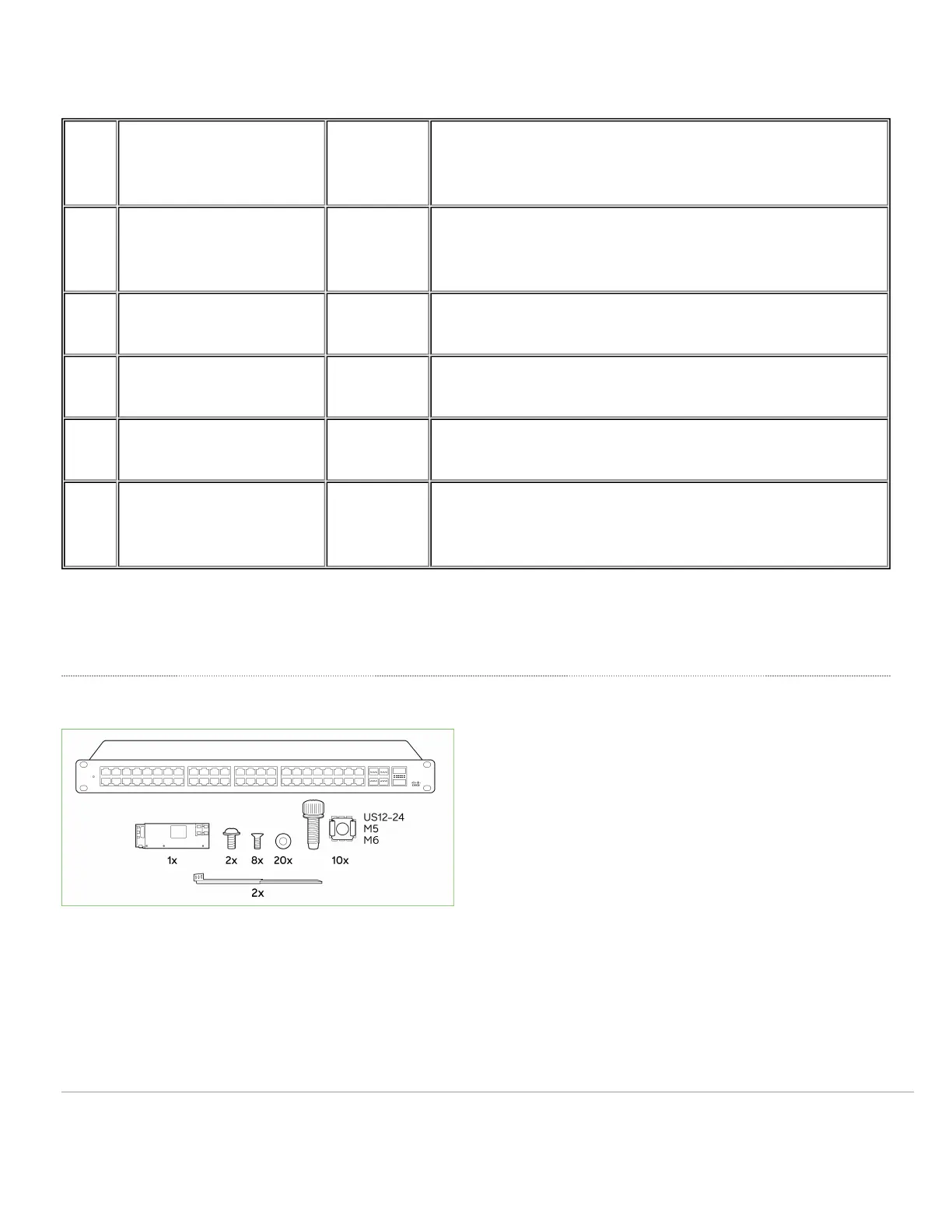

Package Contents
In addition to the MS switch, the following are provided (mounting kit provided with 1U models only):
• 4-post Rack Mount Kit includes:
◦ US 12-24 mounting screws and cage nuts, 10 of each
◦ INTL M5 mounting screws and cage nuts, 10 of each
4
