D1507602 User Guide
Cisco TelePresence MX200 G2, MX300 G2
SX80
Produced: April 2014 for TC 7.1
All contents © 2010–2014
Cisco Systems, Inc. All rights reserved.
This feature allows you to be in a call
with two parties, but one at a time
only.
You may swap whom you are in call
with, and you may connect the two
together, while you leave the call.

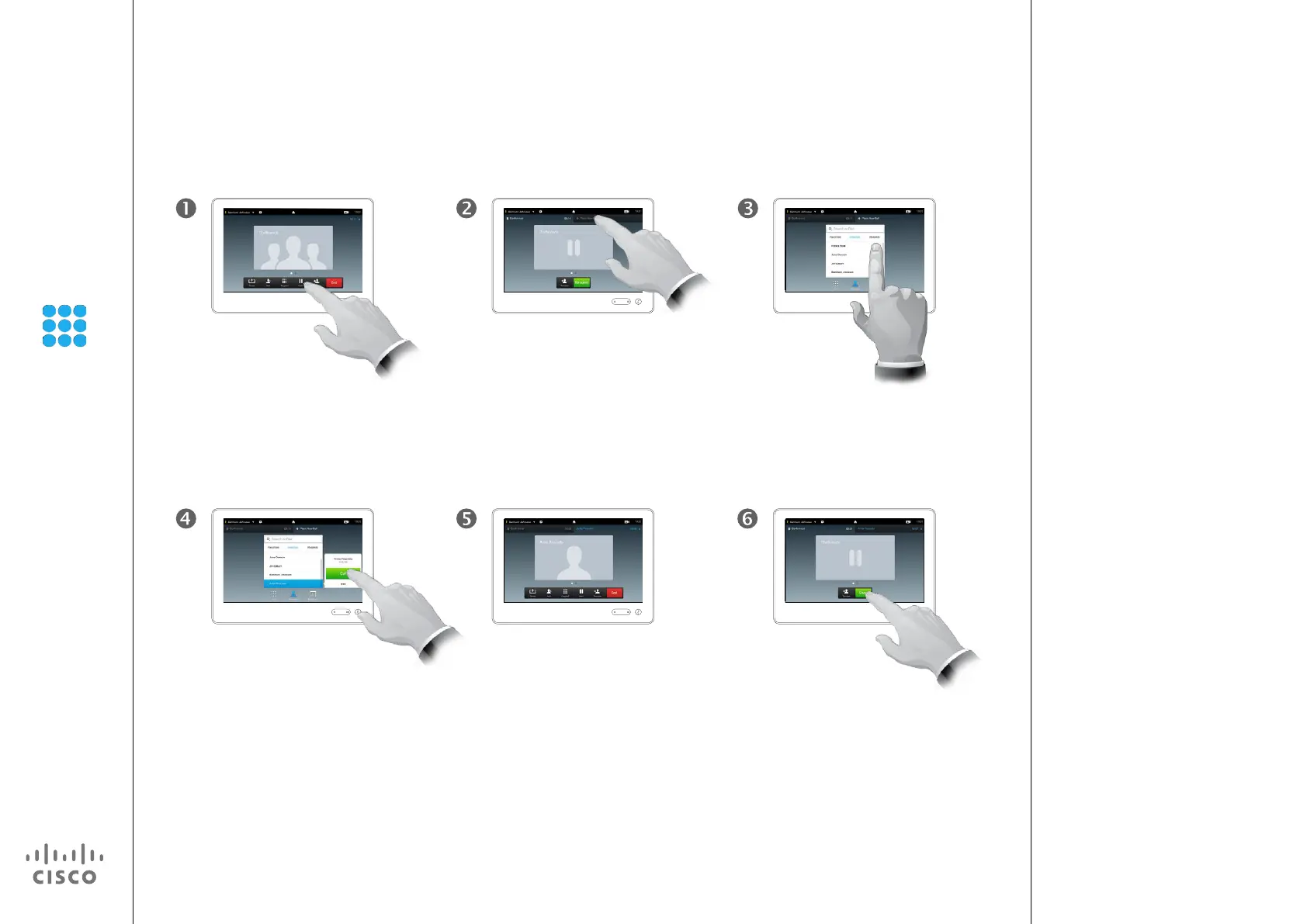

About Consult and Transfer
Locate
whom to
call in the
usual way.
Assume that
you are in a
call. Tap Hold,
as outlined.
Tap + Place New Call, as
outlined, or tap Resume to go
back to the one you were in
call with (to undo your action).
Place the call in the
usual way.
You are now in the new
call while the one you
were in call with still is
on hold.
Tap Swap to
go between
the two parties
and Transfer
to connect the
two together, while you leave the call.
Consult and Transfer
Transfer Call

Cisco MX200 G2 Specifications

General

Control	Touch 10 control unit
Video Standards	H.264, H.265
Frame Rate	Up to 60 fps
Ethernet Ports	1 x RJ-45
OS	Cisco Collaboration Endpoint Software
Microphone	Integrated microphone array
Network	Gigabit Ethernet
Video Inputs	HDMI
Video Outputs	HDMI
Audio Standards	G.711, G.722, AAC
Network Protocols	TCP/IP, DHCP, DNS
Audio Inputs	3.5 mm mini jack
Audio Outputs	3.5mm jack
Audio Codecs	AAC-LD, Opus
Mounting	Wall mount
Compatibility	Cisco Webex, SIP
