Conference Calls with Multiple Participants
Manage Conference Call Layout
The new layout will now be put
in eect.

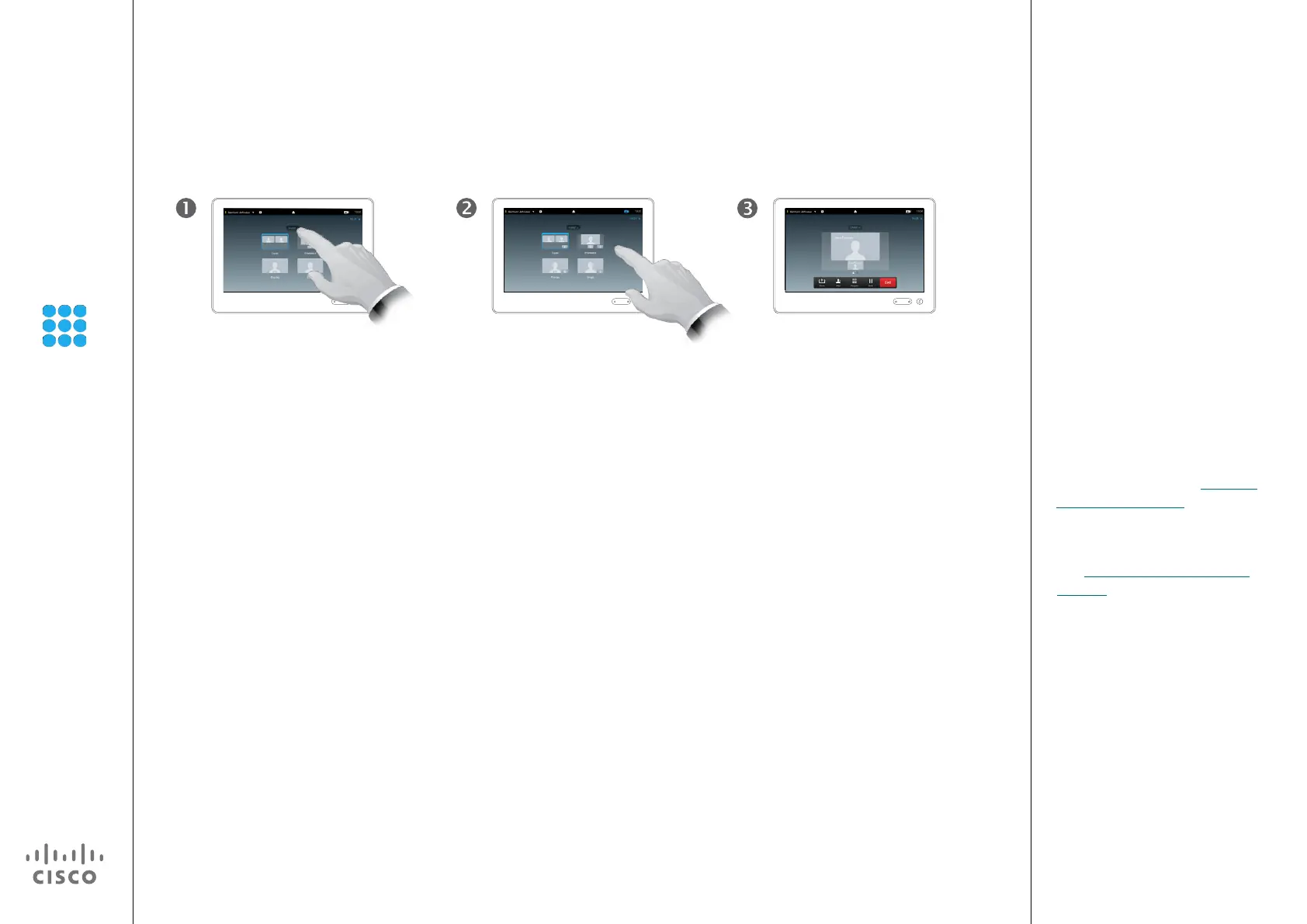

To change the existing
layout on your video screen,
tap Layout, as outlined.
Tap the new preferred
layout, as outlined.
You may alter the screen layout
when you are in a call. The Touch
pad will show the options available.
The actual options may dier from
what is shown here, but the Touch
device will always show you what is
available.
The WYSIWYG (what you see is what
you get) principle applies even here.
Including a Selfview
Selfview (what the others see from
your video system) may be added
to any layout in the usual way. To
invoke the selfview See “Manage
Selfview” on page 47.
If needed, you may also move the
selfview to a dierent location.
See “Move the Selfview PiP” on
page 49.
About Layout Options

Cisco MX200 G2 Specifications

General

Control	Touch 10 control unit
Video Standards	H.264, H.265
Frame Rate	Up to 60 fps
Ethernet Ports	1 x RJ-45
OS	Cisco Collaboration Endpoint Software
Microphone	Integrated microphone array
Network	Gigabit Ethernet
Video Inputs	HDMI
Video Outputs	HDMI
Audio Standards	G.711, G.722, AAC
Network Protocols	TCP/IP, DHCP, DNS
Audio Inputs	3.5 mm mini jack
Audio Outputs	3.5mm jack
Audio Codecs	AAC-LD, Opus
Mounting	Wall mount
Compatibility	Cisco Webex, SIP
