Introduction
Connecting the Equipment
Cisco Small Business RV0xx Series Routers Administration Guide 15
1
Connecting the Equipment
STEP 1 Make sure that all network devices are powered off, including the router, PCs,
Ethernet switches, and broadband network device (DSL or cable modem).

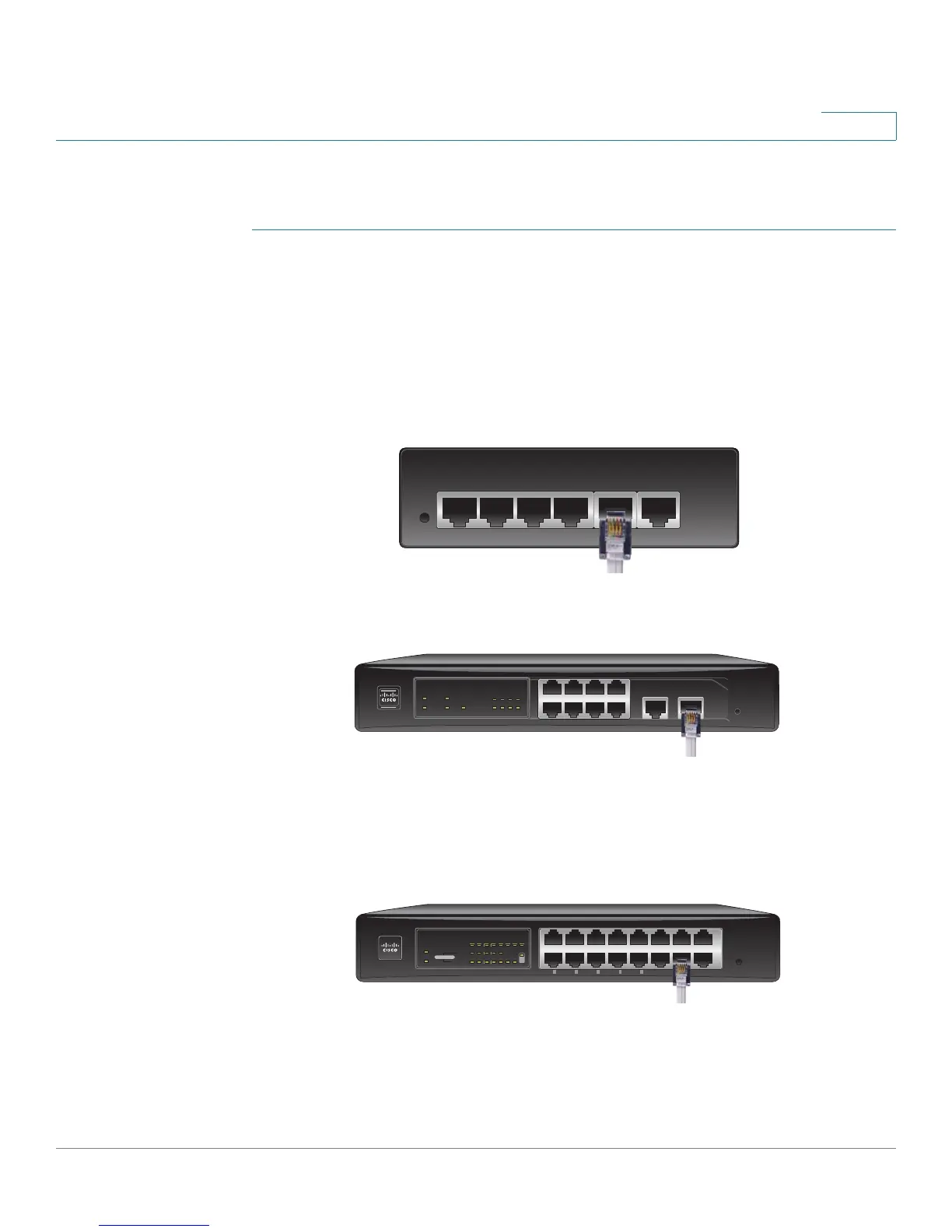

STEP 2 To connect to your Internet service:
• RV042, RV042G, and RV082: Connect an Ethernet cable from the
broadband network device to the Internet port of the router.
RV042 and RV042G Internet Port
RV082 Internet Port
• RV016: Connect an Ethernet cable from the broadband network device to
the Internet 1 port of the router.
RV016 Internet 1 Port
STEP 3 To connect a secondary Internet service:
• RV042, RV042G, and RV082: Connect an Ethernet cable from the DMZ/
Internet port to a second broadband network device.
199619
DMZ/Internet1 2 3 4 Internet
199620
12 3 4
56 7 8
DMZ/Internet Internet
1234
5678
DIAG
System
Internet
DMZ
Internet
DMZ
Mode
Cisco Small Business
RV082
10/100
16-Port VPN Router
199621
Cisco Small Business
RV016
10/100
16-Port VPN
12345678
97 10 6 115 124 133
Internet 2 Internet 1 DMZ
12345678
910111213
7654321
DIAG
System
LAN/Act
LAN/Act
Internet/Act
Internet Internet
Dual-Function Ports
DMZ
