Port-Channel3, and Port-Channel4. When you share subinterfaces from a single parent, the VLAN group
table provides better scaling of the forwarding table than when sharing physical/EtherChannel interfaces
or subinterfaces across parents.

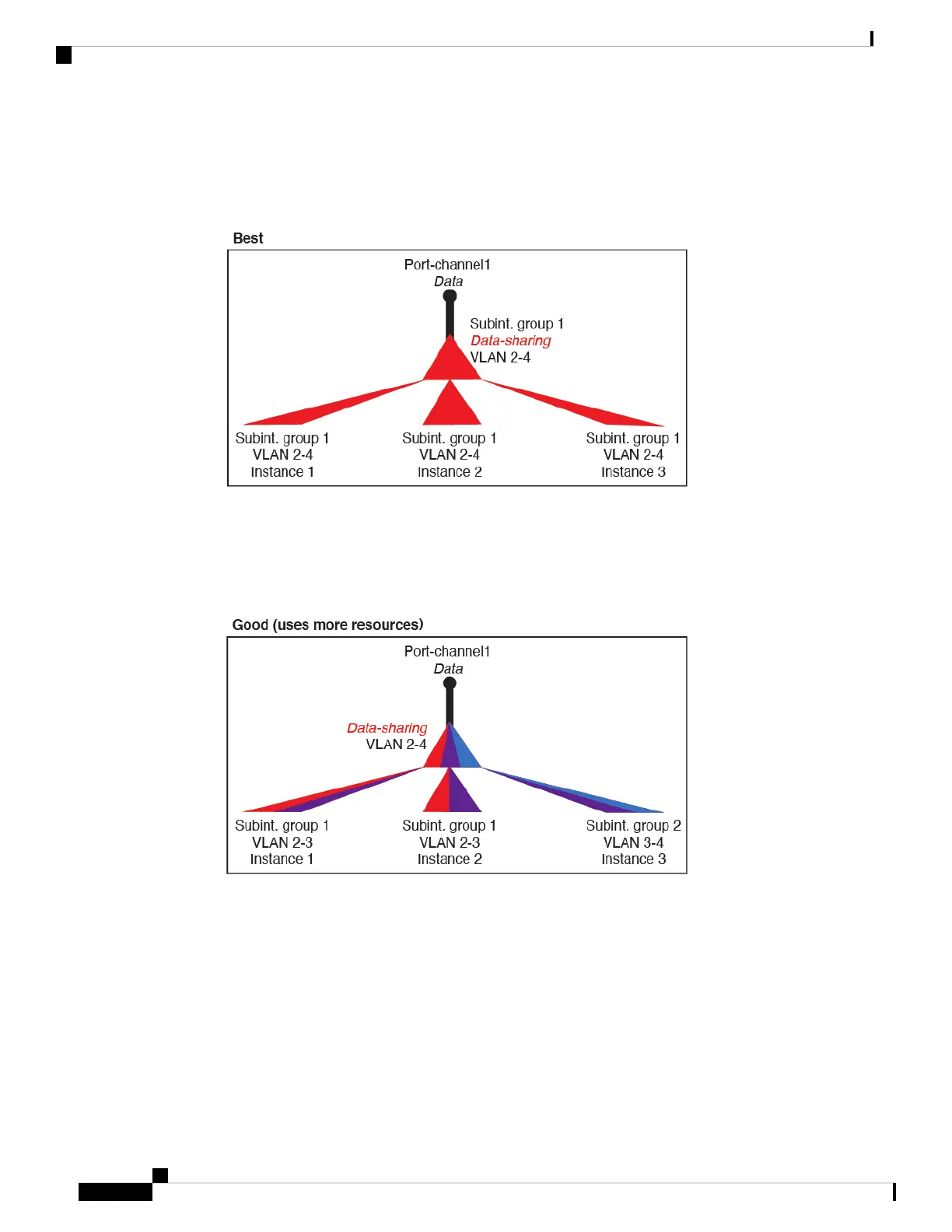

Figure 2: Best: Shared Subinterface Group on One Parent
If you do not share the same set of subinterfaces with a group of instances, your configuration can cause
more resource usage (more VLAN groups). For example, share Port-Channel1.2, 3, and 4 with instances
1, 2, and 3 (one VLAN group) instead of sharing Port-Channel1.2 and 3 with instances 1 and 2, while
sharing Port-Channel1.3 and 4 with instance 3 (two VLAN groups).
Figure 3: Good: Sharing Multiple Subinterface Groups on One Parent
2. Fair—Share subinterfaces across parents.
For example, share Port-Channel1.2, Port-Channel2.3, and Port-Channel3.4 instead of Port-Channel2,
Port-Channel4, and Port-Channel4. Although this usage is not as efficient as only sharing subinterfaces
on the same parent, it still takes advantage of VLAN groups.
