Cisco SNS 3400 Series User Manual

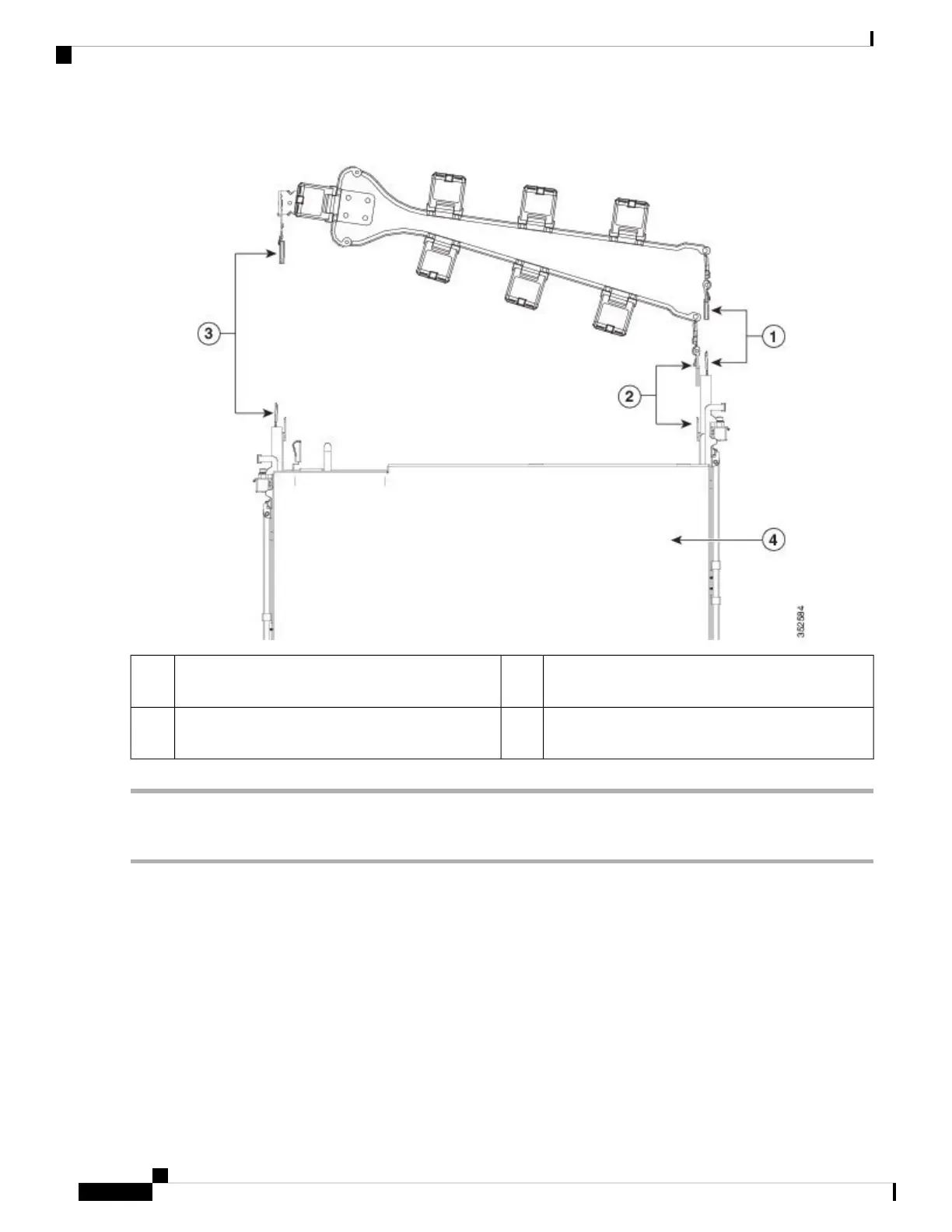

Figure 8: Attach the Cable Management Arm to the Rear of the Slide Rails
CMA tab on width-adjustment slider and end of
stationary outer slide rail
3CMA tab on arm farthest from server and end of
stationary outer slide rail
1
Rear of server4CMA tab on arm closest to the server and end of
inner slide rail attached to server
2
Reverse the Cable Management Arm (Optional)
Step 1 Rotate the entire CMA assembly 180 degrees. The plastic cable guides must remain pointing upward.
Step 2 Flip the tabs at the end of each CMA arm so that they point toward the rear of the server.
Step 3 Pivot the tab that is at the end of the width-adjustment slider. Depress and hold the metal button on the outside of the tab
and pivot the tab 180 degrees so that it points toward the rear of the
Install Cisco ISE Software on Cisco SNS Appliances
18
Install Cisco ISE Software on Cisco SNS Appliances
Reverse the Cable Management Arm (Optional)
