Console Cable

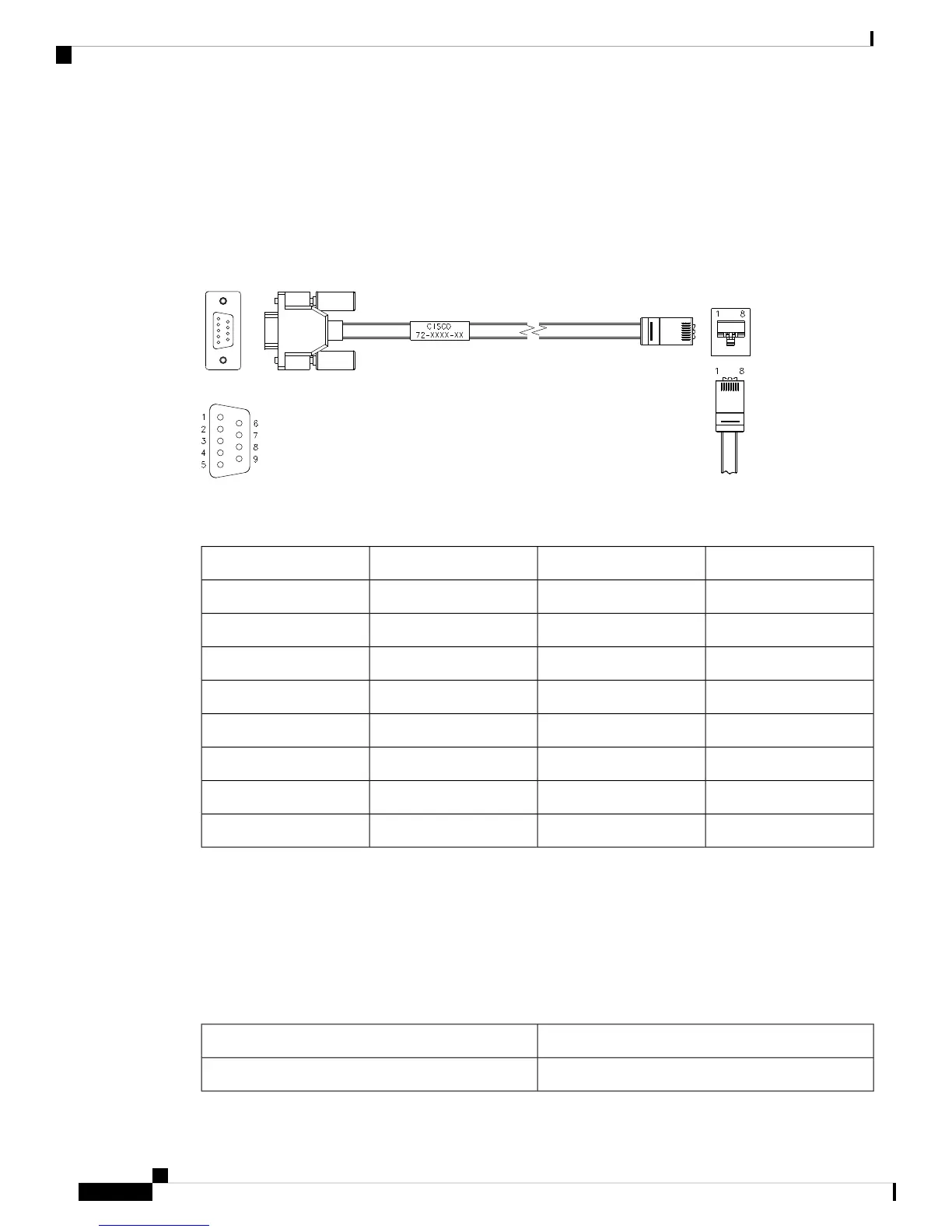

The console cable has an RJ-45 connector on one end and a DB9 connector on the other; this cable is used to
connect into the RS-232 console connection on a laptop.
Console Cable
187491
Table 17: Console Cable Connector Pinouts
Signal NameP2, DB-9 PinsP1, P1-45 PinsSignal Name
CTS81RTS
DSR62DTR
ZXD23TXD
GND54GND
GND55GND
TXD36ZXD
DTR47DSR
RTS78CTS
Console Port
The console port is an asynchronous RS-232 serial port with an RJ-45 connector.
The table below lists the pinouts for the console port on the Cisco UCS 6454 Fabric Interconnect.
Table 18: Console Port Pinouts
SignalPin
RTS1
Cisco UCS 6300 Series Fabric Interconnect Hardware Installation Guide
62
Cable and Port Specifications
Console Cable

Cisco UCS 6332 Specifications

General

Switching Capacity	2.56 Tbps
Form Factor	1 RU
Product Type	Fabric Interconnect
Input Voltage	100-240 VAC
Management	Cisco UCS Manager
Power Supply	Dual hot-swappable power supplies
Jumbo Frame Support	Supported
Fans	4 hot-swappable fans
Latency	Less than 1 microsecond
