Cisco UCS B200 M3 Blade Server
CONFIGURING the SERVER
35
ORDER OPTIONAL KVM LOCAL I/O CABLE*
The KVM local I/O cable ships with every UCS 5100 Series blade server chassis accessory kit. The KVM local
I/O cable provides a connection into the server, providing a DB9 serial connector, a VGA connector for a
monitor, and dual USB ports for a keyboard and mouse. With this cable, you can create a direct connection
to the operating system and the BIOS running on the server.
The KVM local I/O cable ordering information is listed in Table 23.

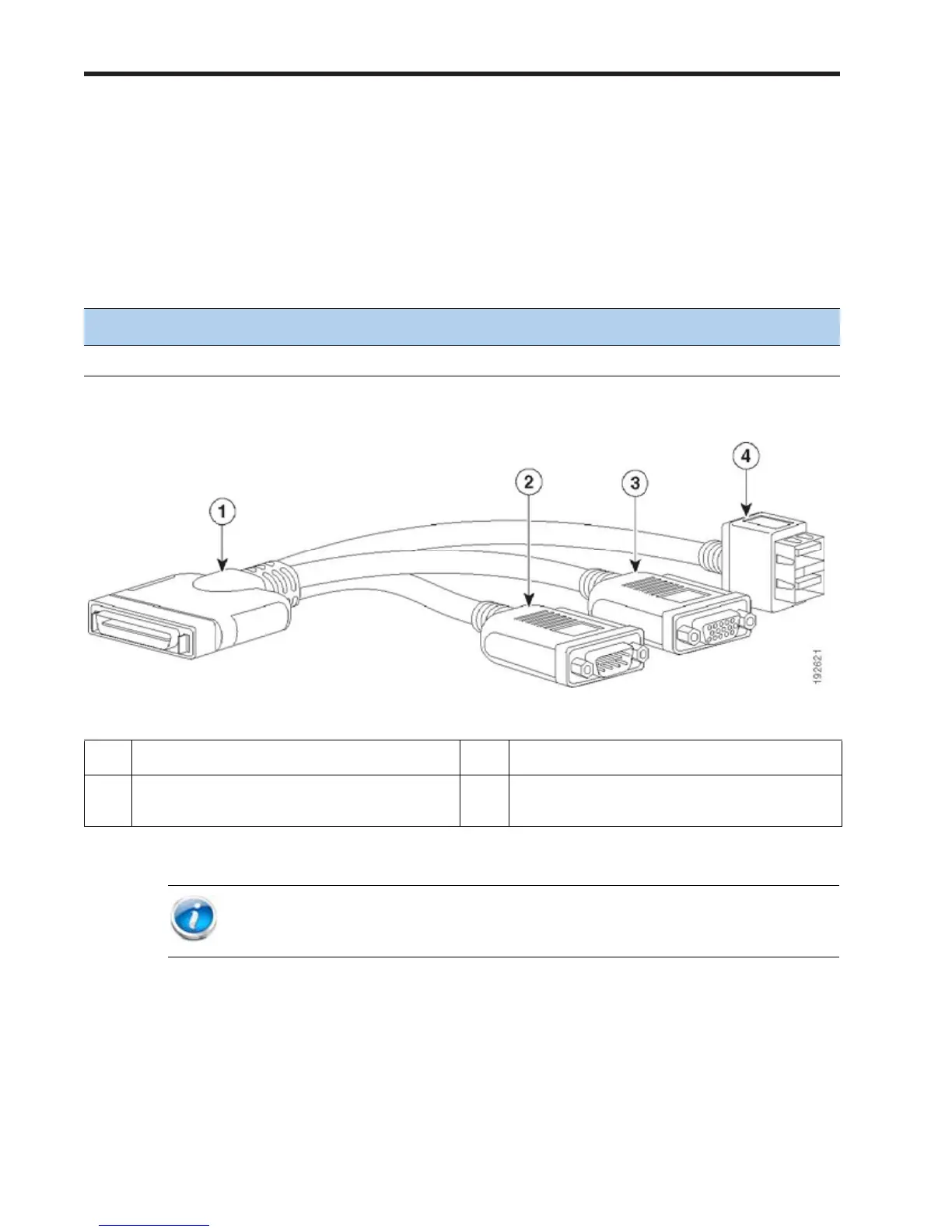

Figure 4 KVM Local I/O Cable
Table 23 KVM Local I/O Cable
Product ID (PID) PID Description
N20-BKVM= KVM local IO cable for UCS servers console port
1 Connector (to server front panel) 3 VGA connector (for a monitor)
2 DB-9 serial connector 4 Two-port USB connector (for a mouse and
keyboard)
NOTE: *The blade chassis ships with the KVM local I/O cable.

Cisco UCS B200 M3 Specifications

General

System bus rate	8 GT/s
Processor family	Intel
Processor socket	LGA 2011 (Socket R)
Intel Xeon series	E5-2600
Motherboard chipset	Intel C600
Compatible processor series	Intel® Xeon®
Number of processors supported	2
ECC	Yes
Memory form factor	240-pin DIMM
Number of DIMM slots	24
Supported memory types	DDR3-SDRAM
Maximum internal memory	768 GB
RAID levels	0, 1
Storage drive sizes supported	2.5 \
Supported storage drive interfaces	Serial Attached SCSI (SAS), Serial ATA III
USB 2.0 ports quantity	0
On-board graphics card model	Matrox G200
Chassis type	-
Product color	Silver
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	5 - 93 %
Harmonized System (HS) code	84714100

Weight and Dimensions

Depth	620 mm
Width	203 mm
Height	50 mm
Weight	4360 g
