Cisco UCS B200 M3 Blade Server
62
SUPPLEMENTAL MATERIAL
Connectivity using the Cisco UCS 2104XP Fabric Extender

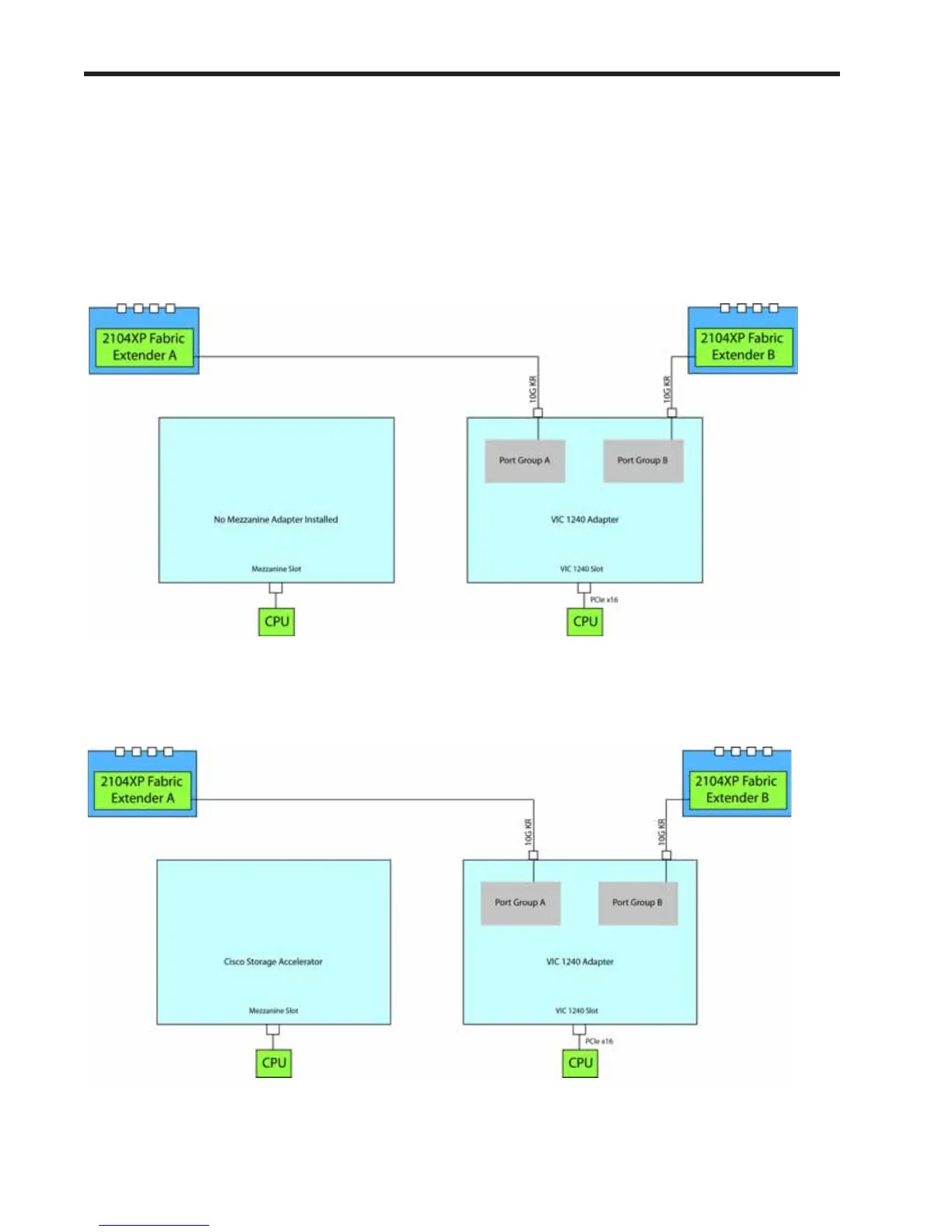

The options shown in Figure 25 and Figure 26 demonstrate how the UCS B200 M3 blade server connects to
a UCS 2104XP Fabric Extender. With this option, the mezzanine connector can either be empty or contain an
independent Cisco Storage Accelerator adapter that communicates with CPU 2 through the PCIe bus.
In Figure 25, one port from the VIC 1240 is channeled to 2104XP Fabric Extender A and one is channeled to
2104XP Fabric Extender B. The result is 10 Gbps of bandwidth to each Fabric Extender. With this option, no
adapter is located in the mezzanine connector.
Figure 25 Option 1 - VIC 1240 to UCS 2104XP Fabric Extender (no mezzanine adapter)
In Figure 26, one port from the VIC 1240 is channeled to 2104XP Fabric Extender A and one is channeled to
2104XP Fabric Extender B. The result is 10 Gbps of bandwidth to each Fabric Extender. The Cisco Storage
Accelerator adapter is located in the mezzanine connector as an independent device controlled by CPU 2.
Figure 26 Option 2 - VIC 1240 to UCS 2104XP Fabric Extender (Cisco Storage Accelerator installed)

Cisco UCS B200 M3 Specifications

General

System bus rate	8 GT/s
Processor family	Intel
Processor socket	LGA 2011 (Socket R)
Intel Xeon series	E5-2600
Motherboard chipset	Intel C600
Compatible processor series	Intel® Xeon®
Number of processors supported	2
ECC	Yes
Memory form factor	240-pin DIMM
Number of DIMM slots	24
Supported memory types	DDR3-SDRAM
Maximum internal memory	768 GB
RAID levels	0, 1
Storage drive sizes supported	2.5 \
Supported storage drive interfaces	Serial Attached SCSI (SAS), Serial ATA III
USB 2.0 ports quantity	0
On-board graphics card model	Matrox G200
Chassis type	-
Product color	Silver
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	5 - 93 %
Harmonized System (HS) code	84714100

Weight and Dimensions

Depth	620 mm
Width	203 mm
Height	50 mm
Weight	4360 g
