Cisco UCS B200 M3 Blade Server
SUPPLEMENTAL MATERIAL
61
In Figure 23, one port from the VIC 1240 is channeled to 2204XP Fabric Extender A and one is channeled to
2204XP Fabric Extender B. The Port Expander Card for VIC 1240 installed in the mezzanine slot acts as a
pass-through device to channel one port to each of the Fabric Extenders. The result is 20 Gbps of bandwidth
to each Fabric Extender.

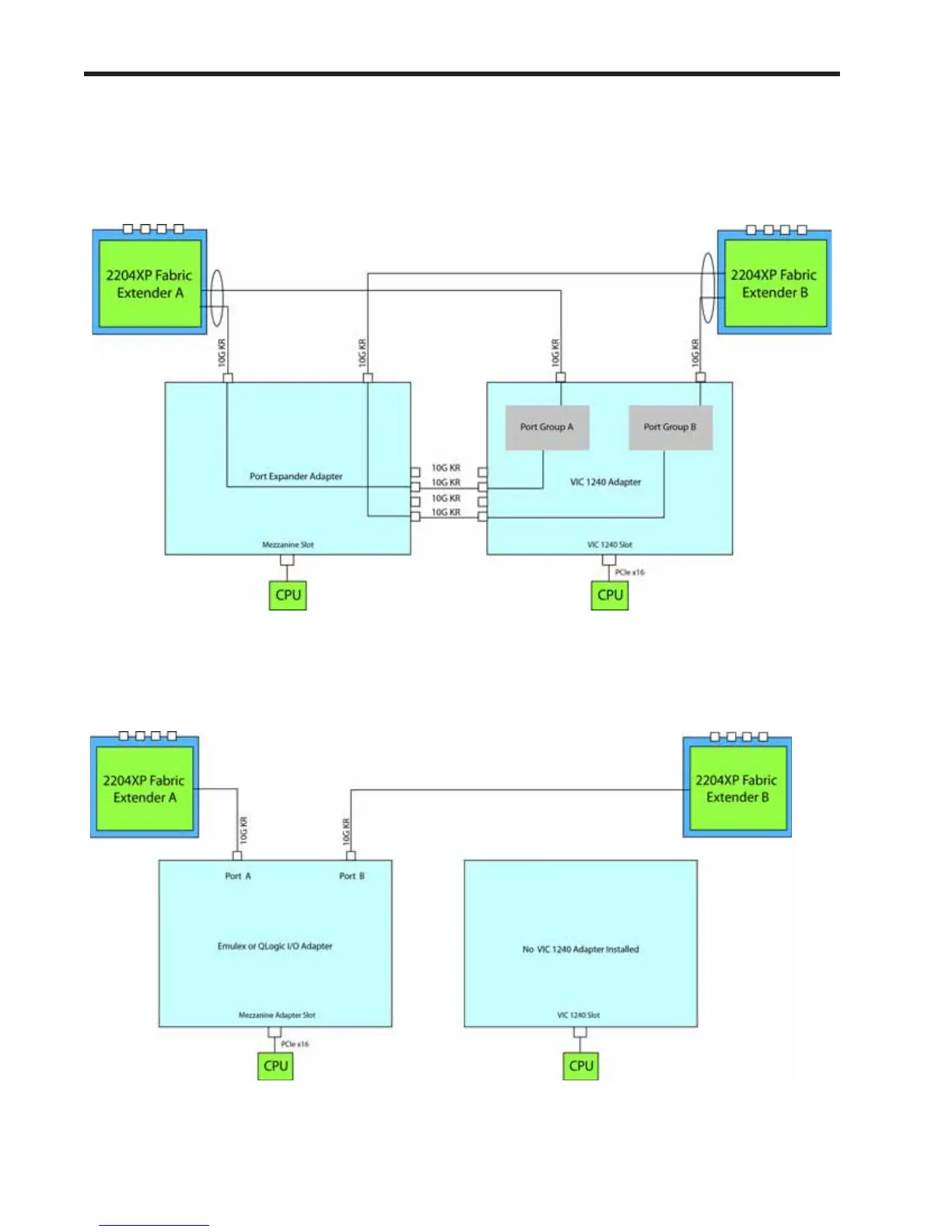

Figure 23 Option 4 - VIC 1240 and Port Expander Card for VIC 1240 to UCS 2204XP Fabric Extender
In Figure 24, there is no VIC 1240 adapter installed. In this case, a network adapter must be installed in the
mezzanine slot. Port A and B of the mezzanine adapter connect to the Fabric Extenders, providing 10 Gbps
per port.
Figure 24 Option 5 - Emulex or QLogic I/O Adapter to UCS 2204XP Fabric Extender (no VIC 1240 adapter)
