CPUs and DIMMs
Physical Layout

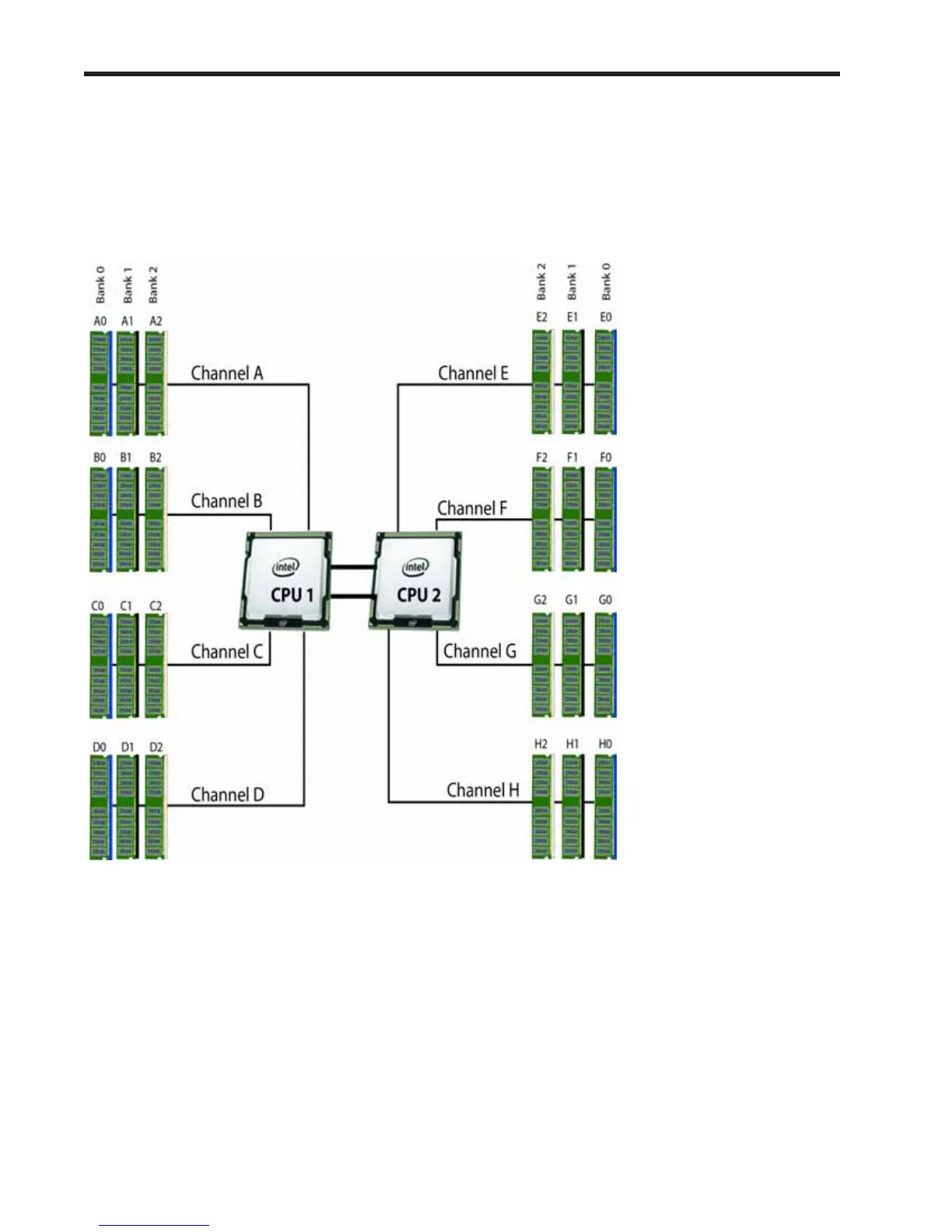

Memory is organized as shown in Figure 6.
Figure 6 UCS B200 M3 Memory Organization
Each CPU controls four memory channels, as follows:
■ CPU1: Channels A, B, C, and D
— Bank 0 - A0, B0, C0, and D0 (blue DIMM slots)
— Bank 1 - A1, B1, C1, and D1 (black DIMM slots)
— Bank 2 - A2, B2, C2, and D2 (white DIMM slots)
■ CPU2: Channels E, F, G, and H
— Bank 0 - E0, F0, G0, and H0 (blue DIMM slots)

Cisco UCS B200 M3 Specifications

General

System bus rate	8 GT/s
Processor family	Intel
Processor socket	LGA 2011 (Socket R)
Intel Xeon series	E5-2600
Motherboard chipset	Intel C600
Compatible processor series	Intel® Xeon®
Number of processors supported	2
ECC	Yes
Memory form factor	240-pin DIMM
Number of DIMM slots	24
Supported memory types	DDR3-SDRAM
Maximum internal memory	768 GB
RAID levels	0, 1
Storage drive sizes supported	2.5 \
Supported storage drive interfaces	Serial Attached SCSI (SAS), Serial ATA III
USB 2.0 ports quantity	0
On-board graphics card model	Matrox G200
Chassis type	-
Product color	Silver
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	5 - 93 %
Harmonized System (HS) code	84714100

Weight and Dimensions

Depth	620 mm
Width	203 mm
Height	50 mm
Weight	4360 g
