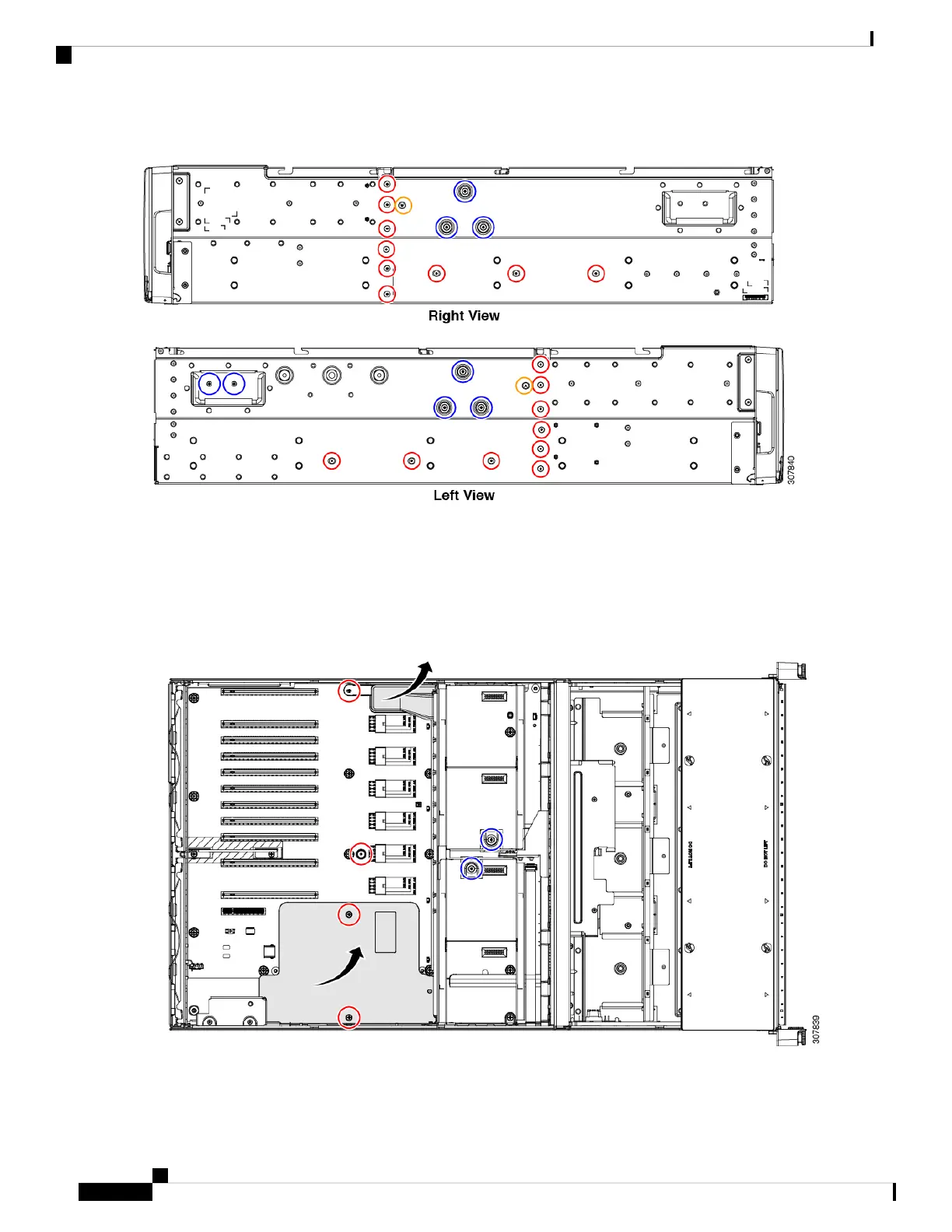

Figure 51: Location of Exterior Mounting Screws (Horizontal View)
Step 2 Remove the top-level screws and fobs.
a) Using a screwdriver, rotate each of the screws counter clockwise until it disengages.
b) When all screws are removed, grasp the plastic fobs and remove them by hand.
The following image shows the locations of the screws and components.
Figure 52: Locations of Mounting Screws and Components (Top Down View)
Step 3 Continue disassembly.
Maintaining the Server
102
Maintaining the Server
Recycling the PCB Assembly (PCBA)
