b) Remove the top cover from the server as described in Removing the Server Top Cover, on page 9.
c) Grasp and squeeze the fan module release latches on its top. Lift straight up to disengage its connector from the
motherboard.
Step 2 Install a new fan module:
a) Set the new fan module in place. The arrow printed on the top of the fan module should point toward the rear of the
server.
b) Press down gently on the fan module to fully engage it with the connector on the motherboard.
c) Replace the top cover to the server.
d) Replace the server in the rack.

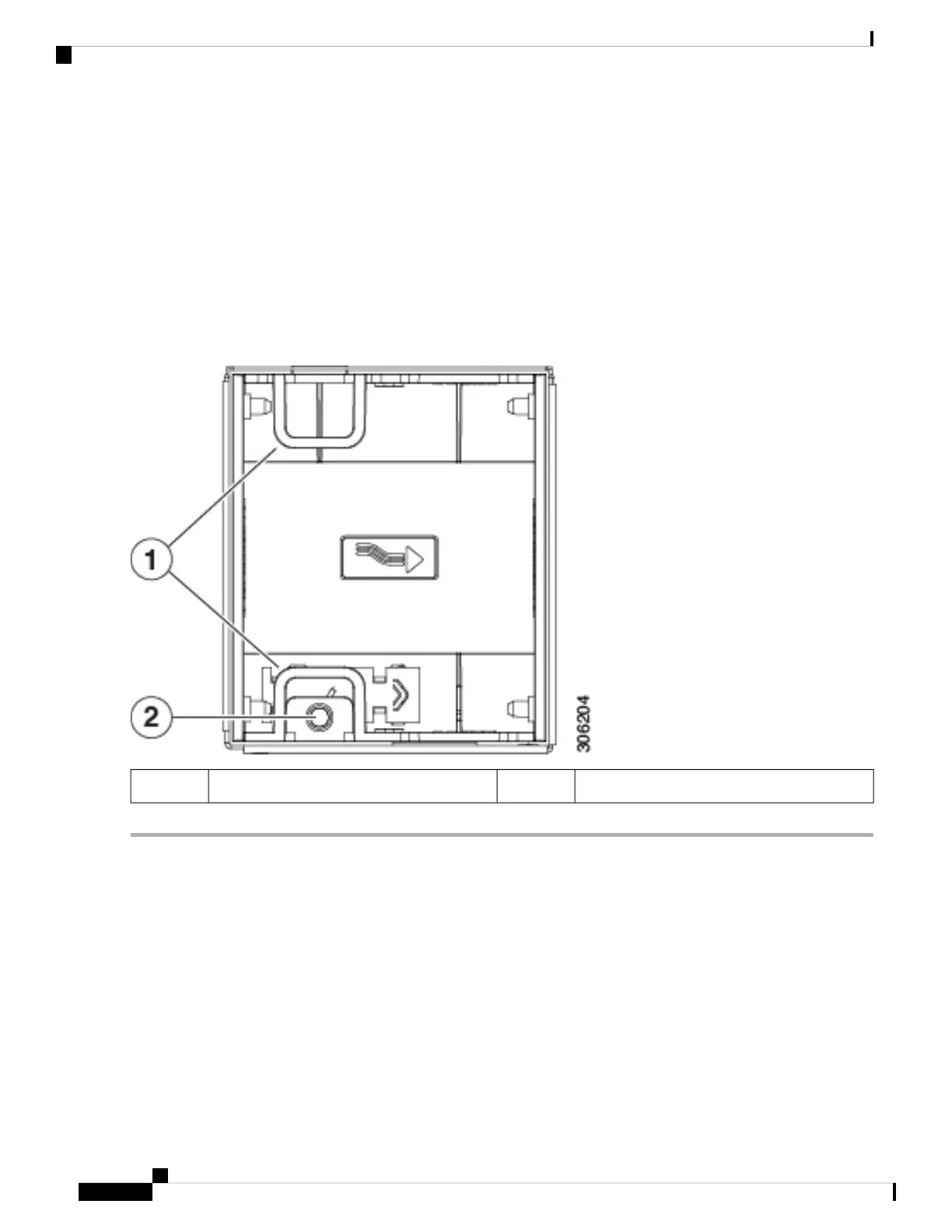

Figure 26: Top View of Fan Module
Fan module fault LED2Fan module release latches1
Replacing an Internal USB Drive
This section includes procedures for installing a USB drive and for enabling or disabling the internal USB
port.
Replacing a USB Drive
The server has one horizontal USB 2.0 socket on the motherboard.
Maintaining the Server
54
Maintaining the Server
Replacing an Internal USB Drive
