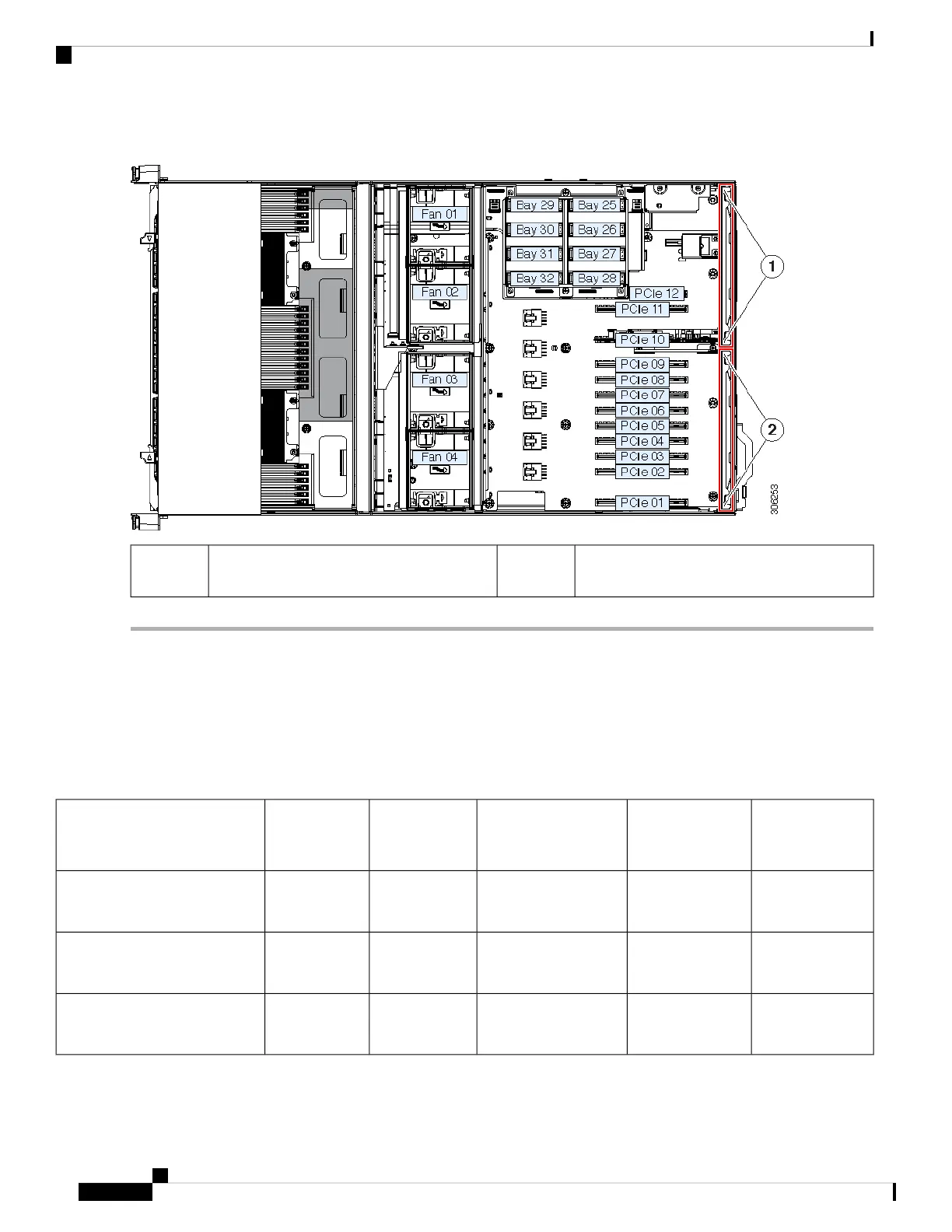

Figure 32: PCIe Slot Hinged Retainer Bars
Wire locking latches for right PCIe retainer bar
(slots 1 - 9)
2Wire locking latches for left PCIe retainer bar
(slots 10 - 12)
1
Cisco Virtual Interface Card (VIC) Considerations
This section describes VIC card support and special considerations for this server.
If you want to use the Cisco UCS VIC card for Cisco UCS Manager integration, see also the Installation For
Cisco UCS Manager Integration for details about supported configurations, cabling, and other requirements.
Table 4: VIC Support and Considerations in This Server
Minimum Cisco
IMC Firmware
Primary Slot For
Cisco Card NIC
Mode
Primary Slot For
Cisco UCS Manager
Integration
Slots That
Support the
VIC
How Many
Supported in
Server
VIC
3.1(2)PCIe 1PCIe 1PCIe 1 - 88Cisco UCS VIC 1385
UCSC-PCIE-C40Q-03
4.0(1)PCIe 1PCIe 1PCIe 1 - 88Cisco UCS VIC 1455
UCSC-PCIE-C25Q-04
4.0(2)PCIe 1PCIe 1PCIe 1 - 88Cisco UCS VIC 1495
UCSC-PCIE-C100-04
• The primary slot for a VIC card is slot 1; the secondary slot for a VIC card is slot 2.
Maintaining the Server
66
Maintaining the Server
Cisco Virtual Interface Card (VIC) Considerations
