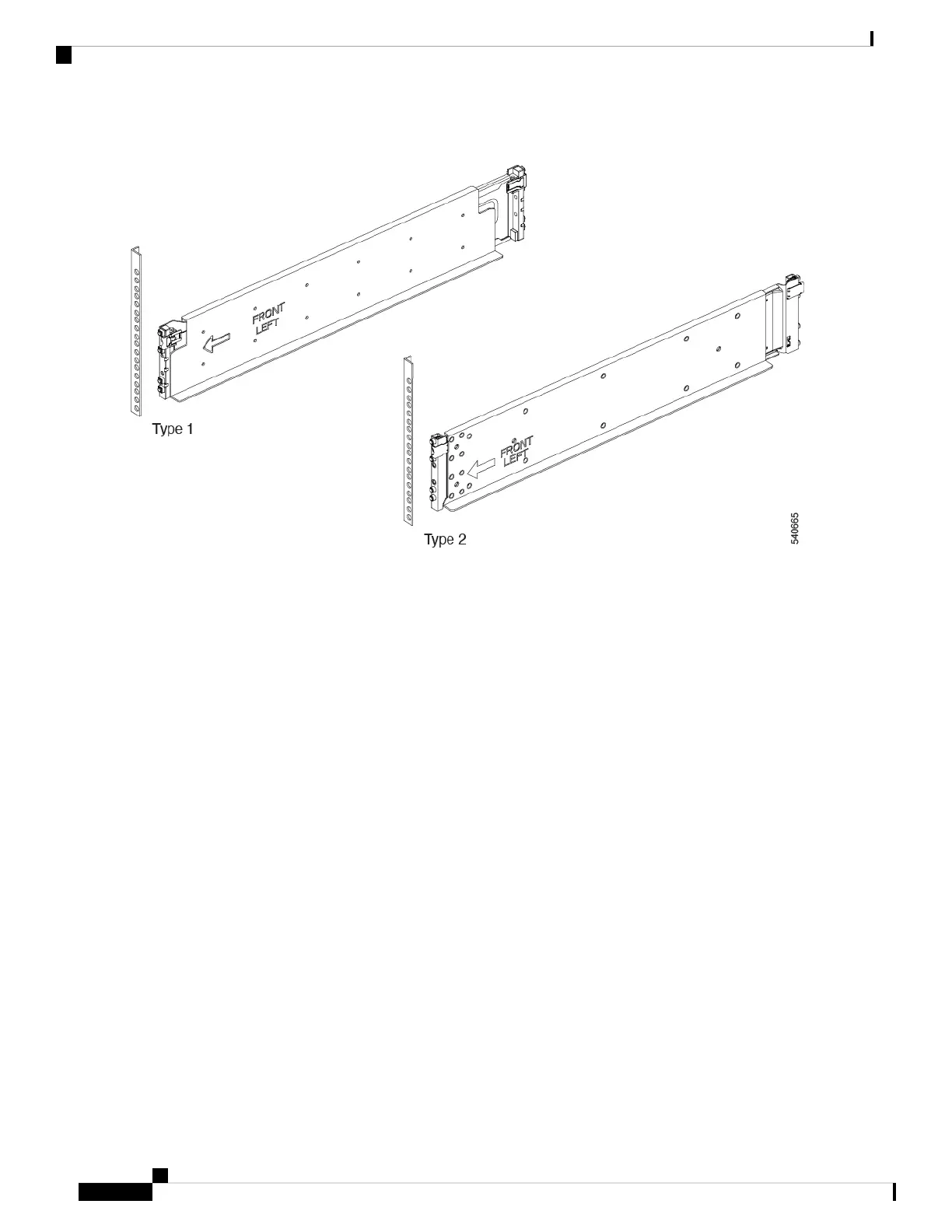

Figure 8: Install Rails into Front of the Rack
Step 5 (Optional) Use a tape measure and level to verify that the rack rails are horizontal and at the same height.
Step 6 At the front of the rack, refer to the template, then insert a screw in each front rail to secure each rail to the rack at the
correct location.
Installation
24
Installation
Installing the Rails, Round-Hole Rack
