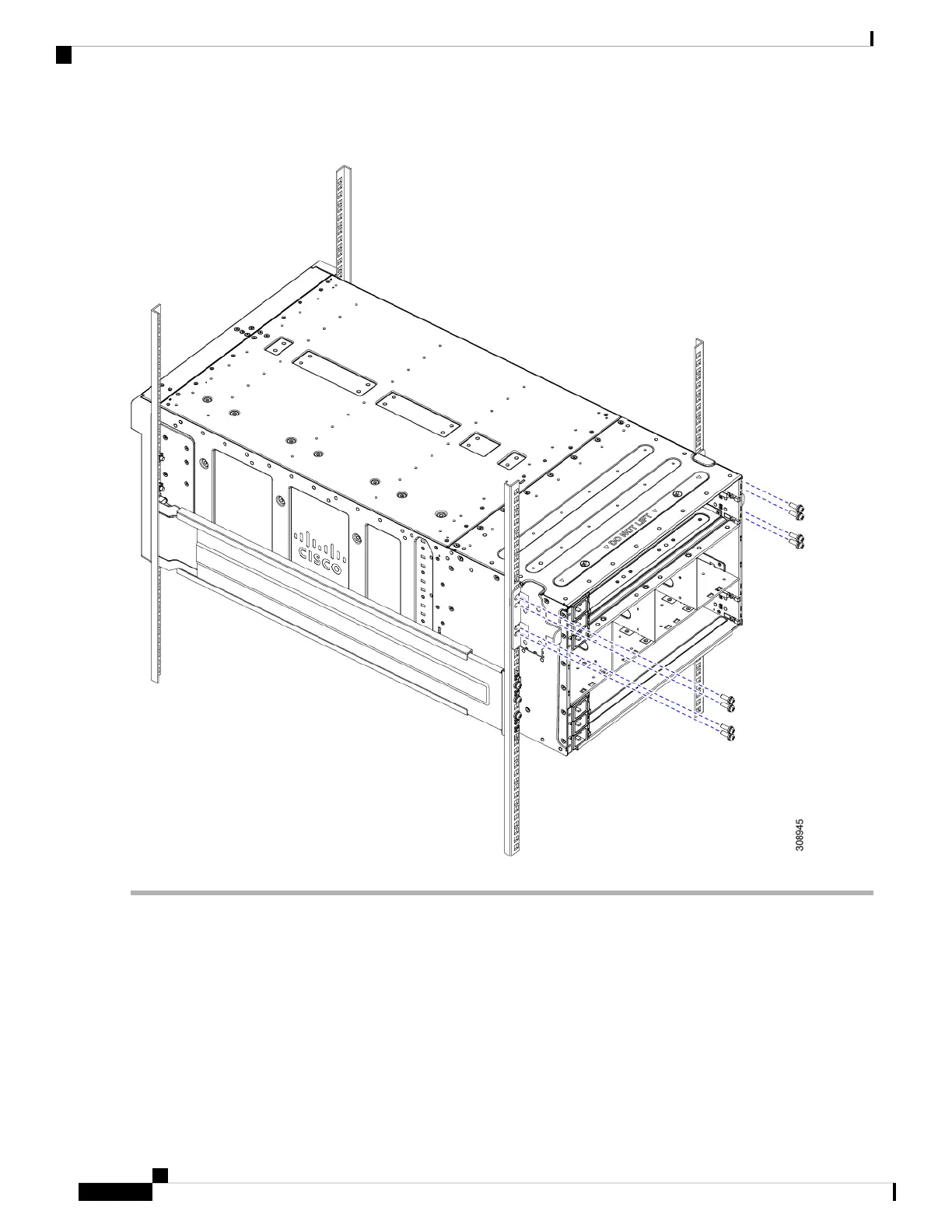

Figure 24: Securing the Rear of the Chassis to the Rack
What to do next
Complete installing the chassis into the rack. Go to Completing Installation, on page 44.
Installing Rear Mounting Brackets, Round-Hole Rack
Use this procedure to install the rear mounting (tie down) brackets (UCSX-9508-RACKBK) for a chassis that
is not pre-installed in a rack.
Installation
42
Installation
Installing Rear Mounting Brackets, Round-Hole Rack
