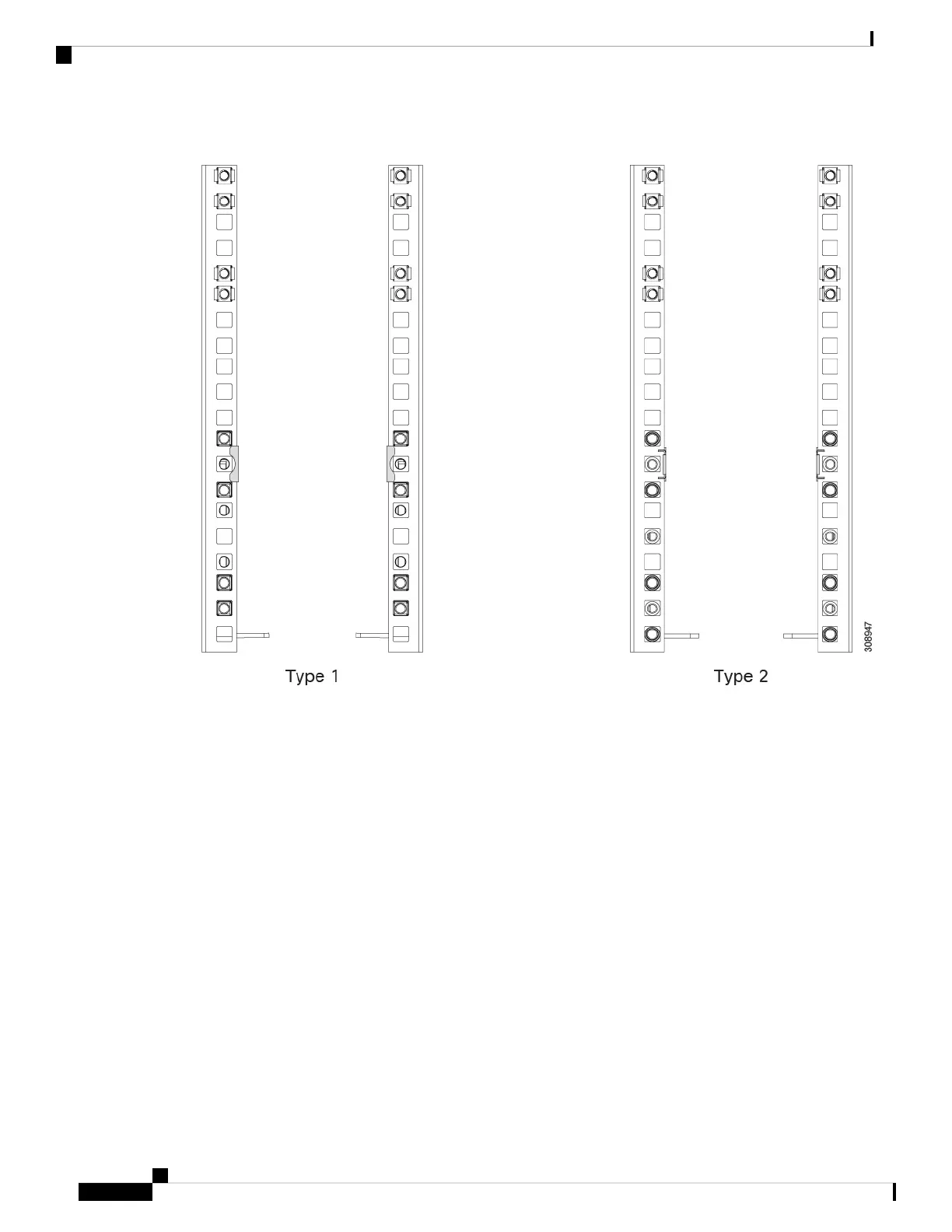

Figure 12: Rear Rail Kit Layout, Both Rail Kits
Rail Installation Layout, Round-Hole Rack
Before installing the chassis in the rack, compare the rail installation in the rack against the following layout
images. If the rail installation is different than what is shown in each layout, remove the rails and reinstall
them.
Installation
28
Installation
Rail Installation Layout, Round-Hole Rack
