Chapter 1 Setup
17

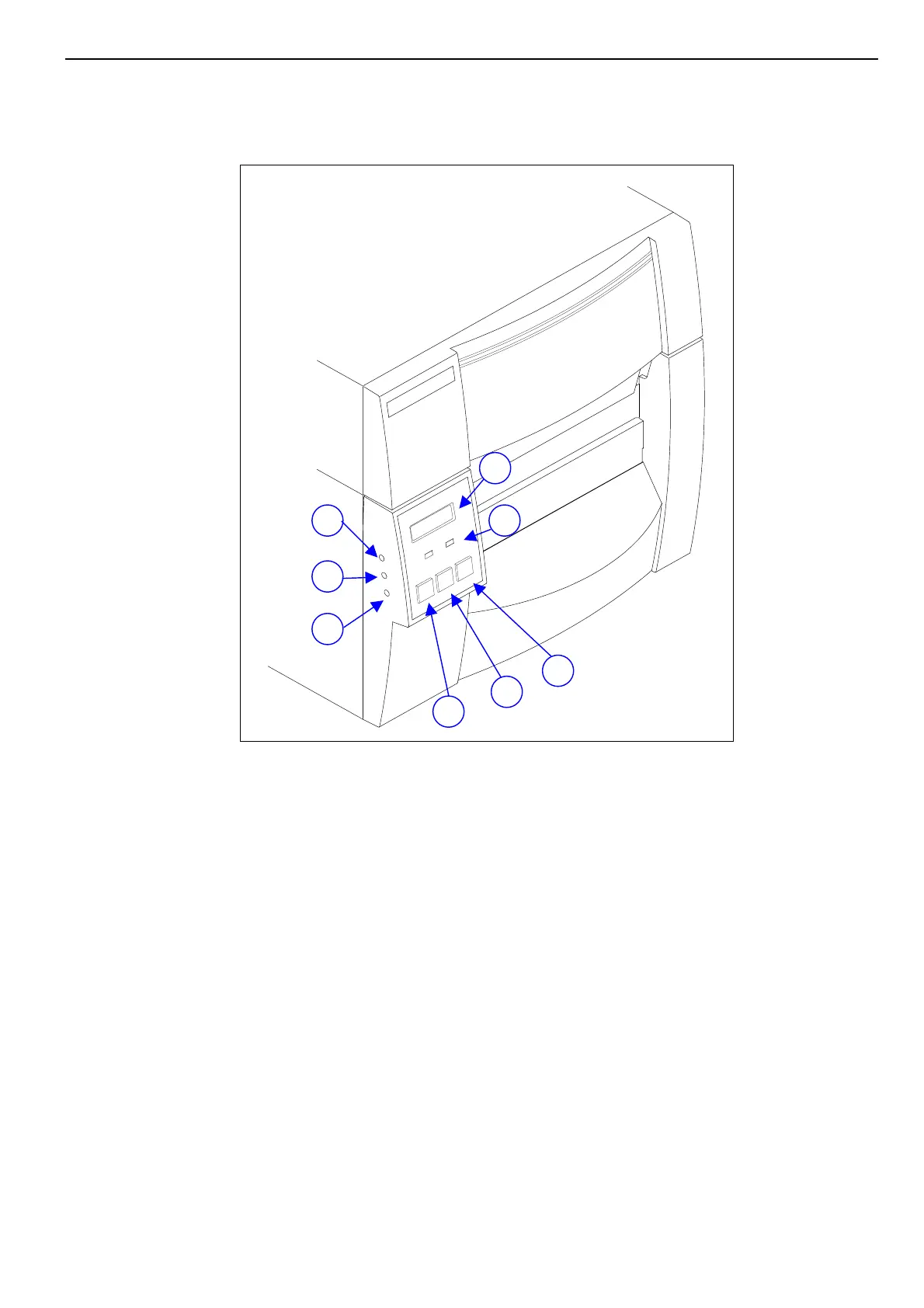

Control panel
(1)
LCD
Displays the current printer status,
configuration settings, or an error message.
(2)
LEDs
One LED is the power indicator and the
other the error indicator.
(3)
PAUSE key
Temporarily pauses printing.
(4)
FEED key
Feeds the media.
(5)
STOP key
Stops the printer operating.
(6)
Media gap adjustment control
To adjust the media gap sensor sensitivity.
(7)
Black mark adjustment control
To adjust the black mark sensor sensitivity.
(8)
LCD contrast adjustment control
To adjust the LCD contrast.
3
1
2
5
4
6
7
8
2 Part Names and Functions
