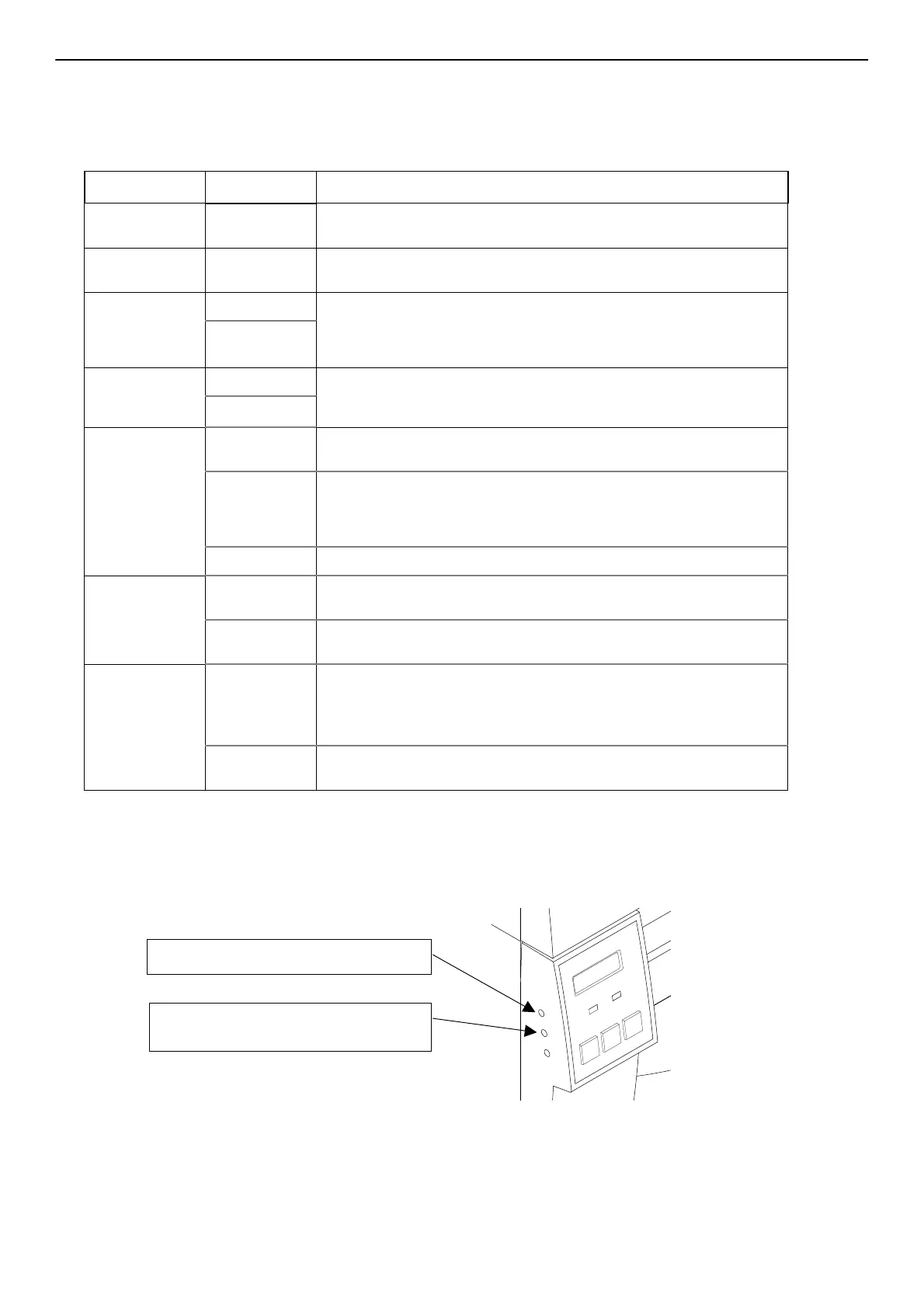

List of Mode Items
Item Indication Description
Baud Rate 9600bps Selection of communication data rate between host computer and printer
when using the RS232C serial interface
Data Length 8Bits Selection of communication data length between host computer and
printer when using the RS232C serial interface
NativeOn Native
Command Mode
NativeOf
Please refer to the command reference manual for a detailed explanation
of the different printer operation in Native On and Native Off modes.
Such changes include the allocated names of the memory modules,
priority of heat over print speed, etc.
fVirtual Media sensor
master position
fReal
Defines default position between sensor and printhead. For use with
legacy systems and should not be needed except in specialist
applications
Cmnd Std Standard Mode. STX (Hex 02) and SOH (Hex01) commands operate as
usual
Cmnd AS4 “AS400” mode. The ~ character acts like the STX command making this
mode idea for use on systems that cannot send unprintable character,
such as AS/400 computer. See the command reference manual for full
details
Command
Mode
CmnD RST
Raster Mode. For specialist applications
AJSensOF Adjustable sensor Off. The front, fixed sensor is used instead of the
adjustable sensor.
Adjustable
Sensor
Enable/Disable
AJSensON
The rear, adjustable sensor is used to detect media. This sensor is
standard on the CLP 7201e but optional on the CLP 7202e.
PE *.**V Shows current value of see-through gap sensor. Adjust this using the
upper adjustment screw and a small Phillips screwdriver.
If you install just the liner material under the sensor (peel off one label)
and adjust the voltage to approx. 3.0 volts for optimum operation.
Voltage Setting
BL *.**V
Shows the current value of the black-line sensor. Adjust this using the
middle screw and a small Phillips screwdriver.
Note: When the printer is switched off and on, the initial values for these menu items selected
by the system maintenance mode will be retrieved from the flash memory.
Media gap sensor adjustment control
Black mark sensor adjustment
control
