Chapter 3 Media and Ribbon
42
4.
(1) Push media against the fixed media guide on the left side.
(2) Guide media positively with the movable media guide.
(3) Align the left top edge of media with the notch of the tearing plate.
5. Holding media so as to ensure it cannot skew, push down the open guide to close it.
6. Push down the green part of the push button to close the printer mechanism; at this
time, continue pushing until it clicks closed.
Note: Make sure the green part of the push button
is pressed properly. Otherwise, the printer
mechanism may fail to close.
7. Close the printer cover.
8. Turn ON the power switch of the printer. The LCD screen on the control panel will
show ‘On Line.’ Then press the FEED key and media will advance to the next label
position and stop.

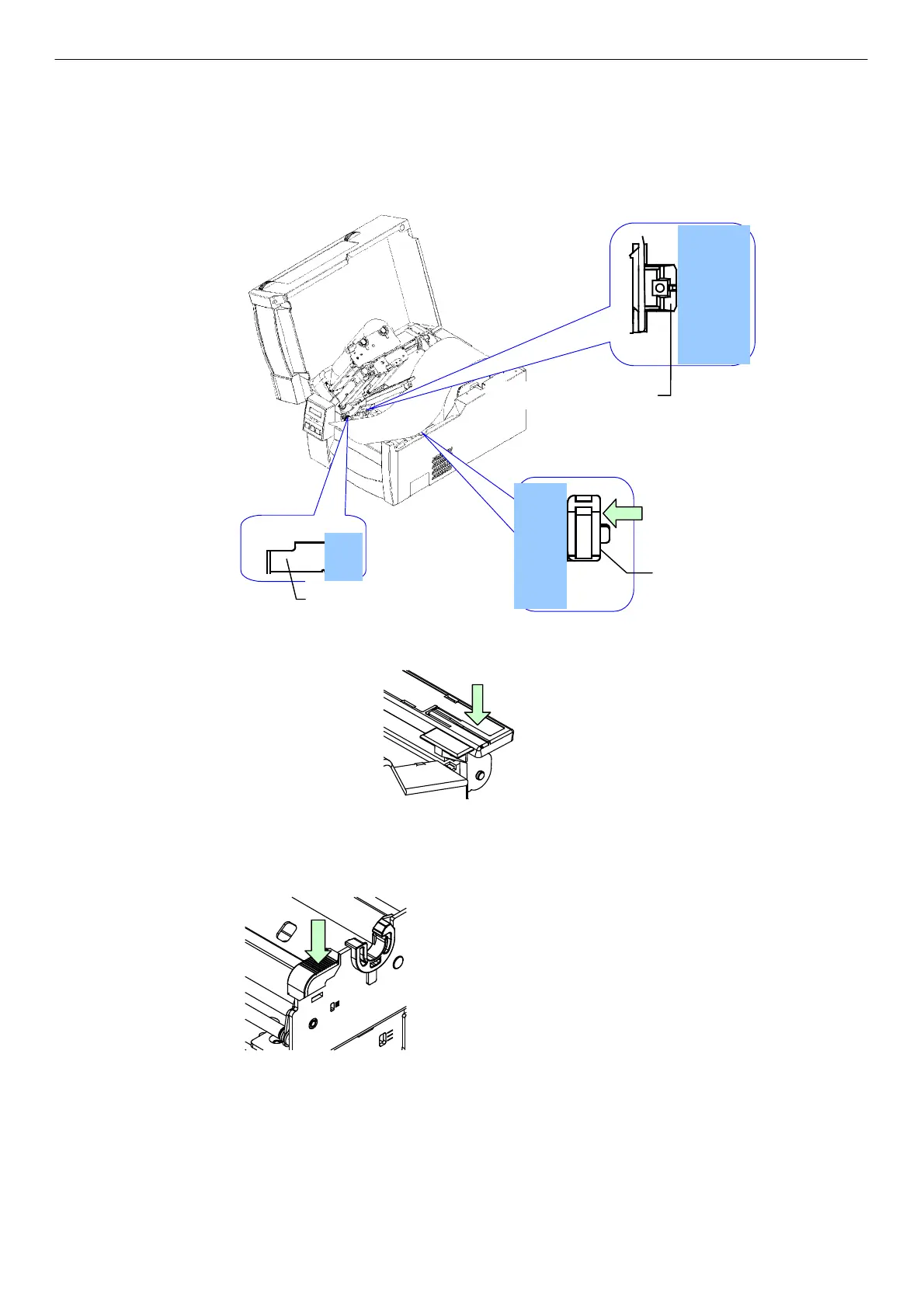

fixed media guide
movable media guide
notch of tearing plate
(1)
(2)
(3)
