CT-S310II Series Service Manual
- 10 -

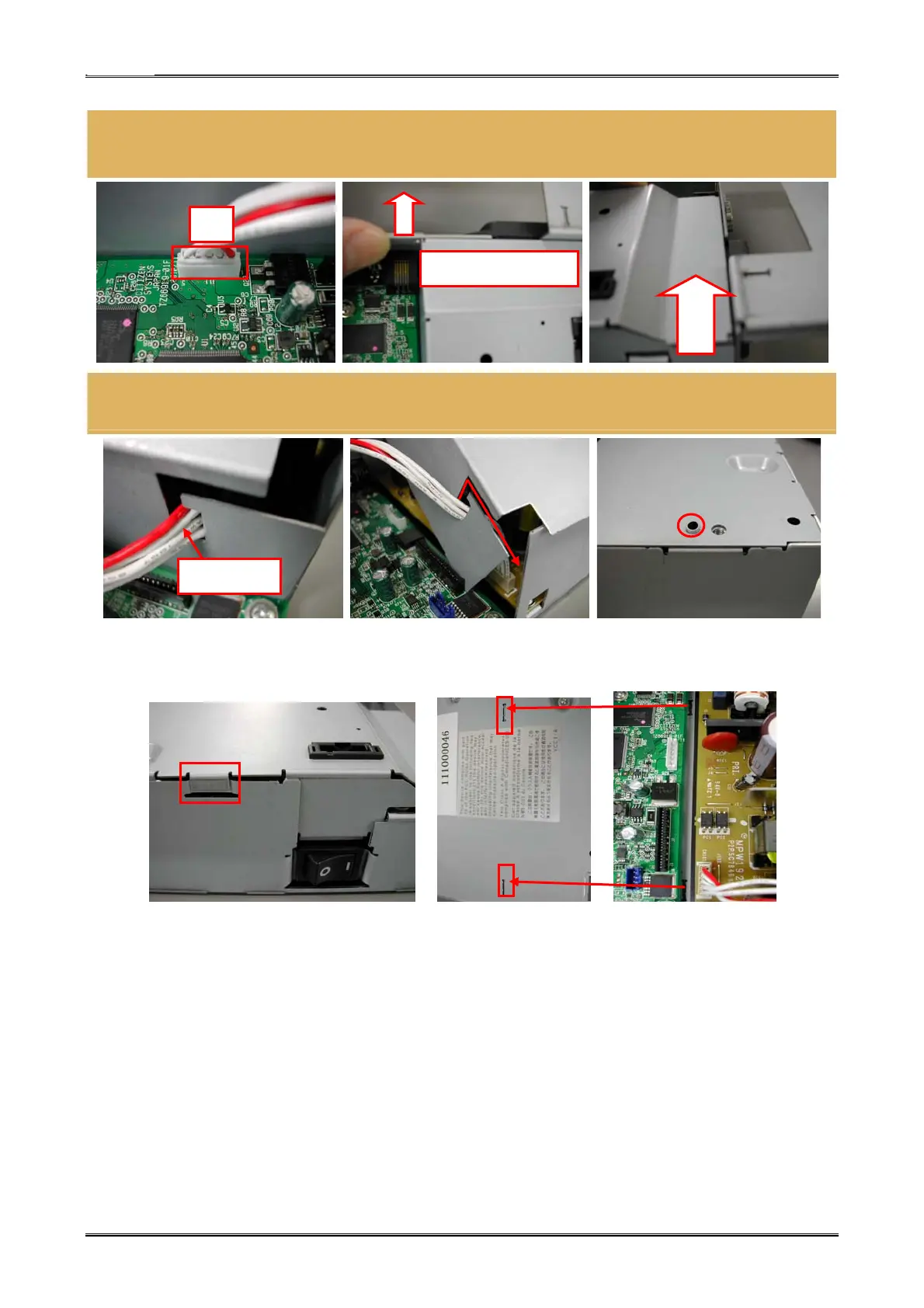

Disconnect the power connector (J11) from “SA, MAIN PCB”.
Push the rear of “FRAME, BOTTOM-03” outwardly and raise “FRAME, MIDDLE-03”.
Before removing “FRAME, MIDDLE-03”, remove the power cable from the notch. When mounting it,
align the hole on the front of “FRAME, MIDDLE-03” with the boss.
<Precaution at reassembly>
Insert lugs at “FRAME, MIDDLE-03” into slots at “FRAME BOTTOM” as shown below.
J11
FRAME, MIDDLE-03
Power cable
