• One 10/100BASE‑T RJ‑45 LOM port
The following figure shows the back panel of the T1120 appliance.

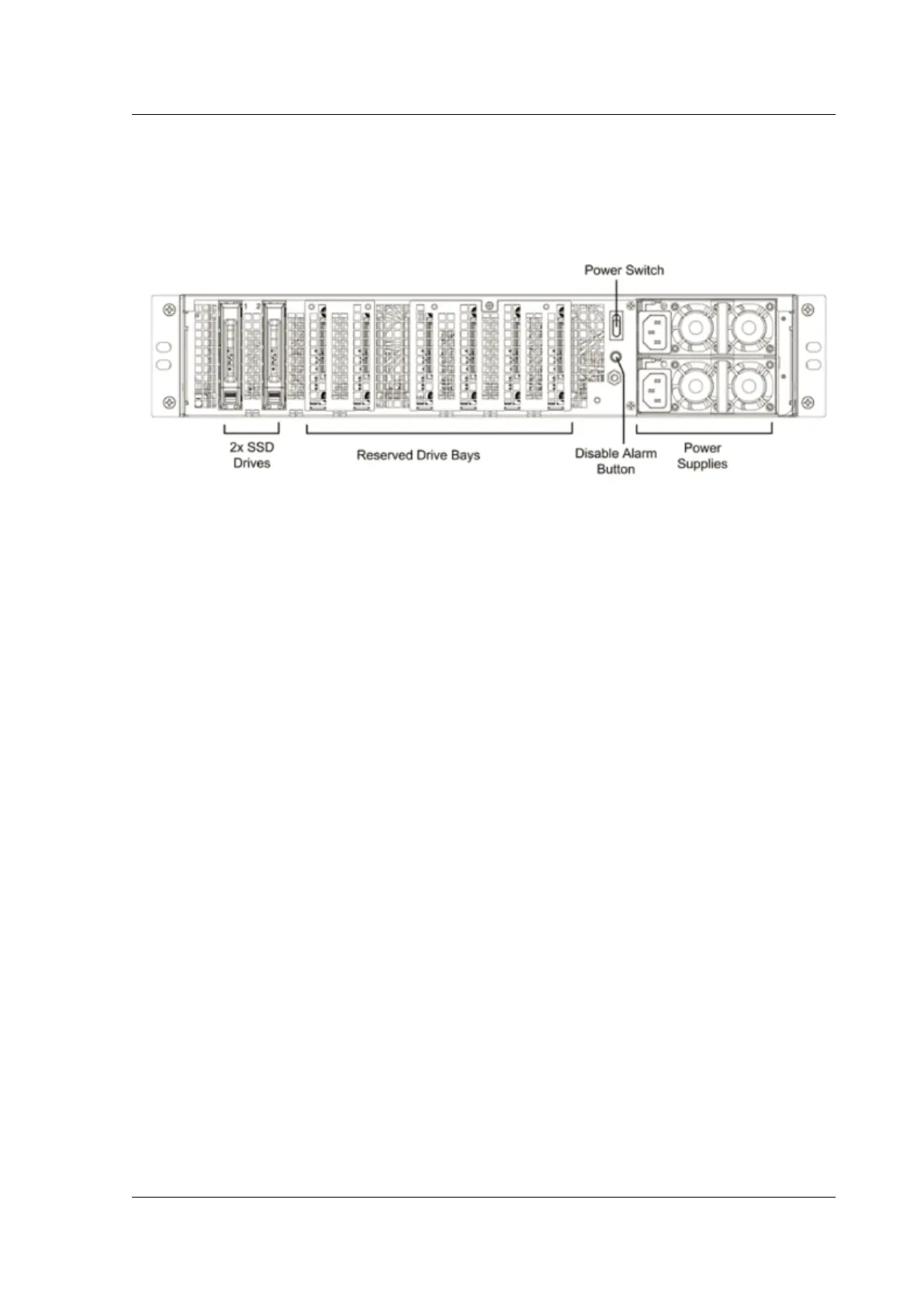

Figure 2. Citrix ADC T1120 back panel
The following components are visible on the back panel of the T1120 appliance:
• 240 GB removable solid‑state drive.
Note: Drive densities might increase as components become EOL but its size is never smaller
than the original.
• Power switch, which turns o power to the appliance, as if you were to unplug the power supply.
Press the switch for less than two seconds to shut o the power.
• Disable alarm button. This button is functional only when the appliance has two power sup‑
plies. Press this button to stop the power alarm from sounding when either of the following
conditions is true:
– You have plugged the appliance into only one power outlet.
– One power supply is malfunctioning, and you want to continue operating the appliance
until it is repaired.
• Two power supplies, each rated at 1000 watts, 100–240 volts. Each power supply has an LED
that indicates the status of the power supply.
For information about installing the rails, rack mounting the hardware, and connecting the cables,
see Installing the Hardware.
For information about performing initial configuration of your appliance, see Initial Configuration.
