Citrix ADC MPX 25100T
September 19, 2022
The Citrix ADC MPX 25100T and 25160T are 2U appliances. Each model has two 10‑core processors
and 128 GB of memory. The MPX 25100T/25160T appliances are available in the thirty‑two 10G SFP+
ports (32x10G SFP+) configuration.
Note: The MPX 25000T appliances are not RAID (redundant array of independent disks) devices.
The following figure shows the front panel of the MPX 25100T/25160T (32x10G SFP+) appliance.

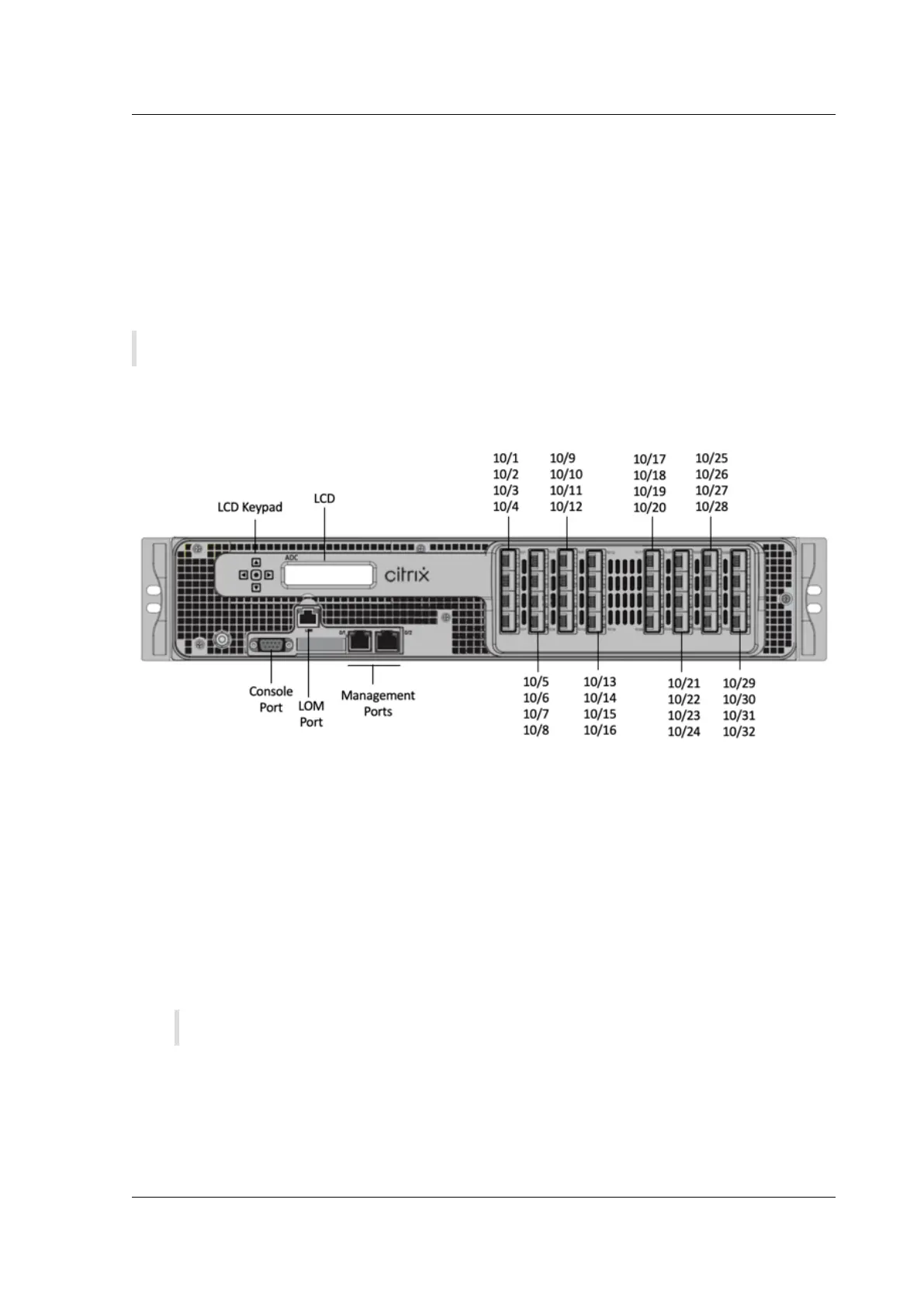

Figure 1. Citrix ADC MPX 25100T/25160T (32x10G SFP+), front panel
Depending on the model, the appliance has the following ports:
• RS232 serial Console Port.
• 10/100Base‑T copper Ethernet Port (RJ45), also called the LOM port. You can use this port to
remotely monitor and manage the appliance independently of the Citrix ADC soware.
• Two 10/100/1000Base‑T copper EthernetManagement Ports(RJ45), numbered 0/1 and 0/2 from
le to right. These ports are used to connect directly to the appliance for system administration
functions.
• Network Ports, thirty‑two 10G SFP+ ports (32x10G SFP+).
Note: The 10G SFP+ ports on these appliances support copper 1G SFP transceivers.
The following figure shows the back panel of the MPX 25100T/25160T appliance.
Figure 2. Citrix ADC MPX 25100T/25160T, back panel
