Citrix ADC MPX User Manual

Citrix ADC MPX
Citrix ADC MPX 22000
September 19, 2022
The Citrix ADC
MPX 22040/22060/22080/22100/22120 are 2U appliances. Each model has two 8‑core processors and
256 GB of memory. The
MPX 22040/22060/22080/22100/22120 appliances are available in two port configurations:
• Twelve 1G SFP ports and twenty‑four 10G SFP+ ports (12x1G SFP + 24x10G SFP+)
• Twenty‑four 10G SFP+ ports (24x10G SFP+)

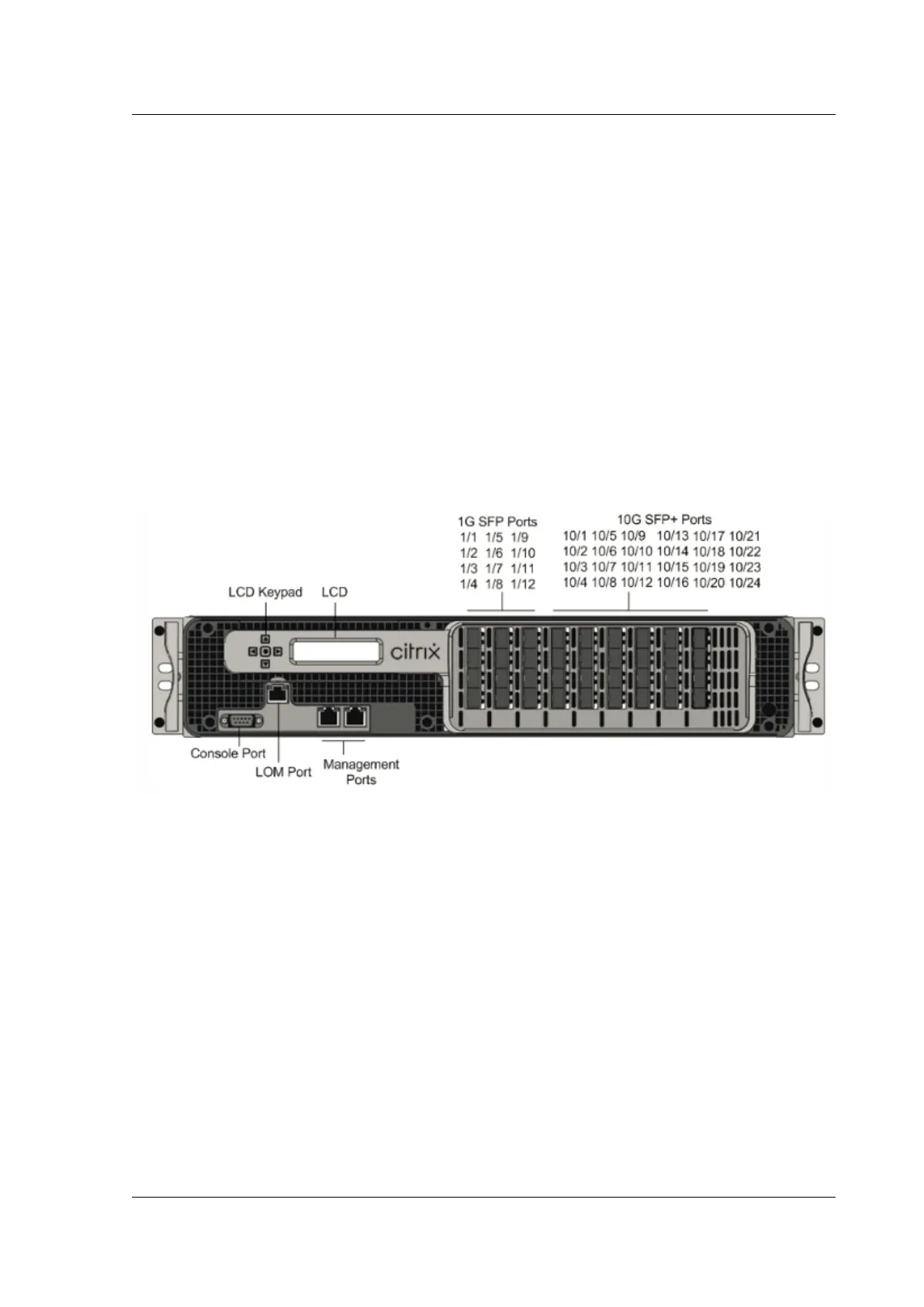

The following figure shows the front panel of the MPX 22040/22060/22080/22100/22120 (12x1G SFP +
24x10G SFP+) appliance.
Figure 1. Citrix ADC MPX 22040/22060/22080/22100/22120 (12x1G SFP + 24x10G SFP+), front panel
The following figure shows the front panel of the MPX 22040/22060/22080/22100/22120 (24x10G SFP+)
appliance.
Figure 2. Citrix ADC MPX 22040/22060/22080/22100/22120 (24x10G SFP+), front panel
© 1999–2023 Cloud Soware Group, Inc. All rights reserved. 76

Citrix ADC MPX Specifications

General

Category	Network Hardware
Type	Application Delivery Controller
Virtualization Support	Yes
Power Supply	Redundant power supplies
High Availability	Yes
Product Series	Citrix ADC
Model	MPX
Ports	Varies by model
Redundancy	Yes
Protocols Supported	HTTP, HTTPS, TCP, SSL, DNS
Security Features	DDoS protection
Operating System	Citrix ADC
