Citrix ADC MPX User Manual

Citrix ADC MPX
activation, use a pen, pencil, or other pointed object. The NMI Button is also available remotely
over the network in the LOM GUI, in the Remote Control menu. For more information about the
lights out management port of the appliance, see Lights out management port of the Citrix ADC
MPX appliance.
Citrix ADC MPX 15000
September 19, 2022
The Citrix ADC MPX 15000 appliance is a 2U appliance. This platform has two 8‑core processors and
128 GB of memory. The appliance provides a total of 16 Ethernet 25G ports.
For information on the soware releases supported on the Citrix ADC hardware platforms, see
Hardware‑Soware Release Matrix.
The following figure shows the front panel of the MPX 15000 series appliances.

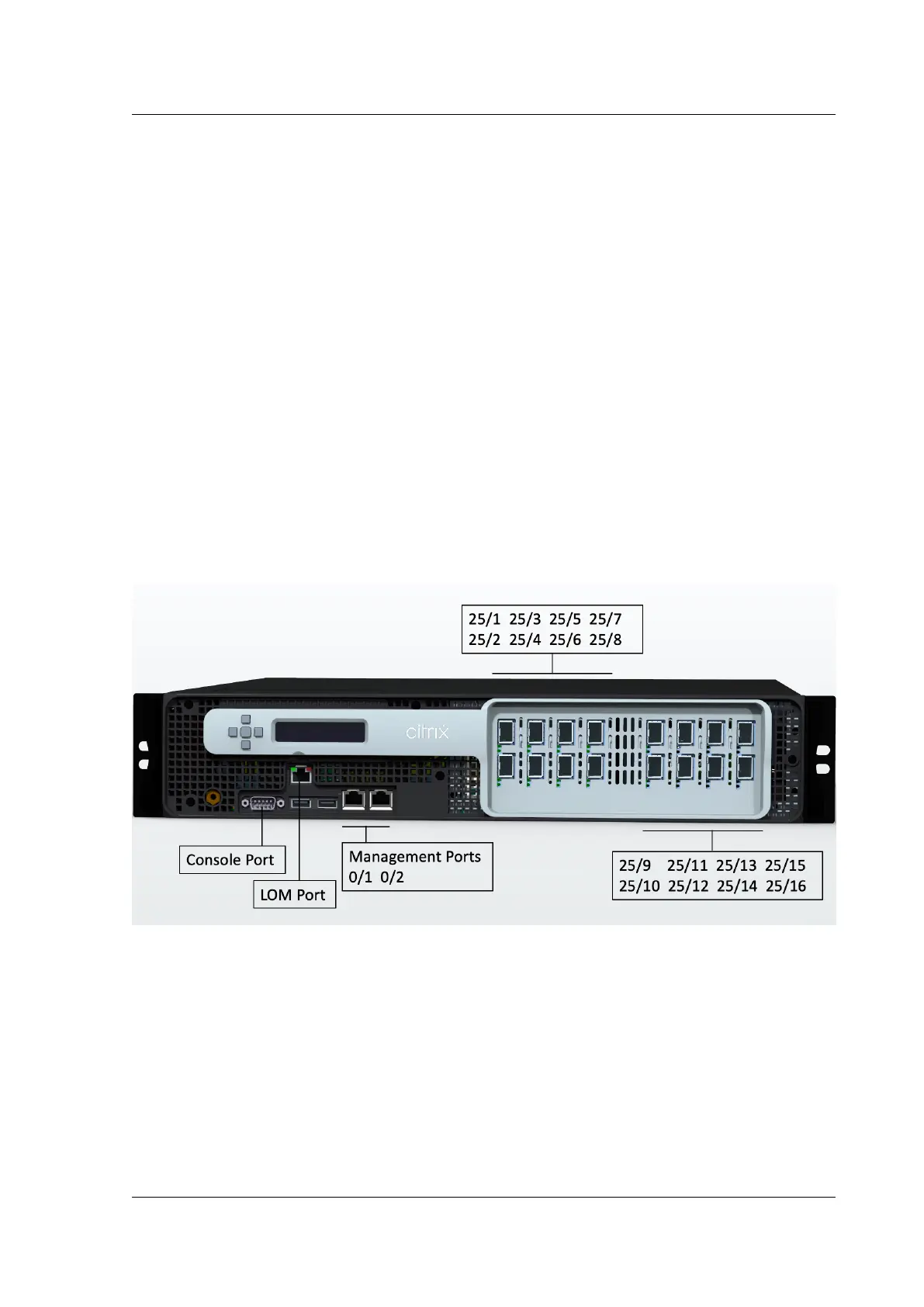

Figure 1. Citrix ADC MPX 15000, front panel
The Citrix ADC MPX 15000 series appliances have the following ports:
• RS232 serial console port.
• Two 10/100/1000Base‑T RJ45 copper Ethernet Management ports, numbered 0/1 and 0/2. This
port is used to connect directly to the appliance for Citrix ADC administration functions.
• One 10/100/1000Base‑T RJ45 copper Ethernet Management Port, numbered 0/1. This port is
used to connect directly to the appliance for Citrix ADC administration functions.
• Sixteen 25G Ethernet ports, numbered 25/1 to 25/16. For information about supported
transceivers per port, see 25G, 40G, 50G, and 100G ports.
© 1999–2023 Cloud Soware Group, Inc. All rights reserved. 61

Citrix ADC MPX Specifications

General

Category	Network Hardware
Type	Application Delivery Controller
Virtualization Support	Yes
Power Supply	Redundant power supplies
High Availability	Yes
Product Series	Citrix ADC
Model	MPX
Ports	Varies by model
Redundancy	Yes
Protocols Supported	HTTP, HTTPS, TCP, SSL, DNS
Security Features	DDoS protection
Operating System	Citrix ADC
