Citrix ADC MPX
Citrix ADC MPX 26000‑100G
September 19, 2022
The Citrix ADC MPX 26000‑100G and MPX 26000T‑100G appliances are 2U appliance. These appliances
have two 14‑coreprocessors and 256 GB of memory. The appliances provide a total of 8 network ports:
Four cards with dual 100G SFP+ Ethernet Ports.
For information about the soware releases supported on the Citrix ADC hardware platforms, see Cit
rix ADC MPX hardware soware compatibility matrix.
The following figure shows the front panel of the Citrix ADC MPX 26000‑100G and Citrix ADC MPX
26000T‑100G appliances.

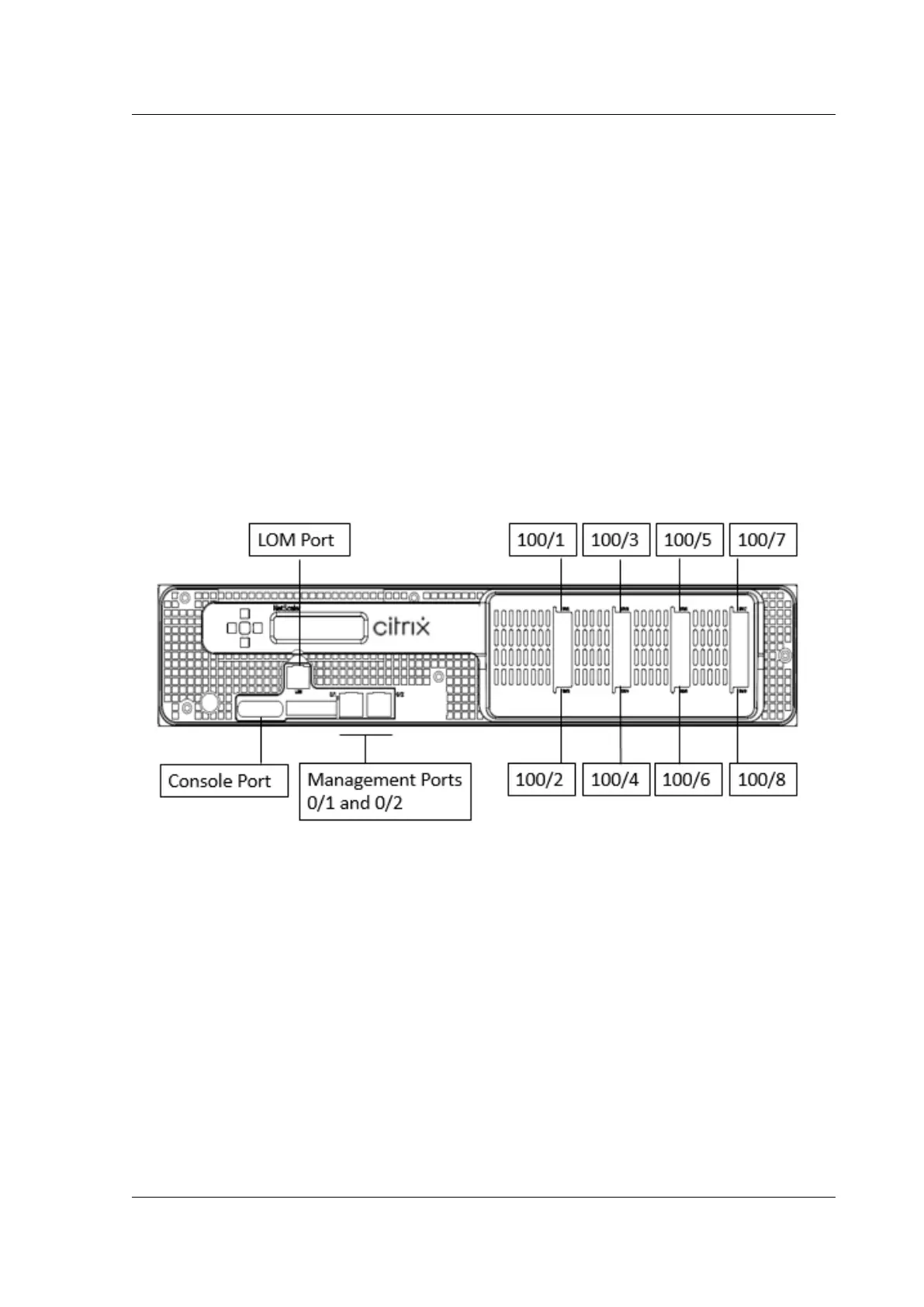

Figure 1. Citrix ADC MPX 26000‑100G and Citrix ADC MPX 26000T‑100G, front panel
The Citrix ADC MPX 26000‑100G and Citrix ADC MPX 26000T‑100G appliances have the following ports:
RS232 serial Console Port.
One 10/100/1000BaseT RJ45 copper Ethernet LOM Port. Use this port to remotely monitor and
manage the appliance independently of the Citrix ADC soware.
Two 10/100/1000BaseT RJ45 copper Ethernet Management Ports, numbered 0/1 and 0/2.
These ports are used to connect directly to the appliance for Citrix ADC administration
functions.
Eight 100G Ethernet Ports, numbered 100/1 to 100/8. For information about supported
transceivers per port, see 25G, 40G, 50G, and 100G ports.
© 19992023 Cloud Soware Group, Inc. All rights reserved. 94
