Citrix ADC MPX
Press this button to silence the power alarm when one of two power supplies loses input power
(second power supply optional) or when a power supply is malfunctioning.
• Non‑Maskable Interrupt (NMI) Button, used at the request of Technical Support to initiate
a core dump. To press this red button, which is recessed to prevent unintentional activation,
use a pen, pencil, or other pointed object. The NMI Button is also available remotely over the
network in the LOM GUI, in the Remote Control menu. For more information about the lights
out management port of the appliance, see Lights out management port of the Citrix ADC MPX
appliance.
Citrix ADC MPX 17500, MPX 19500, and MPX 21500
September 19, 2022
Note: This platform has reached its end of life.
The Citrix ADC models MPX 17500/19500/21500 are 2U appliances. Each model has two 6‑core proces‑
sors and 48 GB of memory.
The following figure shows the front panel of the MPX 17500/19500/21500 appliance.

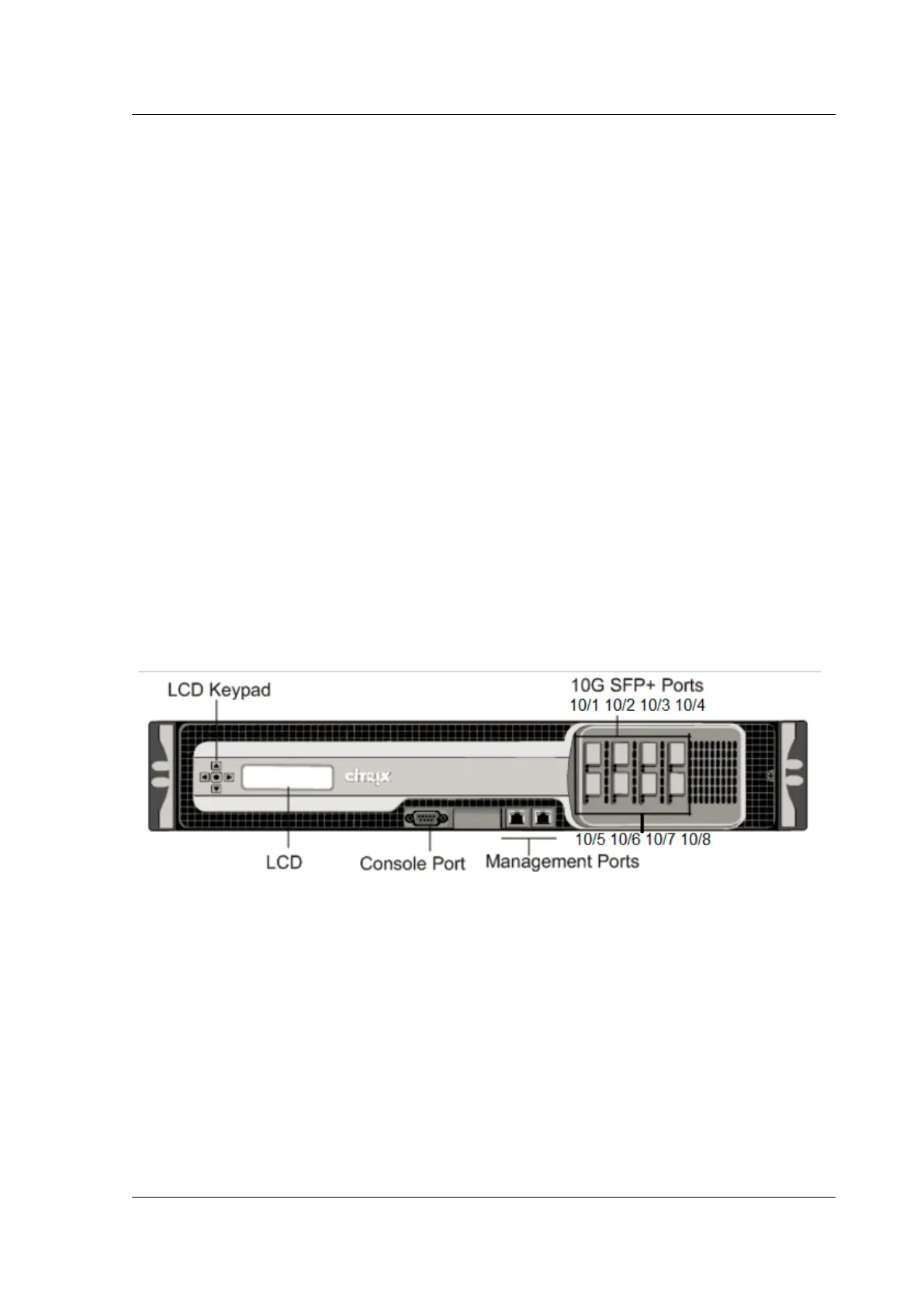

Figure 1. Citrix ADC MPX 17500/19500/21500 appliance, front panel
The MPX 17500/19500/21500 appliances have the following ports:
• RS232 serial console port.
• Two 10/100/1000Base‑T copper Ethernet management ports (RJ45), numbered 0/1 and
0/2 from le to right. These ports are used to connect directly to the appliance for system
administration functions.
• Eight 10G SFP+ ports numbered 10/1, 10/2, 10/3, and 10/4 on the top row from le to right. Ports
are numbered 10/5, 10/6, 10/7, and 10/8 on the bottom row from le to right.
The following figure shows the back panel of the MPX 17500/19500/21500 appliance.
Figure 2. Citrix ADC MPX 17500/19500/21500 appliance, back panel
© 1999–2023 Cloud Soware Group, Inc. All rights reserved. 72
