Citrix ADC MPX User Manual

Citrix ADC MPX
For information on the soware releases supported on the Citrix ADC hardware platforms, see
Hardware‑Soware Release Matrix.

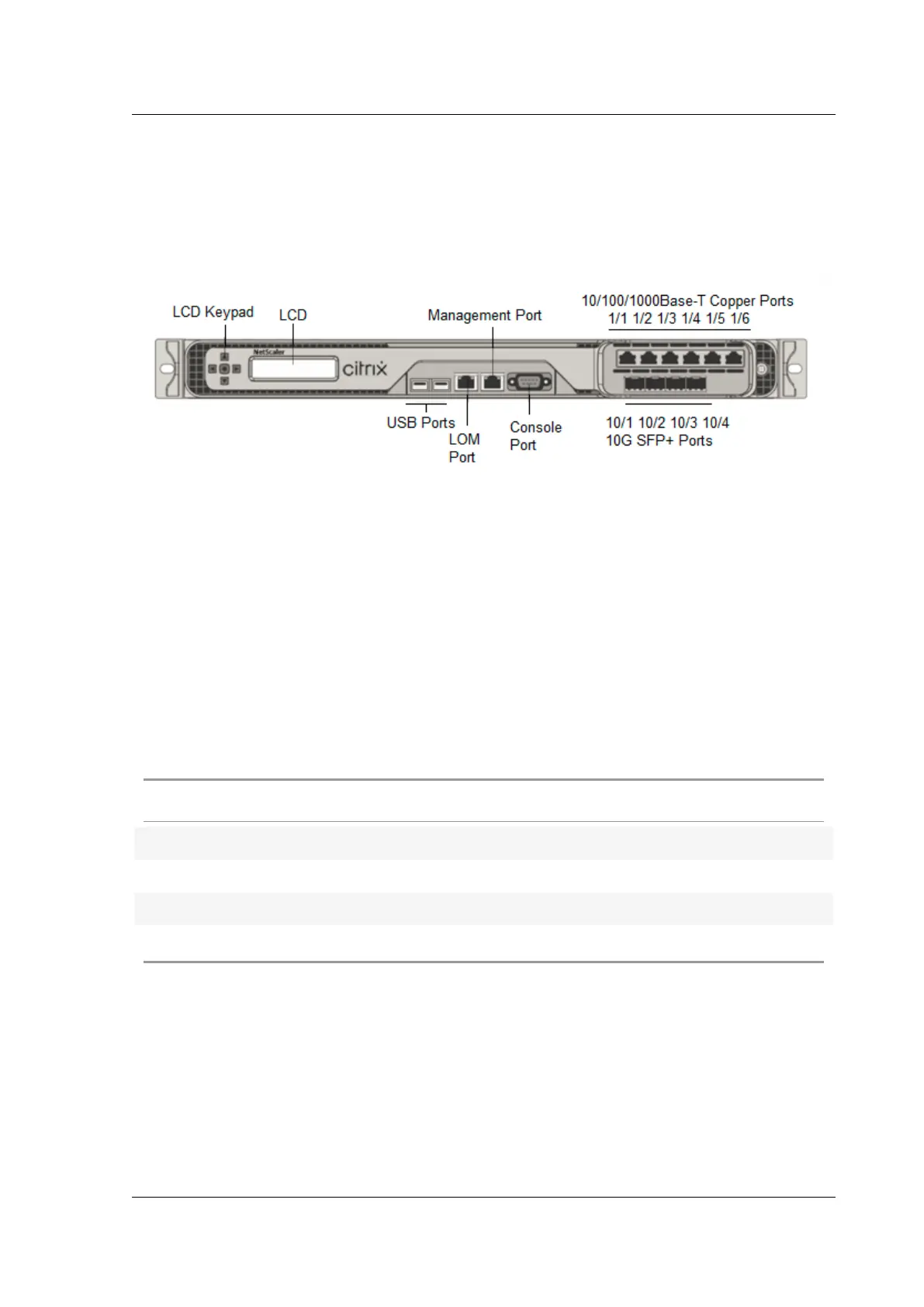

The following figure shows the front panel of the MPX 8900 series appliances.
Figure 1. Citrix ADC MPX 8900, front panel
The Citrix ADC MPX 8900 series appliances have the following ports:
• RS232 serial Console Port.
• One 10/100/1000Base‑T RJ45 copper Ethernet LOM Port. Use this port to remotely monitor and
manage the appliance independently of the Citrix ADC soware.
• One 10/100/1000Base‑T RJ45 copper Ethernet Management Port, numbered 0/1. This port is
used to connect directly to the appliance for Citrix ADC administration functions.
• Six 10/100/1000Base‑T RJ45 copper Ethernet Ports, numbered 1/1 to 1/6 from le to right.
• Four 10G/1G SFP+ Ethernet Ports, numbered 10/1 to 10/4 from le to right.
• USB port (reserved for a future release).
The following table indicates the LED status for the Management and LOM ports:
LED Color LED Indicates
OFF No connection or 10 Mbps speed
Flashing YELLOW Active
Flashing GREEN 100 Mbps speed
AMBER 1 Gbps speed
The following figure shows the back panel of the MPX 8900 appliance.
Figure 2. Citrix ADC MPX 8900, back panel
© 1999–2023 Cloud Soware Group, Inc. All rights reserved. 37

Citrix ADC MPX Specifications

General

Category	Network Hardware
Type	Application Delivery Controller
Virtualization Support	Yes
Power Supply	Redundant power supplies
High Availability	Yes
Product Series	Citrix ADC
Model	MPX
Ports	Varies by model
Redundancy	Yes
Protocols Supported	HTTP, HTTPS, TCP, SSL, DNS
Security Features	DDoS protection
Operating System	Citrix ADC
