Citrix ADC MPX User Manual

Citrix ADC MPX

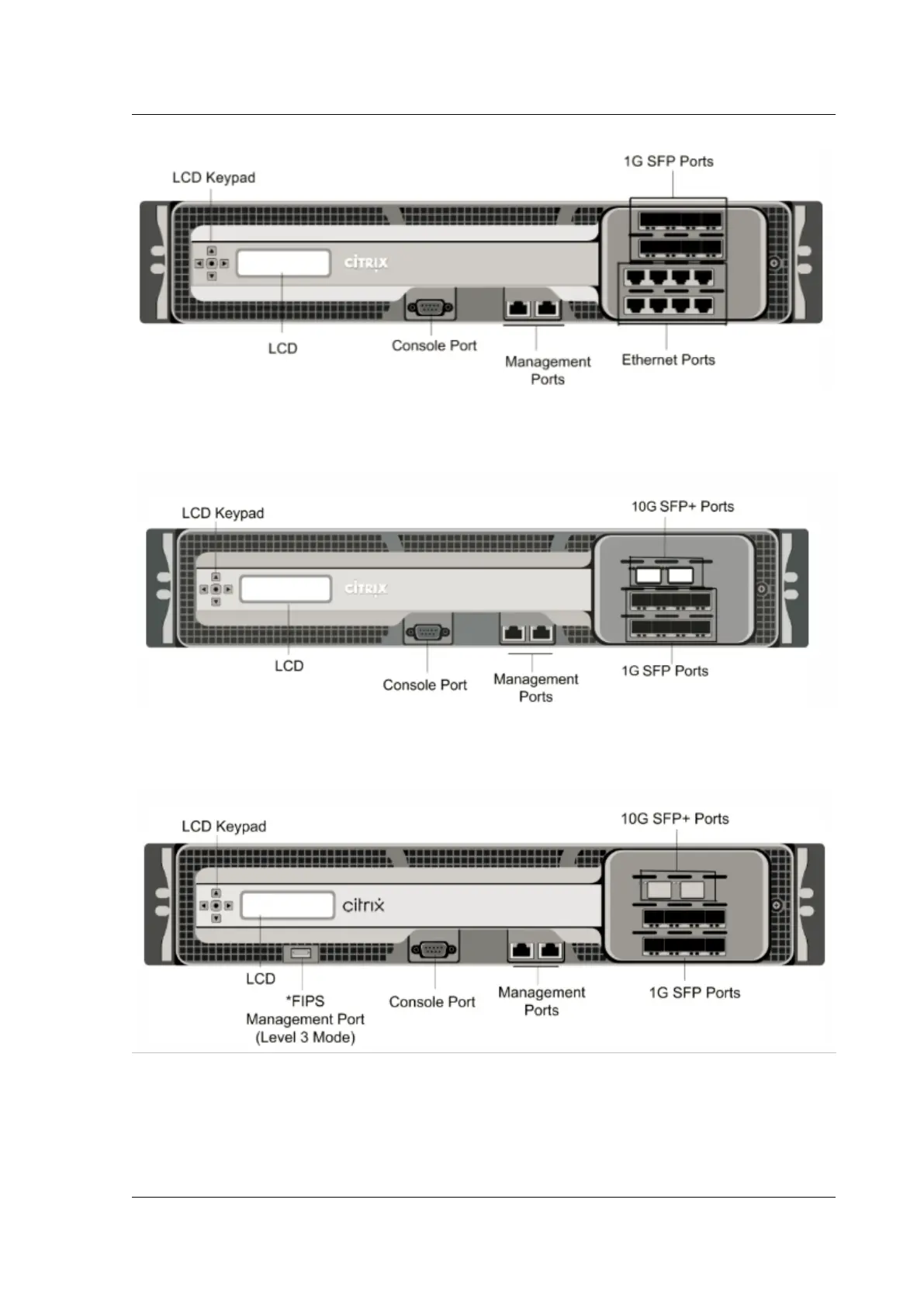

The following figure shows the front panel of the MPX 9700/10500/12500/15500 10G.
Figure 2. Citrix ADC MPX 9700/10500/12500/15500 10G, front panel
The following figure shows the front panel of the MPX 9700/10500/12500/15500 FIPS.
Figure 3. Citrix ADC MPX 9700/10500/12500/15500 FIPS, front panel
*The FIPS Management Port (Level 3 Mode) is reserved for a future release.
Caution: Do not insert a USB device into the FIPS Management Port. Doing so causes the FIPS card to
fail.
© 1999–2023 Cloud Soware Group, Inc. All rights reserved. 44

Citrix ADC MPX Specifications

General

Category	Network Hardware
Type	Application Delivery Controller
Virtualization Support	Yes
Power Supply	Redundant power supplies
High Availability	Yes
Product Series	Citrix ADC
Model	MPX
Ports	Varies by model
Redundancy	Yes
Protocols Supported	HTTP, HTTPS, TCP, SSL, DNS
Security Features	DDoS protection
Operating System	Citrix ADC
