Citrix ADC MPX User Manual

Citrix ADC MPX
The Citrix ADC MPX 15000‑50G appliances have the following ports:
• RS232 serial console port.
• One 10/100/1000Base‑T RJ45 copper Ethernet LOM port. Use this port to remotely monitor and
manage the appliance independently of the Citrix ADC soware.
• Two 10/100/1000Base‑T RJ45 copper Ethernet Management ports, numbered 0/1 and 0/2. This
port is used to connect directly to the appliance for Citrix ADC administration functions.
• Eight 10G SFP+ Ethernet ports, numbered 10/1 to 10/8.
• Four 50G ports, numbered 50/1 to 50/4. For information about supported transceivers per port,
see 25G, 40G, 50G, and 100G ports.

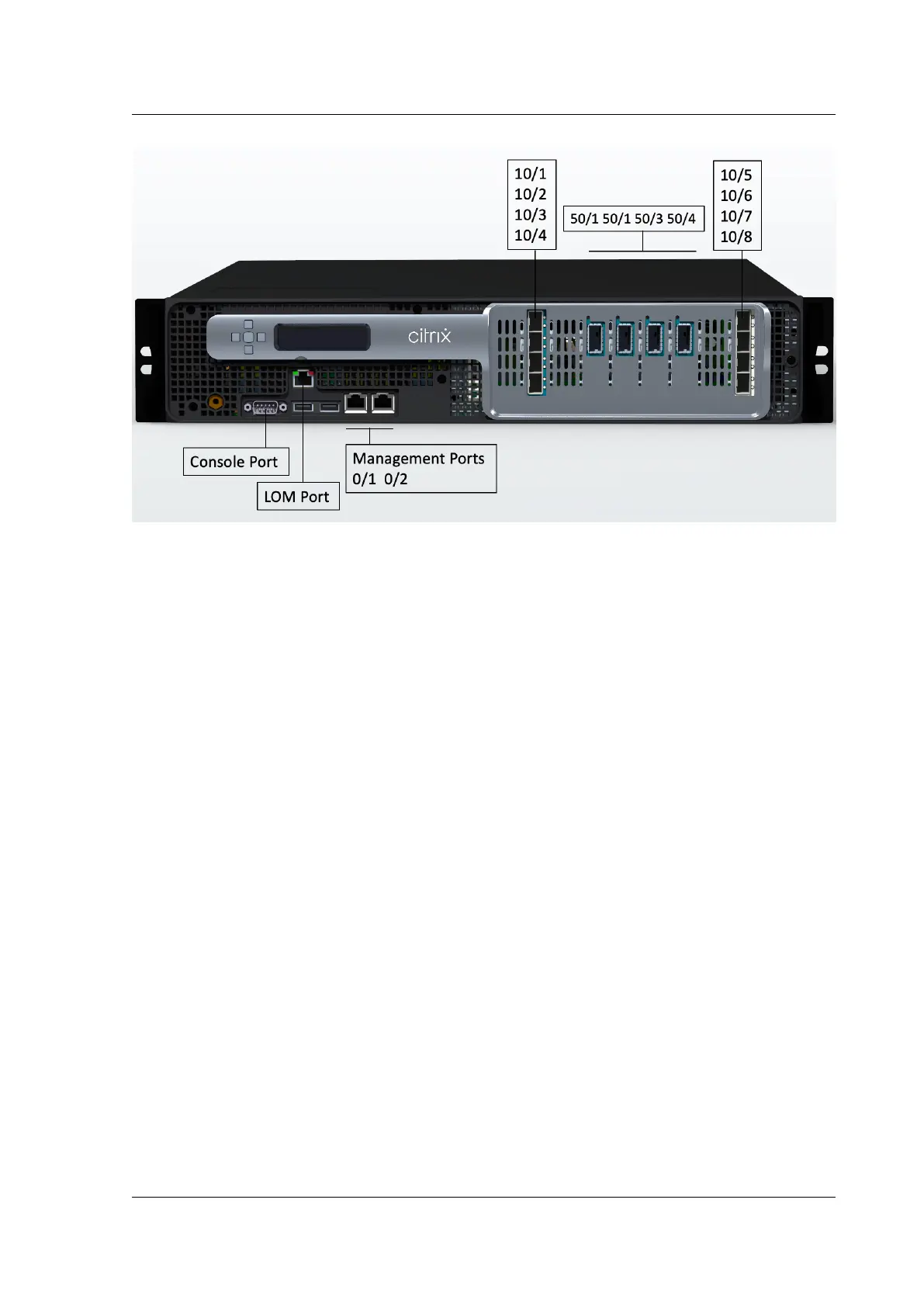

The following figure shows the back panel of the Citrix ADC MPX 15000‑50G appliance.
Figure 2. Citrix ADC MPX 15000‑50G, back panel
© 1999–2023 Cloud Soware Group, Inc. All rights reserved. 64

Citrix ADC MPX Specifications

General

Category	Network Hardware
Type	Application Delivery Controller
Virtualization Support	Yes
Power Supply	Redundant power supplies
High Availability	Yes
Product Series	Citrix ADC
Model	MPX
Ports	Varies by model
Redundancy	Yes
Protocols Supported	HTTP, HTTPS, TCP, SSL, DNS
Security Features	DDoS protection
Operating System	Citrix ADC
