Citrix ADC MPX
The T1100 appliance has the following ports:
• Eight 10GBASE‑X SFP+ data plane ports [T1100 (Gen1)]
• 16 10GBASE‑X SFP+ data plane ports [T1100 (16)]
• Two 10/100/1000BASE‑T, RJ45 management plane ports
• One 10/100BASE‑T, RJ‑45 LOM ports

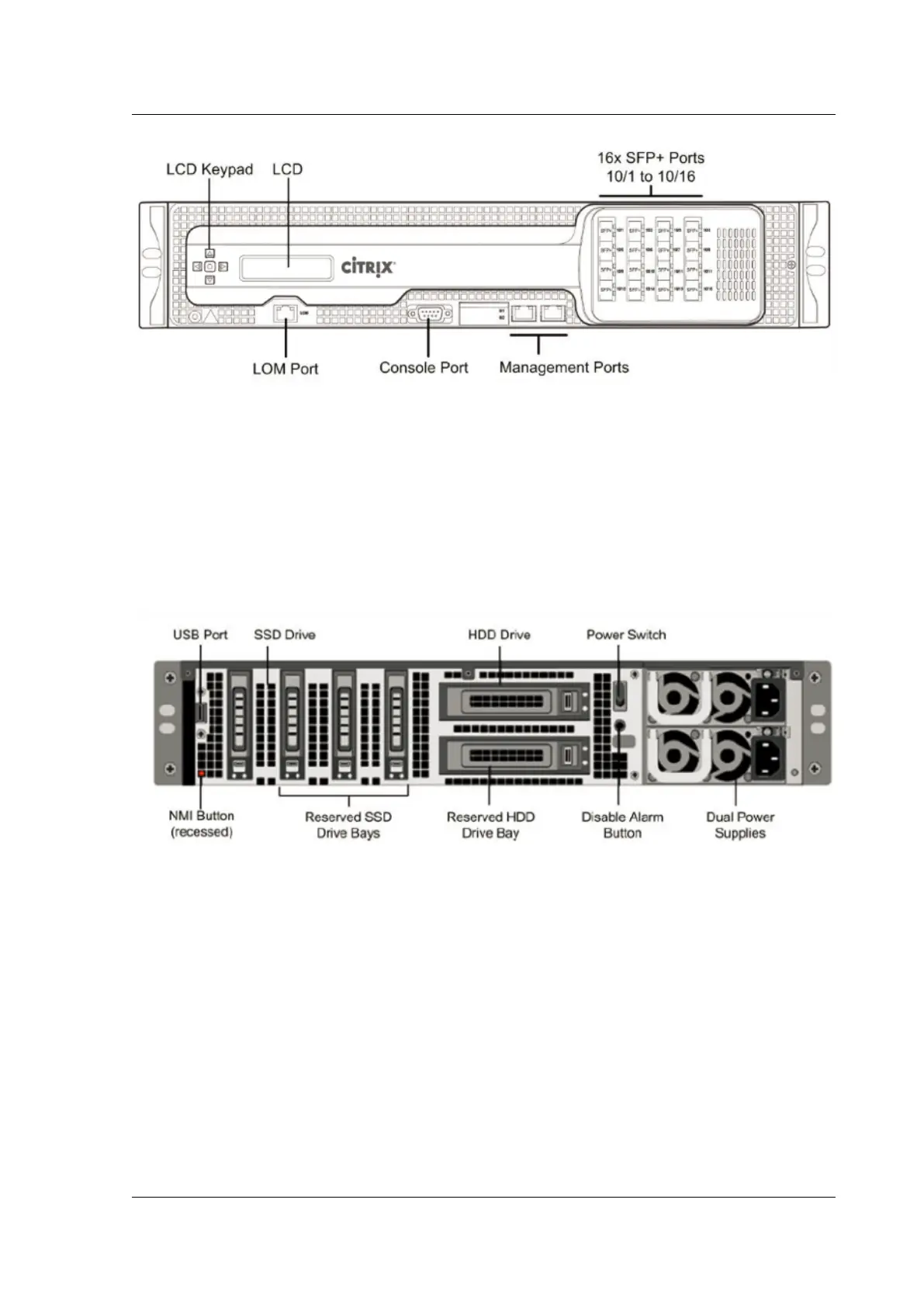

The following figure shows the back panel of the T1100.
Figure 2. Citrix ADC T1100 back panel
The following components are visible on the back panel of the T1100:
• USB port (reserved for a future release).
• 160 GB removable solid‑state drive.
Note: Drive densities might increase as components become EOL but its size is never smaller
than the original.
• Removable hard‑disk drive that stores user data.
• Power switch, which turns o power to the appliance, as if you were to unplug the power supply.
Press the switch for five seconds to shut o the power.
