CITROEN 2002 BERLINGO - Repositioning the Flange

102
ENGINE
Checks (continued)

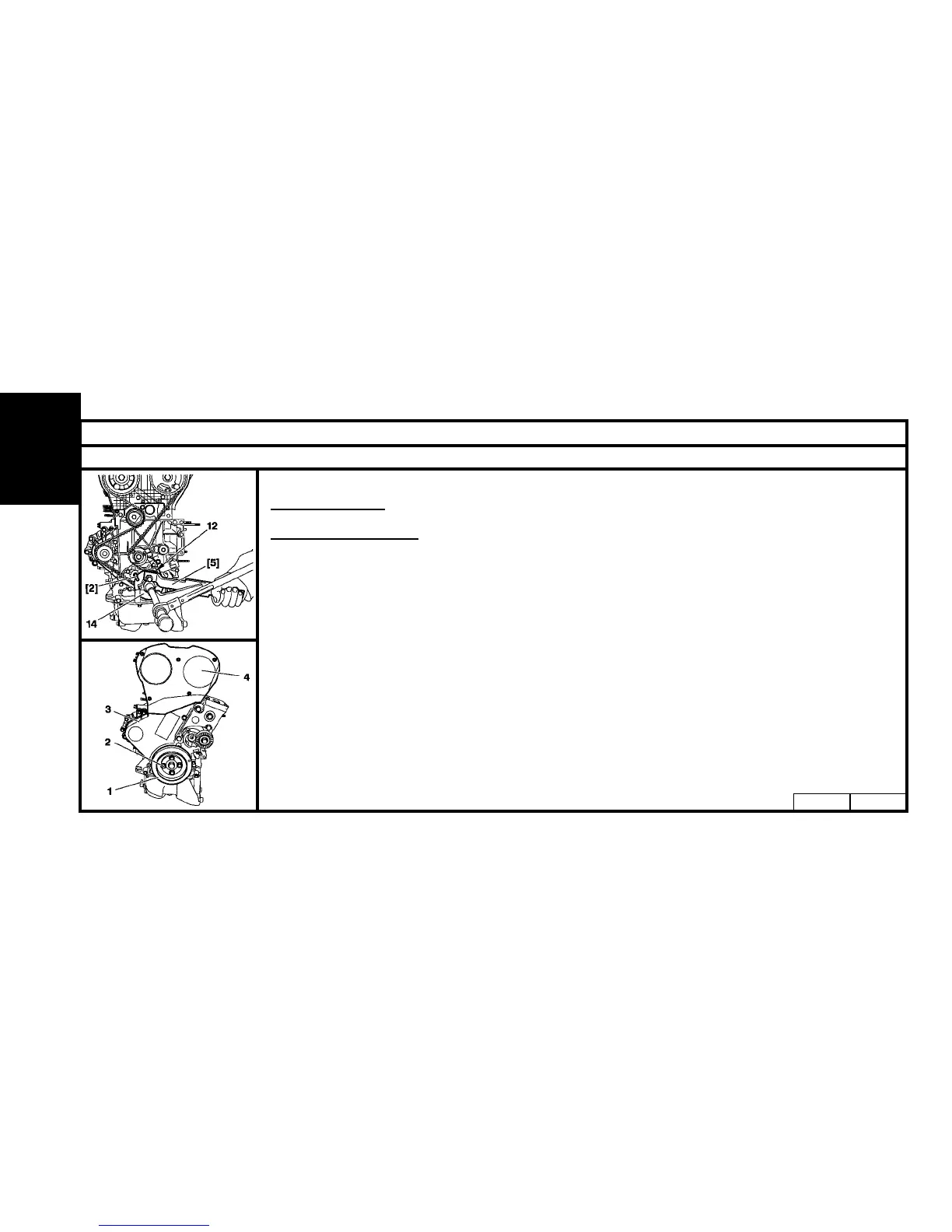

Repositioning the flange.
- Immobilise the crankshaft using tool [5].
- Loosen the screw (13).
- Release the pinion (12) of the crankshaft.
- Bring the flange (14) to the pegging position; using tool [5].
- Fit the tool [2].
- Immobilise the crankshaft using tool [5].
- Tighten screw (13) to 4 ± 0.4 m.daN, then angular tighten 53°±4°with tool [4].
- Remove tools [1], [2] and [5].
Refit :
- The lower valve cover (3).
- The upper valve cover (4).
- The crankshaft pulley (1).
- The screws (2).
- Pretighten the screws (2) to 1.5 m.daN.
- Tighten the screws (2) to 2.1 ± 0.5 m.daN.
CHECKING AND SETTING THE VALVE TIMING
Engines : 6FZ – RFN
