CITROEN 2002 BERLINGO - Page 68

65
ENGINE
XSARA PICASSO
AUXILIARY EQUIPMENT DRIVE BELT
Engine : NFV (Xsara Picasso)
Without air conditioning.
Tools.
[1] Plyers for removing plastic pegs : 7504 –T.
[2] Belt tension measuring instrument : 4122 –T.
[3] TORX spanner.

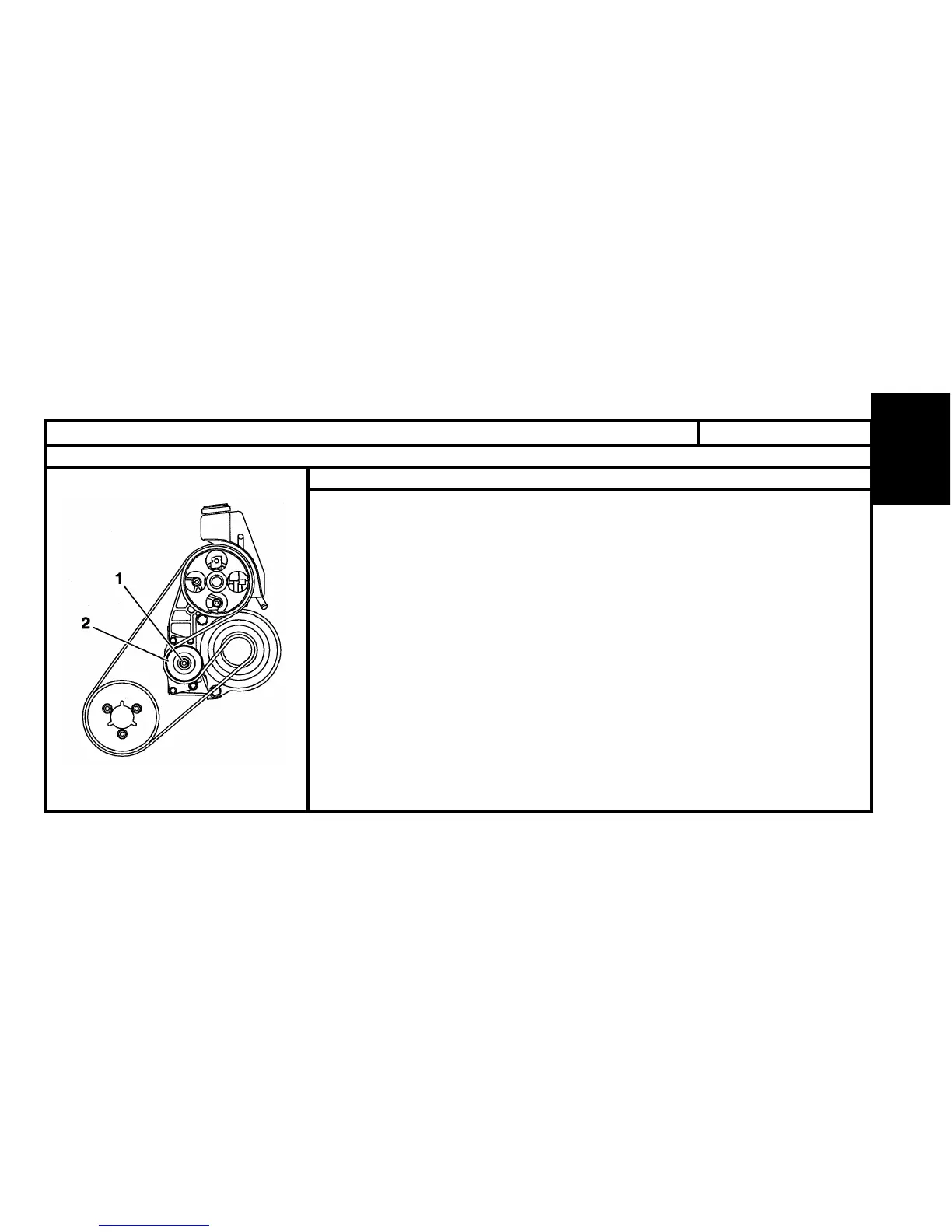

Remove.
- Release the central screw (1).tool [3].
- Detension the tensioner roller (2), (flat spanner 27 on flat).
- Remove the belt.
Refit.
- Position the belt.
- Hold the belt in position using the tensioner roller (2).
- Pre-tension the belt 120 SEEM units, tool [2].
- Lock the central screw (1) tool [3].
- Remove the tool [2].
- Rotate the crankshaft 2 to 4 times.
- Check the tension, 120 SEEM units.
- If not, restart the operation.
