ENGINE

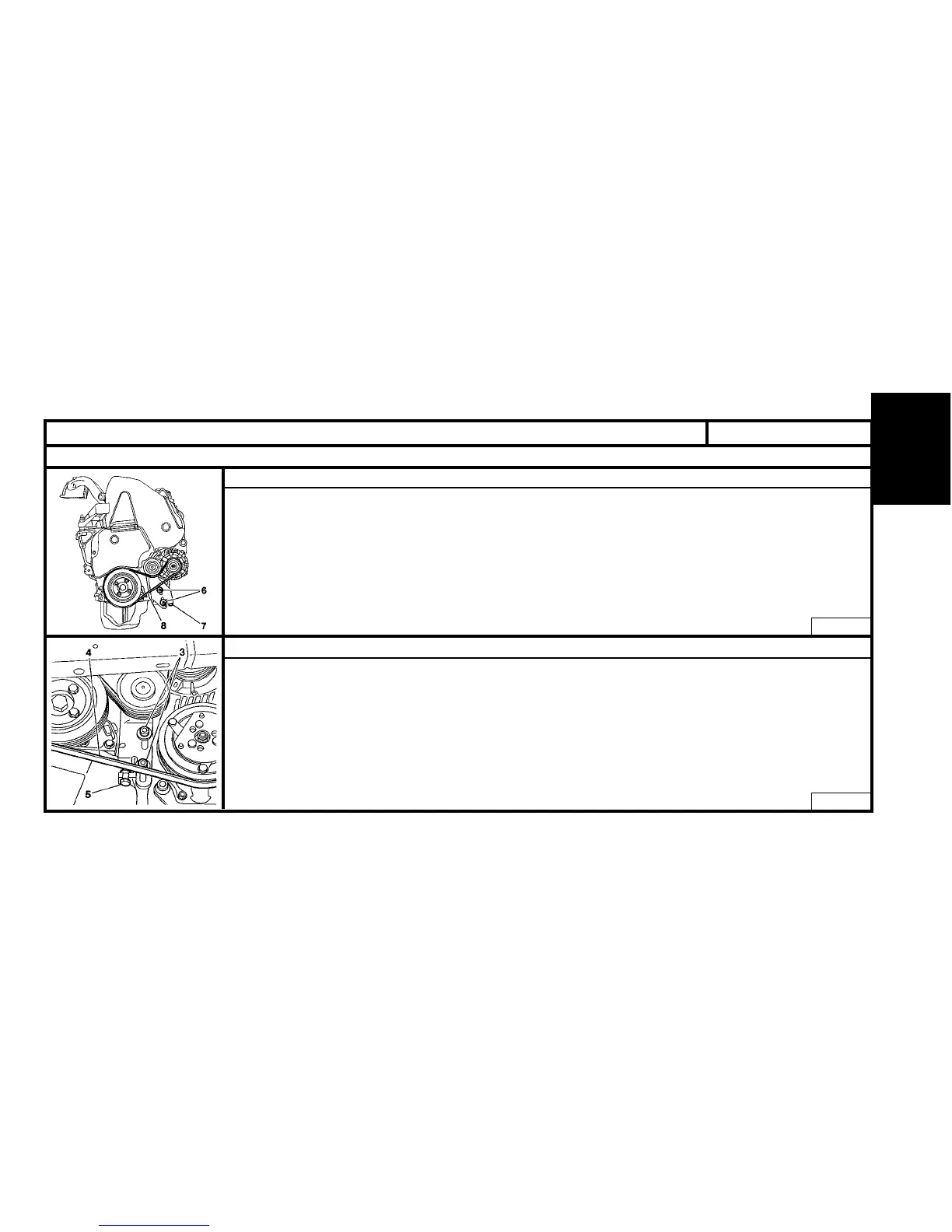

AUXILIARY EQUIPMENT DRIVE BELT
- (6) Roller support fixing screw.
- (7) Tensioning screw
- Pre-tension the belt (8) to : 120 SEEM units.
- Rotate the crankshaft by 3 turns (Direction of rotation).
- Adjust the belt (8) tension to : 120 SEEM units.
- Tighten the screws (6) to : 2.5 m.daN.
- Run the engine for 10 min.
- Check the tension.
- (3) Roller support fixing screw
- (5) Tensioning screw
- Pre-tension the belt (4) to : 120 SEEM units.
- Rotate the crankshaft by 3 turns (Direction of rotation).
- Adjust the belt (4) tension to : 120 SEEM units.
- Tighten the screws (3) to : 2.5 m.daN.
- Run the engine for 10 min.
- Check the tension.
Without air conditioning.
With air conditioning.
B1BP11DC
B1BP11EC
Engine : VJX
SAXO- XSARA
