Towbarwithquicklydetachabletowball

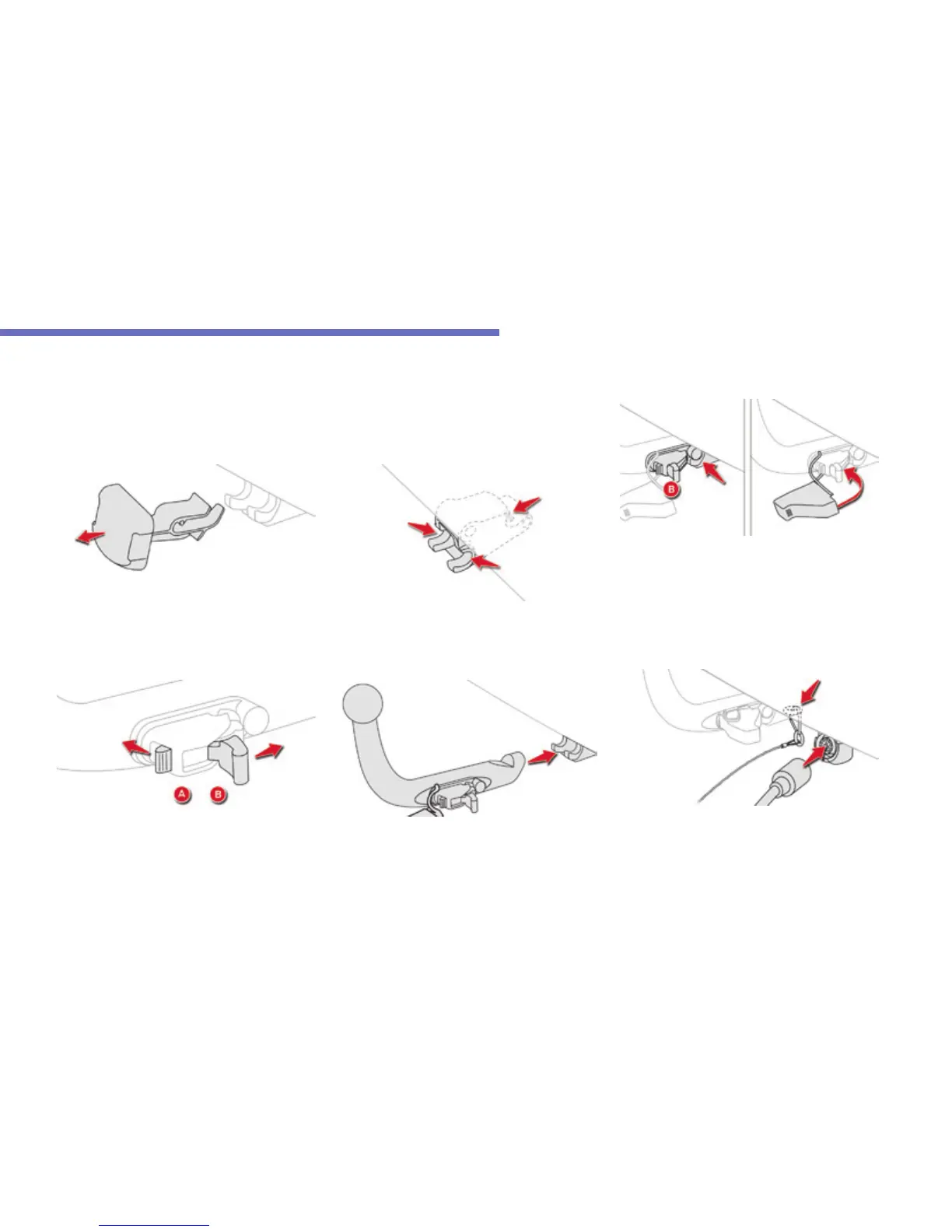

Fitting
F Belowtherearbumper,unclipandremove
theprotectivecoveronthecarrier.
F Beforefittingthetowball,checkthatthe
pointsofcontact,indicatedbythearrows,
areclean.
 Useasoftcleancloth.
F Ensurethatthetowballisfullyengaged.
Thetwopinsmustbeincontactwith
thecut-outsinthecarrierandthe
triggerBmusthavereturnedtothe
"locked"position.
F Installandclipinplacetheprotective
cover,byrotatingittotheleft.
F Onthetowball,pressandholdcontrolA.
F Releasethelockingmechanismby
pressingthetriggerB.
F Puttheendofthetowballintothecarrier,
locatedbelowthebumper,asfarasitwillgo.
Notoolsarerequiredtoinstallorremovethetowballonthisgenuinetowbarsystem.
F Connectthetrailerplugtothe13-way
socketprovided,locatednexttothecarrier.
F Makethetrailersafebyattachingitssafety
cabletotheeyeprovidedforthispurpose,
locatedonthecarrier.
