ENGINE
70
CHECKING AND SETTING THE VALVE TIMING
Engine : 8HT
Tools.
[1] Engine flywheel setting peg : (-).0194.C
[2] Camshaft setting peg : (-).0194.B
[3] Crankshaft setting peg : (-).0194.A
[4] Movable mirror
[5] Tool for removing exhaust clips : C.193.A
[6] Hose clamp : (-).0188.AD

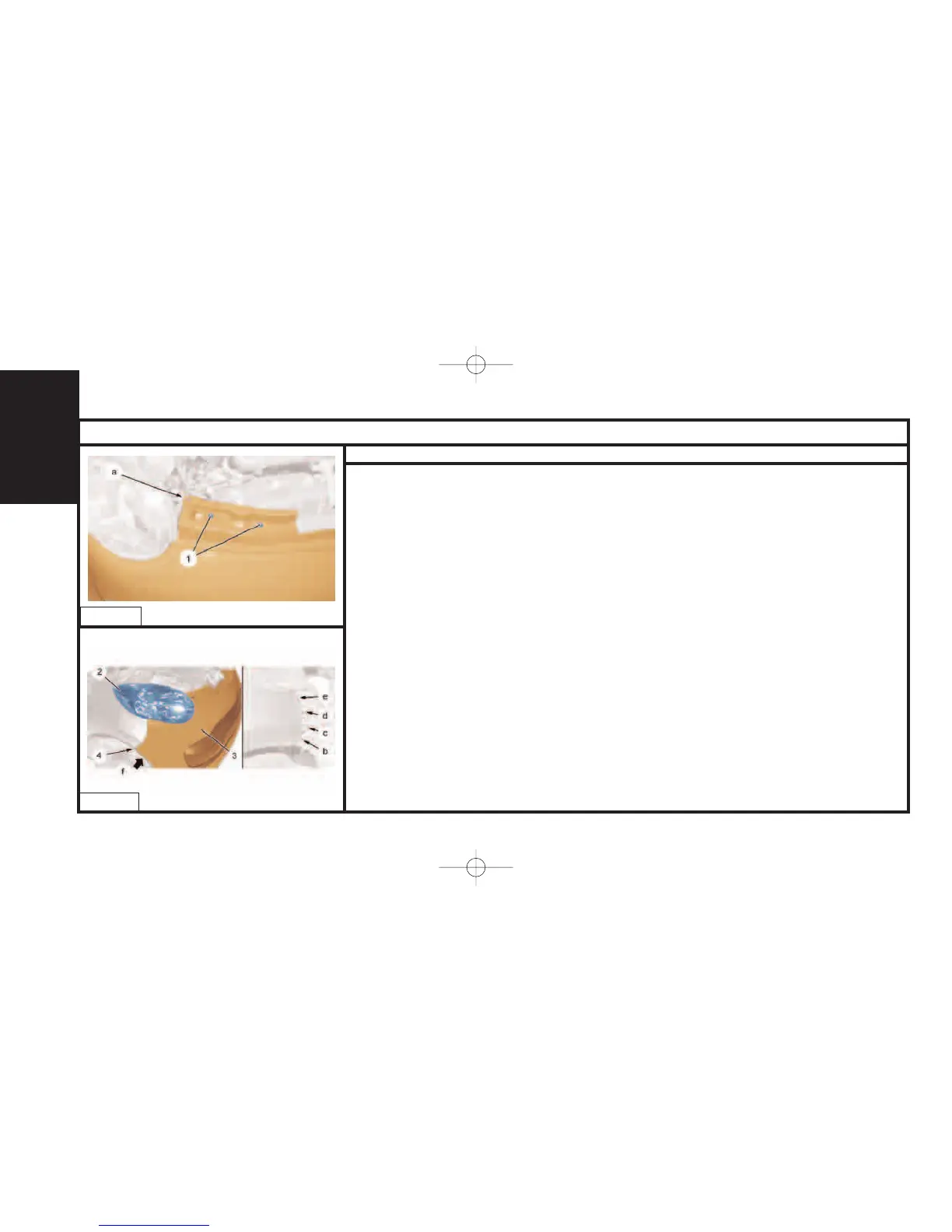

Removing.
Preliminary operations
Disconnect the battery negative terminal.
Place the vehicle on a 2-column lift.
Remove the screws (1).
Move aside the bumper at "a".
Remove the plastic rivet (4).
Apply a force upwards at "f".
Detach in the sequence "b", "c", "d", "e".
Move aside the bumper (3).
Remove the headlamp (2).
C4A2003D
C4A2004D
