ENGINE
CHECKING AND SETTING THE VALVE TIMING
Engine : 8HT
In the engine compartment
Remove the screw (9).
Disconnect the connector at "g".
Move aside the header tank (8).
Detach the harness (6) on the timing cover (5).
Refit :
- the screws (7)
- the upper timing cover (5)
Put the header tank (8) back in its initial position.
Remove the accessories drive belt
(see corresponding operation)
.
Under the vehicle
Remove the exhaust clip (10) using tool [5].
Uncouple the exhaust line.
NOTE : Removing the exhaust clip prevents the front flexible pipe from being damaged. Twisting,
pulling and bending reduces the life of the front flexible exhaust pipe.
Rotae the engine by means of the crankshaft pulley screw to bring it to the flywheel locking posi-
tion, using tool [1].
NOTE : The locking hole is under the engine

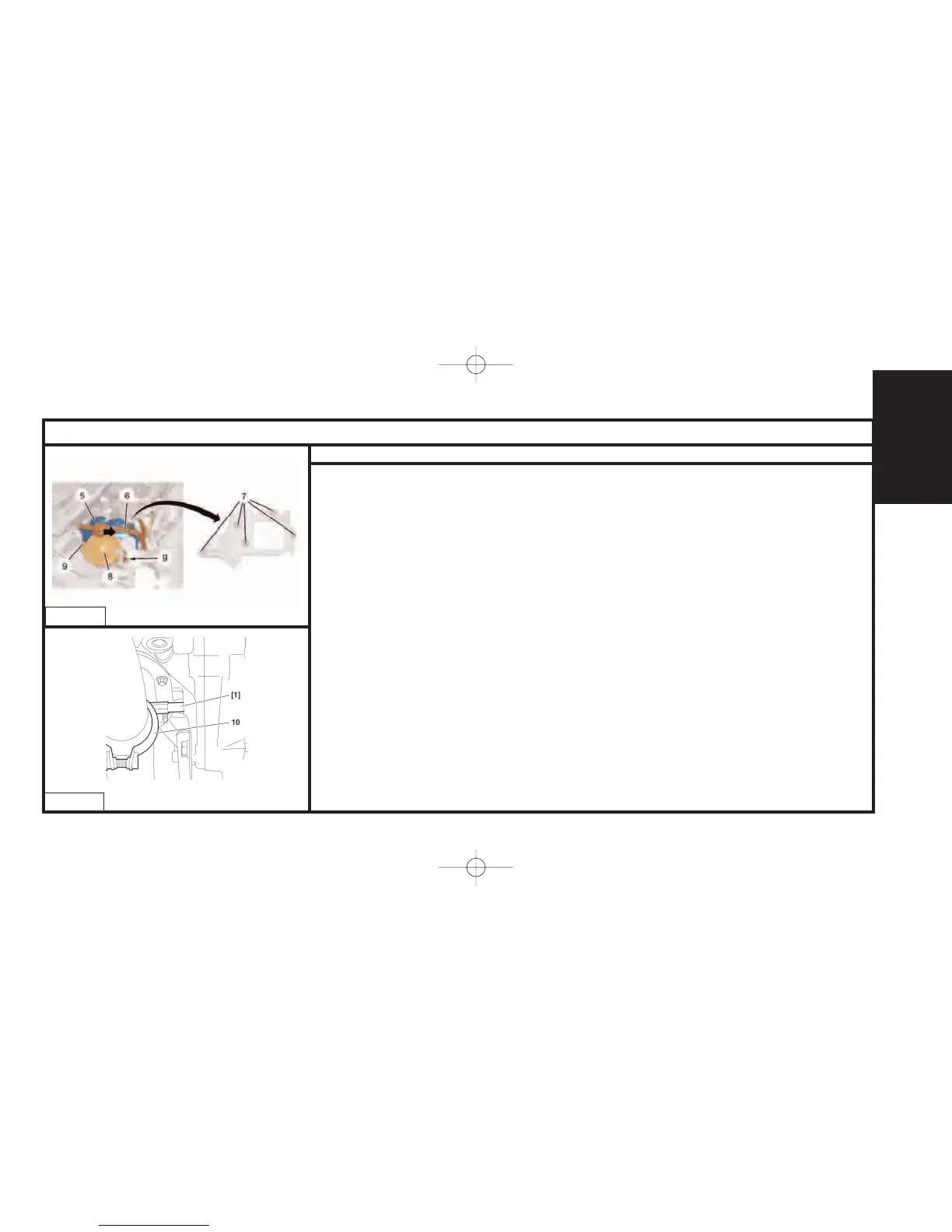

B1B2009D
B1J2002D
