CKD EVD-3000 Series User Manual

SM-A20758-A/3 1. PRODUCT OVERVIEW
4 2020-10-06

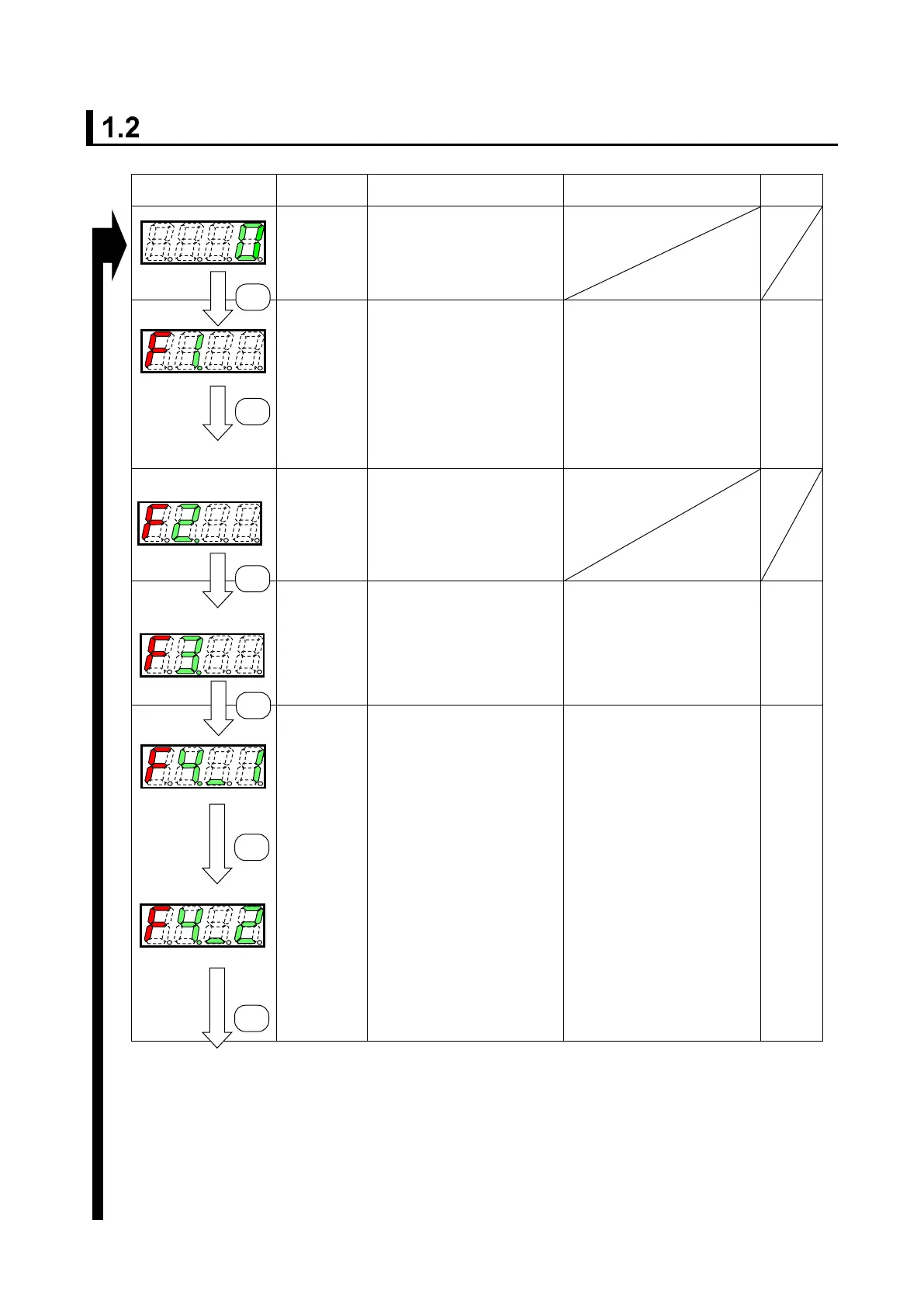

Functions
Screen
Description
Details (run mode)
Setting details (setting mode)
Related
page
Pressure
display
Indicates the secondary side
pressure with 3-digit number.
The display value is converted to
the set unit.
Screen F1
Input signal
type setting
Indicates the selected input
signal type, current pressure
value and unit.
*This function is set to the
normal mode "F1.Io".
Input type can be selected from
normal mode / preset / direct
memory. For preset / direct input,
enter the setting value on this
screen. Preset input values can
also be set via IO-Link
communication. (Direct input
value can be set only on this
screen.)
P.32
P.37
Screen F2
Zero/span
adjustment
No available
“F2.--" is displayed.
Screen F3
Automatic
power off
Indicates whether automatic
power off is enabled or disabled.
*This function is set to disabled
"F3.-- " at the factory setting.
Select to enable or disable the
automatic power off.
Note: The automatic power off
time is set to approximately
one minute and cannot be
changed.
P.33
P.39
Screen F4
Switch
output
Indicates whether switch output
is enabled or disabled and the
set value.
For "Mode 1 enabled", "F4.1" or
"F4.2" is displayed, and the
switch No. (1 or 2) and Mode (1),
"−" tolerance range set value (L)
and "+" tolerance range set
value (H) are displayed in order.
For "Mode 2 enabled", "F4.1" or
"F4.2" is displayed, and the
switch No. (1 or 2) and Mode (2),
lower set value (L) and upper set
value (H) are displayed in order.
*This function is set to disabled
"F4._1"⇔"1 --"
"F4._2"⇔"2 --"
at the factory setting.
Select to enable or disable the
switch output.
If enabled, "Mode 1" and "Mode
2" can be selected.
+/− tolerance values and
upper/lower values can be set
randomly.
P.33
P.40
To screen F5
△
△
△
△
△
△
