CKD RAPIFLOW FSM3 Series User Manual

6

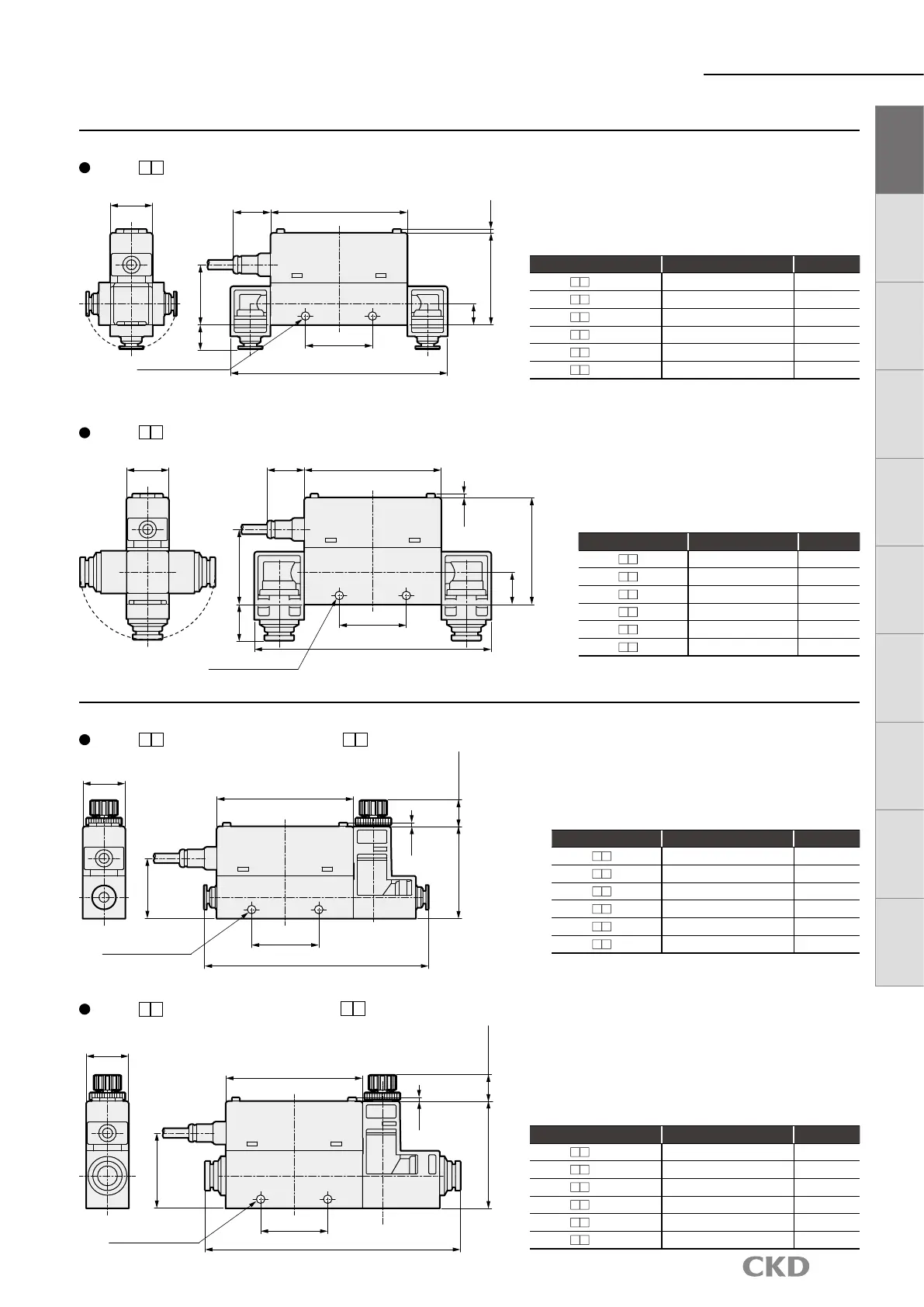

Dimensions
FSM3
Series
Dimensions (LCD display)
Port size: elbow φ4 mm, φ6 mm, φ1/4", Rc1/8, G1/8, NPT1/8
FSM3-L B C 1/BH2/CH2/HH2/AA2/AB2/AC2 (Full scale ow rate: 500 mL/min, 1, 2, 5, 10, 20, 50 L/min)
With needle valve dimensions
Port size: φ4 mm, φ6 mm, φ1/4", Rc1/8, G1/8, NPT1/8
FSM3-L B C 1/BH1/CH1/HH1/AA1/AB1/AC1/ G H T (Full scale ow rate: 500 mL/min, 1, 2, 5, 10, 20, 50 L/min)
Port size: elbow φ8 mm, φ10 mm, φ3/8", Rc1/4, G1/4, NPT1/4
FSM3-L B C 1/DH2/EH2/JH2/BA2/BB2/BC2(Full scale ow rate: 50, 100, 200 L/min)
Port size: φ8 mm, φ10 mm, φ3/8", Rc1/4, G1/4, NPT1/4
FSM3-L B C 1/DH1/EH1/JH1/BA1/BB1/BC1/ G H T (Full scale ow rate: 50, 100, 200 L/min)
Model No. Fitting Dimension (A)
FSM3-L 1BH2 Push-in φ4 mm (9.5)
FSM3-L
1CH2 Push-in φ6 mm (10.6)
FSM3-L
1HH2 Push-in 1/4" (12.2)
FSM3-L
1AA2 Rc1/8 (14.5)
FSM3-L
1AB2 G1/8 (20.5)
FSM3-L
1AC2 NPT1/8 (14.5)
Model No. Fitting Dimension (A)
FSM3-L 1BH1 Push-in φ4 mm (90)
FSM3-L
1CH1 Push-in φ6 mm (92.2)
FSM3-L
1HH1 Push-in 1/4" (95.4)
FSM3-L
1AA1 Rc1/8 (100)
FSM3-L
1AB1 G1/8 (112)
FSM3-L
1AC1 NPT1/8 (100)
Model No. Fitting Dimension (A)
FSM3-L 1DH2 Push-in φ8 mm (13.6)
FSM3-L
1EH2 Push-in φ10 mm (19.3)
FSM3-L
1JH2 Push-in 3/8" (20.0)
FSM3-L
1BA2 Rc1/4 (15.8)
FSM3-L
1BB2 G1/4 (22.8)
FSM3-L
1BC2 NPT1/4 (15.8)
Model No. Fitting Dimension (A)
FSM3-L 1DH1 Push-in φ8 mm (101.6)
FSM3-L
1EH1 Push-in φ10 mm (113.1)
FSM3-L
1JH1 Push-in 3/8" (114.4)
FSM3-L
1BA1 Rc1/4 (106)
FSM3-L
1BB1 G1/4 (120)
FSM3-L
1BC1 NPT1/4 (106)
17
17
17
17
15
15
55
55
55
55
27
27
27
27
87.3
95.3
(A)
(A)
(24.2)
(A)
(30.2)(A)
(24.2)
30.2
8.5
13
1.5
1.5
1.5
37
(10.5 to 19)
43
(10.5 to 19)
1.5
37
43
2-φ3.4 penetration
2-φ3.4 penetration
2-φ3.4 penetration
2-φ3.4 penetration
LCD display Bar display
IO
-
Link
Internal
structure
Separate
display
Technical
data
Operating
method
Optional
products
Safety
precautions
Related
products
