CKD RAPIFLOW FSM3 Series User Manual

7

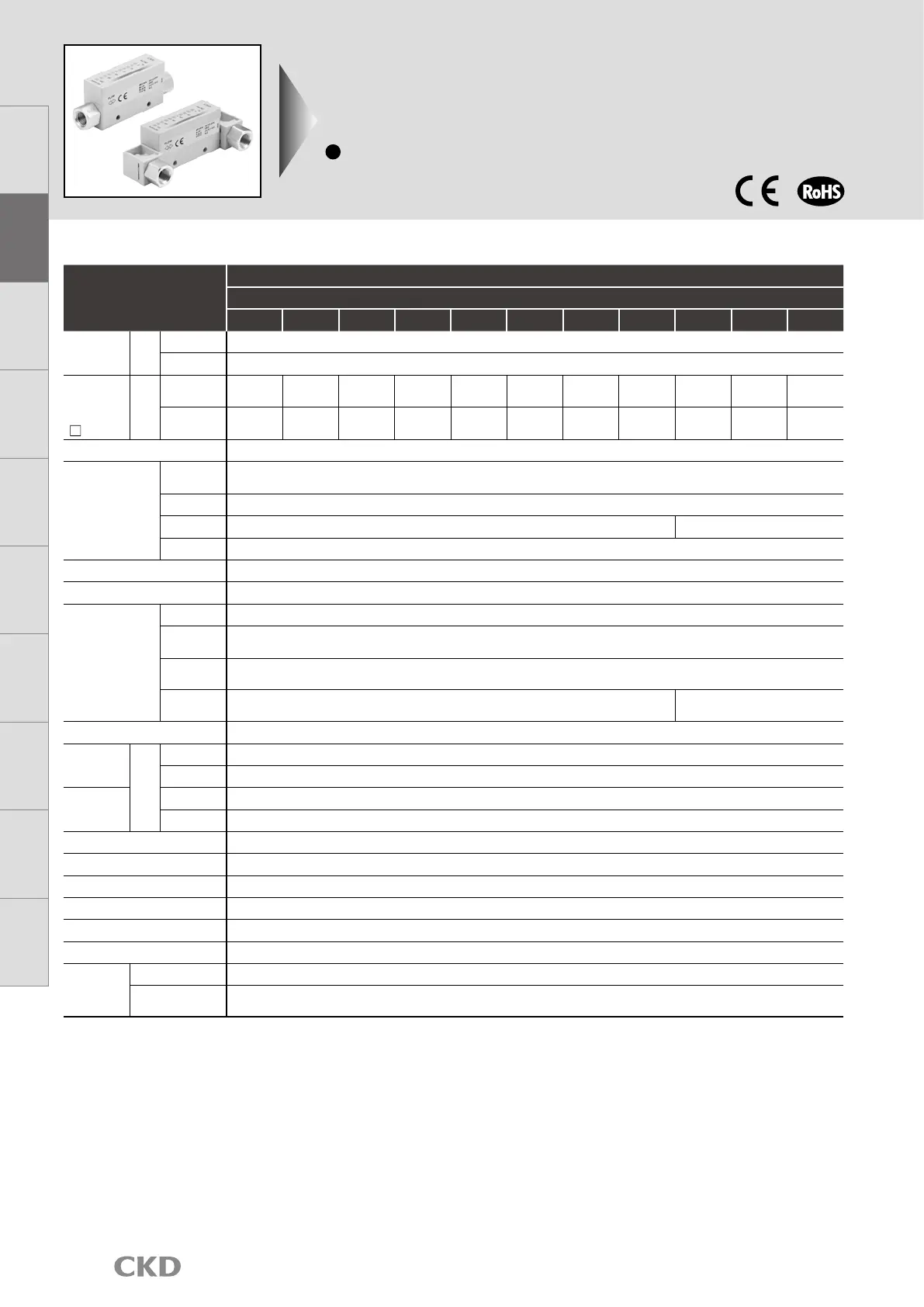

Compact ow rate sensor RAPIFLOW
FSM3 Series
Bar display
Resin body (ow rate range: 500 mL/min to 1000 L/min)
Bar display specications
Descriptions
FSM3-[A][B][C][D][E][F][G][H][I]-[ ]
[B]
005 010 020 050 100 200 500 101 201 501 102
Flow
direction
[C]
U Uni-direction
B Bi-direction
Measured
ow rate
range
(
/min) *1
[B]
U
15 to
500 mL
30 to
1000 mL
0.06 to
2.00 L
0.15 to
5.00 L
0.30 to
10.00 L
0.6 to
20.0 L
1.5 to
50.0 L
3.0 to
100.0 L
6 to
200 L
15 to
500 L
30 to
1000 L
B
−500 to −15,
15 to 500 mL
−1000 to −30,
30 to 1000 mL
−2.00 to −0.06,
0.06 to 2.00 L
−5.00 to −0.15,
0.15 to 5.00 L
−10.00 to −0.30,
0.30 to 10.00 L
−20.0 to −0.6,
0.6 to 20.0 L
−50.0 to −1.5,
1.5 to 50.0 L
−100.0 to −3.0,
3.0 to 100.0 L
−200 to −6,
6 to 200 L
−500 to −15,
15 to 500 L
−1000 to −30,
30 to 1000 L
Display LED bar display
Working uid
Applicable
uids *2
Clean air (JIS B 8392-1:2012 1.1.1 to 5.6.2), compressed air (JIS B 8392-1:2012 1.1.1 to 1.6.2), nitrogen gas
Temperature range 0 to 50°C (no condensation)
Pressure range −0.07 to 0.75 MPa 0 to 0.75 MPa
Proof pressure 1 MPa
Operating ambient temperature/humidity 0 to 50°C, 90% RH or less
Storage temperature −10 to 60°C
Accuracy
Accuracy *3 Within ±3% F.S. (Secondary side released to atmosphere) (Scope of warranty depends on the "Measured ow rate range")
Repeatability
*4
Within ±1% F.S. (Secondary side released to atmosphere)
Temperature
characteristics
Within ±0.2% F.S./°C (15 to 35°C, base temperature 25°C)
Pressure
characteristics
Within ±5% F.S. (−0.07 to 0.75 MPa, secondary side is released to atmosphere)
Within ±5% F.S.
(0 to 0.75 MPa, base pressure 0.35 MPa)
Response time *5 50 msec or less
Analog
output *6
[G]
J 1 to 5 V voltage output (connecting load impedance = 50 kΩ and over)
K 4 to 20 mA current output (connecting load impedance 0 to 300 Ω)
Power supply
voltage *7
J 12 to 24 VDC (10.8 to 26.4 V) ripple rate 1% or less
K 24 VDC (21.6 to 26.4 V) ripple rate 1% or less
Current consumption *8 45 mA or less
Lead wire φ3.7, AWG26 or equivalent × 4-conductor (connector), insulator outer diameter φ1.0
Degree of protection IP40-equivalent (IEC standards)
Protection circuit *9 Power supply reverse connection protection
Vibration resistance 10 to 150 Hz, max. 100 m/s
2
, X, Y, Z direction, every 2 hours
EMC Directive EN55011, EN61000-6-2, EN61000-4-2/3/4/6/8
Mounting
Mounting orientation *10 Unrestricted in vertical/horizontal direction
Straight piping
installation section *11
Not required
LCD displayBar display
IO
-
Link
Internal
structure
Separate
display
Technical
data
Operating
method
Optional
products
Safety
precautions
Related
products
