41
NC
Port size: Rc1/4, 3/8
EXA
Series
screw-in connection body

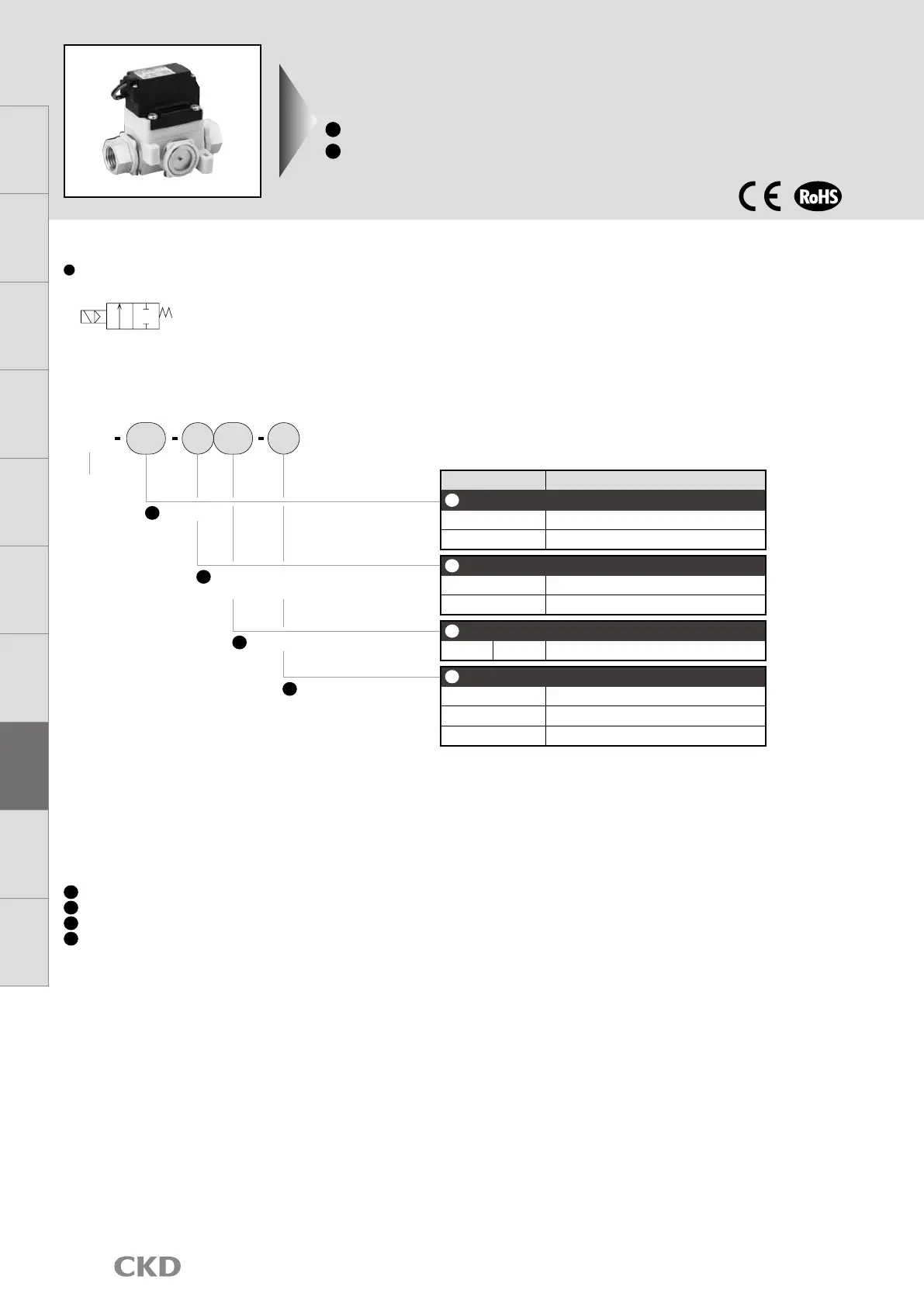

Pilot operated 2-port solenoid valve for compressed air
B
Sealant/pilot operated
combination
C
Coil option
D
Voltage
JIS symbol
NC
OUT
IN
EXA
Model No.
How to order
A
Port size
Code Content
A
Port size
02 Rc1/4
03 Rc3/8
B
Sealant/pilot operated combination
0
H-NBR, internal exhaust specifications
1
H-NBR, external exhaust specifications *1
C
Coil option *2
2C Standard
Lead wire (without surge suppressor)
D
Voltage *2
1 100 VAC
3 24 VDC
4 12 VDC
*1: Check the pressure specifications.
*2: Contact CKD for G thread and NPT thread support.
* For the connection method of FSM3, check the FSM3 instruction manual.
[Example of model No.]
EXA-02-12C-3
A
Port size : Rc1/4
B
Sealant/pilot operated combination : H-NBR/external exhaust specifications
C
Coil option : Lead wire (without light or surge suppressor)
D
Voltage : 24 VDC
02 2C1 3
LCD displayBar display
IO
-
Link
Internal
structure
Separate
display
Technical
data
Operating
method
Optional
products
Safety
precautions
Related
products
