CKD RAPIFLOW FSM3 Series User Manual

24

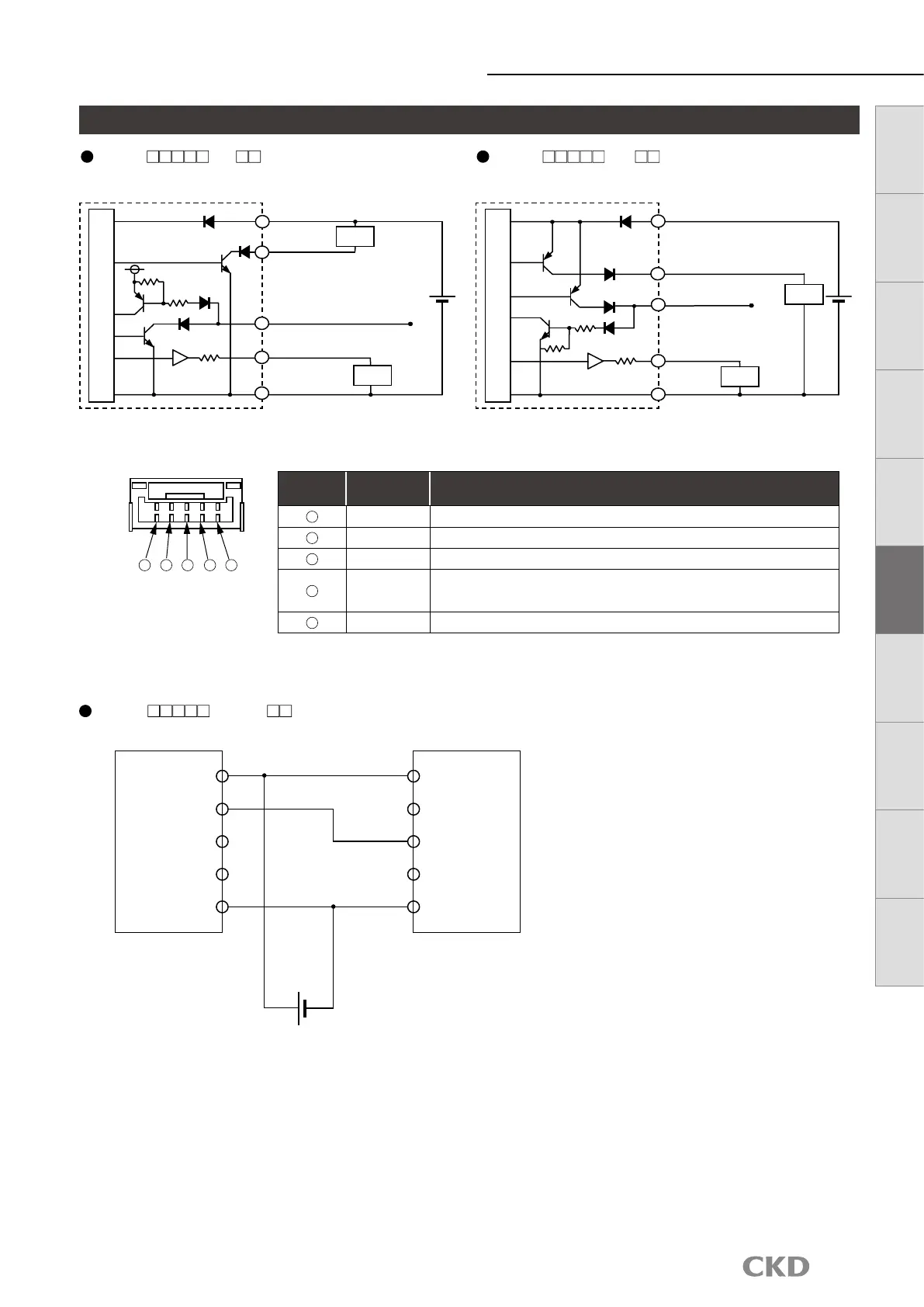

Example of internal circuit and load connection
FSM3
Series
FSM3-L A/C/E/G/ (LCD display, copy function)
Example of internal circuit and load connection
FSM3-L A/E/
(LCD display, NPN output, copy function)
FSM3-L C/G/
(LCD display, PNP output, copy function)
Terminal
No.
Option cable
color
Name
1
Brown Power supply (+) (voltage output: 12 to 24 V, current output: 24 V)
2
Black CH1 (switch output 1: max. 50 mA)
3
White CH2 (copy terminal)
4
Gray
Analog output
Voltage output: 1 to 5 V load impedance: 50 kΩ or more
Current output: 4 to 20 mA load impedance 300 Ω or less
5
Blue Power supply − (GND)
(FSM3 side)
1 2 3 4 5
1
[When using set value copy function]
+ −
Power
supply
Power supply + Power supply +
Power supply −
FSM3 (master side)
Set value copy
Power supply −
FSM3 (slave side)
Analog output Analog output
CH2 (Copy terminal) CH2 (Copy terminal)
CH1 (SW Output 1) CH1 (SW Output 1)
Connect the master side SW output 1 terminal and the slave side copy terminal.
(Brown) power supply (+)
(Blue) Power
supply (−)
R*
Load
Load
1
2
3
4
5
+
−
Main circuit
(Gray) Analog output
(Black) CH1
SW Output 1
* Analog output voltage output R: approx. 1 kΩ
Current output R: approx. 100 Ω
(White) CH2
Copy terminal
(Brown) power supply (+)
(Blue)
Power
supply (−)
R*
Load
Load
1
2
3
4
5
+
−
Main circuit
(Gray) Analog output
(Black) CH1
SW Output 1
* Analog output voltage output R: approx. 1 kΩ
Current output R: approx. 100 Ω
(White) CH2
Copy terminal
LCD display Bar display
IO
-
Link
Internal
structure
Separate
display
Technical
data
Operating
method
Optional
products
Safety
precautions
Related
products
