Clack WS CI Series User Manual

25
Isolation Valve
Softener Outlet
Bypass Valve
Isolation Valve
Softener Inlet
Non return valve
Hard water supply
Direction of flow

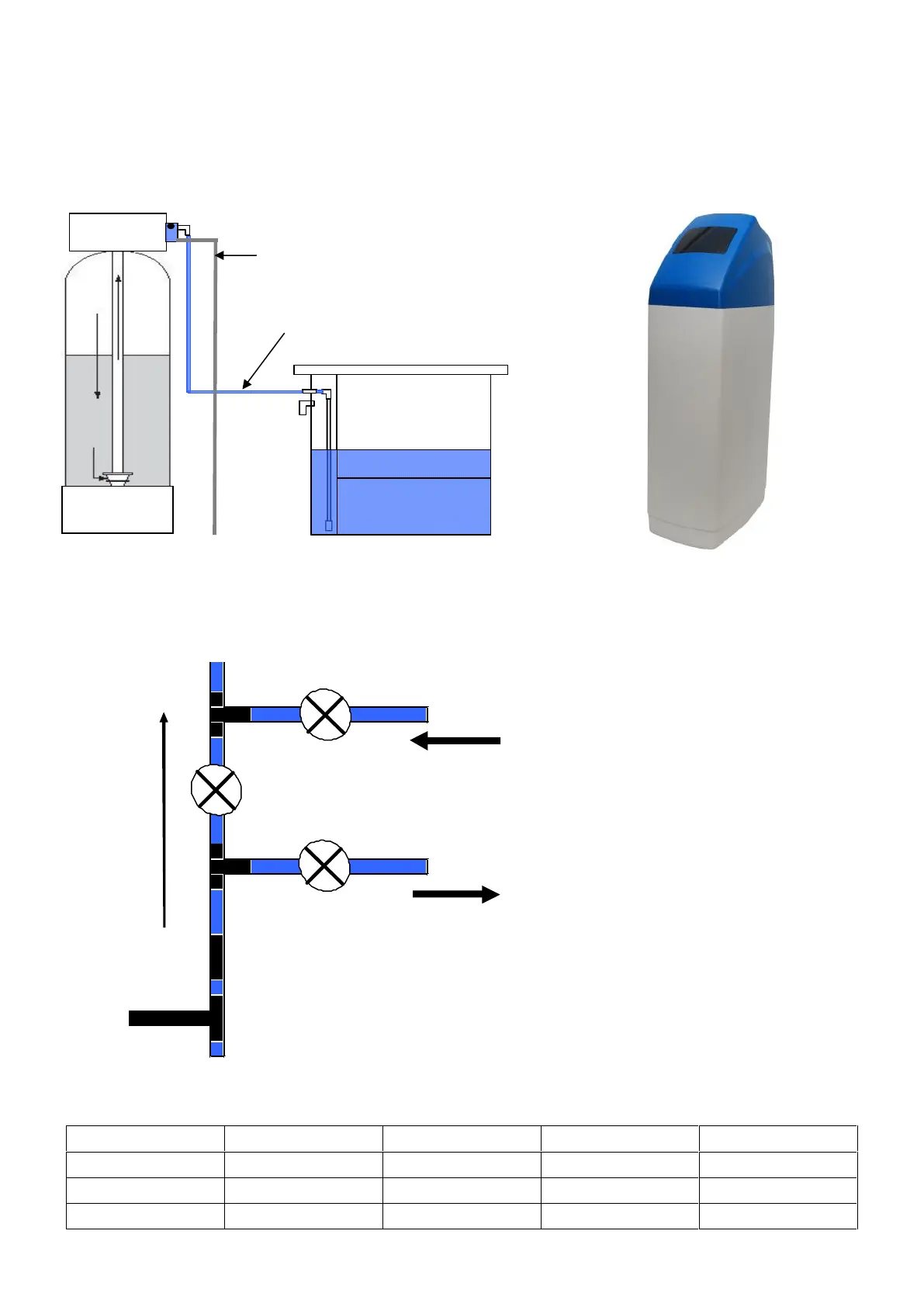

Typical Installation Layout.
Or
Typical bypass setup using three isolation valves plus a non
return valve.
Standard Hydraulic Connections (BSP).
Valve
WS1 CI
WS1.25 CI
WS1.5 CI
WS2 CI
Inlet
1”
1.25”
1.5”
2”
Outlet
1”
1.25”
1.5”
2”
Drain
.75”
.75”
.75”
1.5”
Brine Line
Drain line

Clack WS CI Series Specifications

General

Brand	Clack
Model	WS CI Series
Category	Control Unit
Language	English
