clage DEX 12 Next - Technical Specifications and Dimensions

CLAGE
EN
31
Model DEX 12 Next
Energy efficiency class A *
)
Rated capacity / rated current 8.8 kW..11.5 kW (38 A..50 A)
Chosen capacity / current @ 220 V
8.1 kW (36.6 A) 10.5 kW (47.8 A)
@ 230 V
8.8 kW (38.3 A) 11.5 kW (50.0 A)
@ 240 V
9.6 kW (39.9 A) 12.5 kW (52.2 A)
Electrical connection 1/N/PE 220 V .. 230 V .. 240 V
Min. required cable size 10.0 mm
2
Hot water (l/min)
max. at ∆t = 28 K
max. at ∆t = 38 K
4.5
3.3
5.9
1)
4.3
Rated volume 0.4 l
Rated pressure 1.0 MPa (10 bar)
Connecting type pressure-resistant / pressureless
Heating system Bare wire heating system IES
®
@ 15 °C:
Required specific water resistance
Specific electrical conductivity
≥ 1100 cm
≤ 90 mS/m
Inlet temperature ≤ 70 °C
Flow rate to switch on – max. flow rate 1.5 l/min – 5.0
2)
Pressure loss 0.08 bar at 1.5 l/min 1.3 bar at 9.0 l/min
3)
Temperature range 20 °C – 60 °C
Water connection G ½inch
Weight (when filled with water) 4.2 kg
VDE class of protection I
Type of protection / safety
IP25
*
) The declaration complies with the EU regulation No812/2013.
1) Mixed water
2) Flow rate limited to achieve optimum temperature rise
3) Without flow regulator

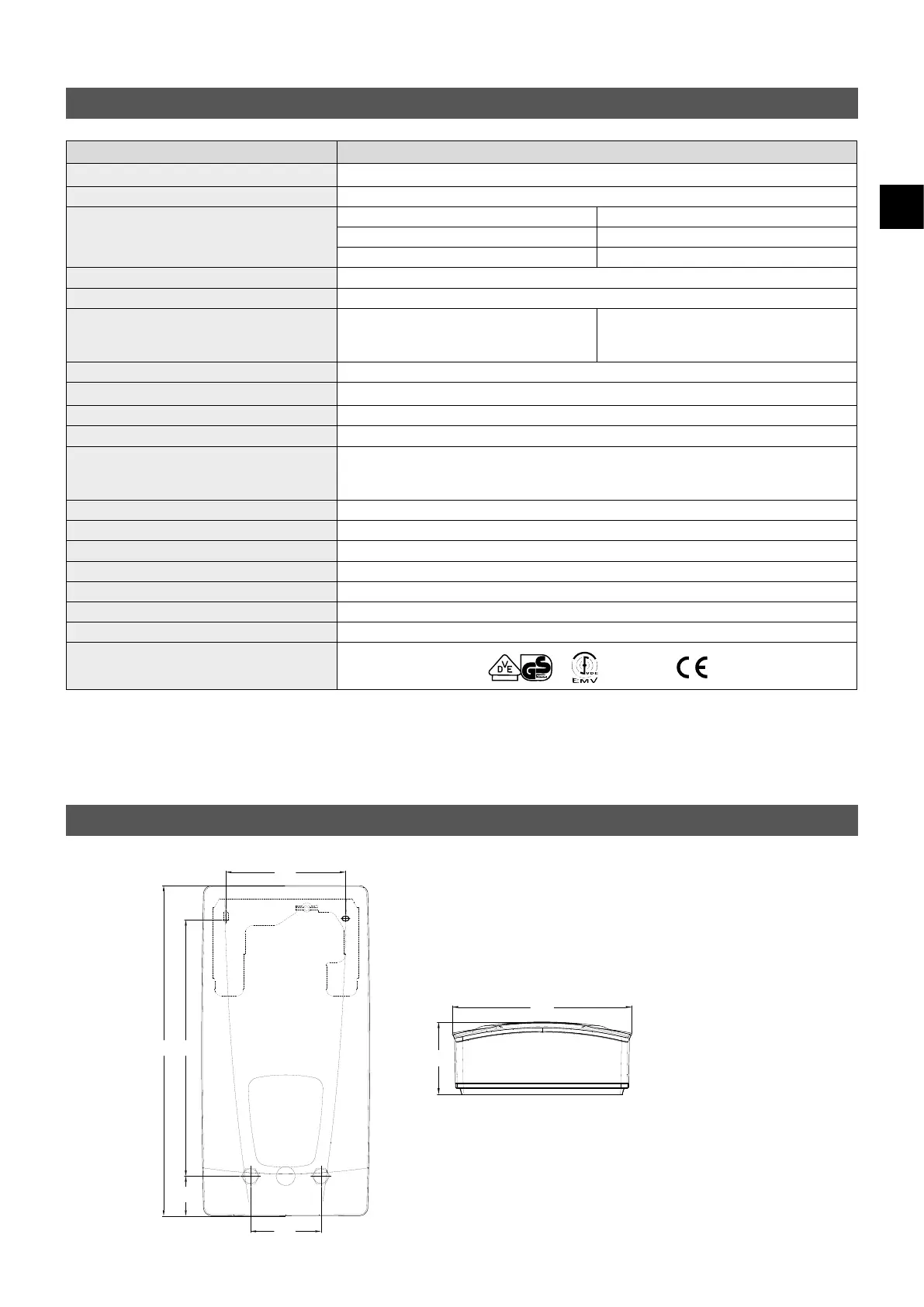

2. Technical specifications
3. Dimensions
100
170
468 363
56
96
239
Dimensions in mm
