5.
This unit has a fan
motor
in
the
back
of
the
main unit so as not
to
raise the temperature
in the source unit. When the fan
motor
vent
is covered with cords
or
mounting bracket,
it
may cause a
malfunction.
Be sure not
to
cover it when wiring cords.

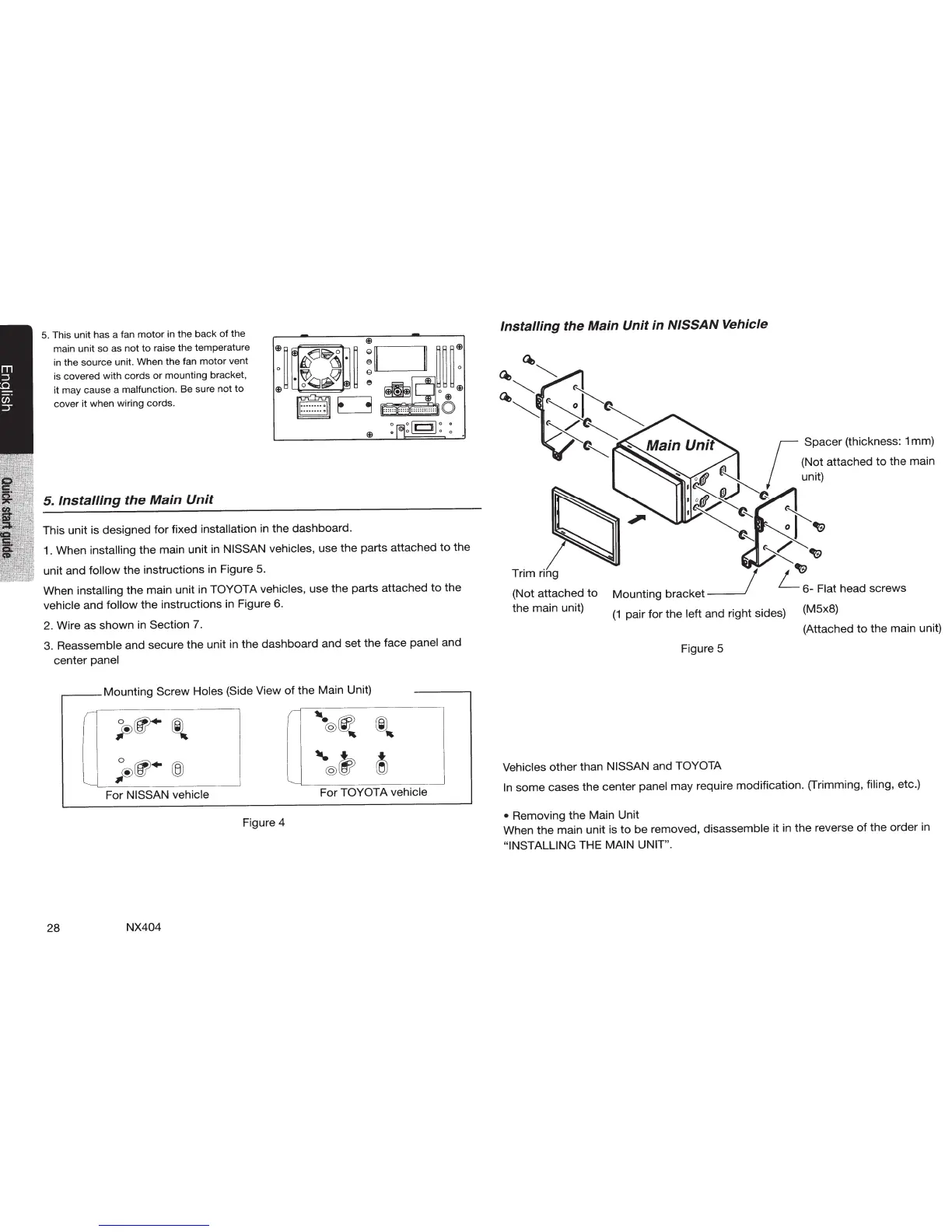

5.
Installing the Main Unit
This unit is designed for fixed installation
in
the dashboard.
o
oJc:::JiJo
o
0 0
1. When
installing the main unit
in
NISSAN vehicles,
use the parts attached
to
the
unit and
follow
the instructions in Figure
5.
When
installing the main unit
in
TOYOTA vehicles,
use the parts attached
to
the
vehicle and
follow
the instructions
in Figure
6.
2. Wire as shown in Section
7.
3.
Reassemble and secure the unit in the dashboard and set the face
panel
and
center
panel
.....-----Mounting
Screw
Holes
(Side View
of
the Main Unit)
I
)r
l\
I
~@~
~
" "
~@@+
®
'@~
~
'------j
~
'------
For
NISSAN vehicle
For
TOYOTA vehicle
Figure 4
28
NX404
Installing the Main Unit in NISSAN
Vehicle
Trim ring
(Not attached
to
the main unit)
Mounting bracket
_J
(1
pair for the left
and right sides)
Figure 5
Vehicles
other than NISSAN and
TOYOTA
(M5x8)
(Attached
to
the main unit)
In
some cases the center
panel
may
require modification. (Trimming, filing,
etc.)
•
Removing the Main Unit
When the main unit is to be removed,
disassemble
it in the reverse
of
the order in
"INSTALLING THE MAIN UNIT".
