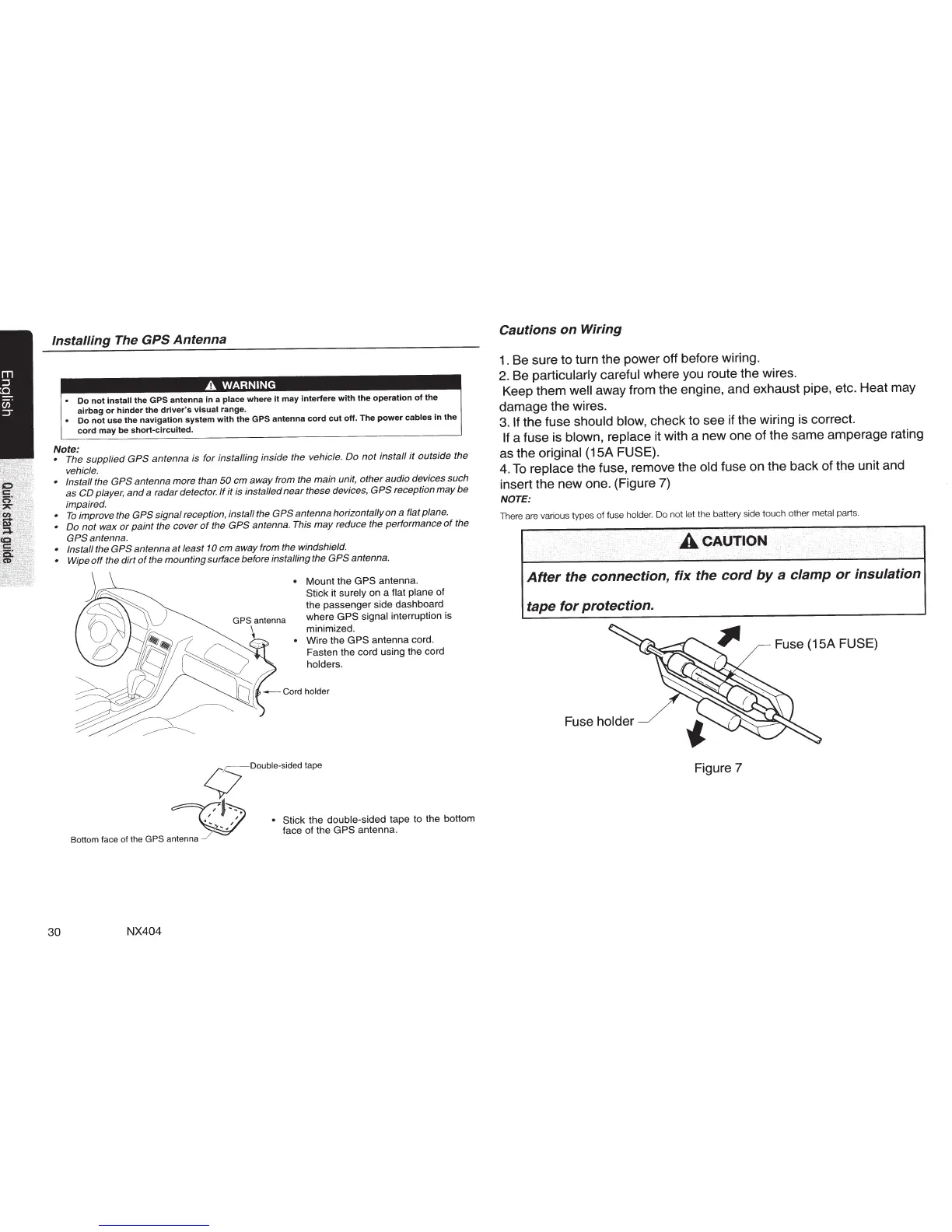

Installing
The GPS
Antenna
A
WARNING
•
Do
not
install
the
GPS
antenna
in
a
place
where
it
may
interfere
with
the
operation
of
the
airbag
or
hinder
the
driver's
visual
range.
•
Do
not
use
the
navigation
system
with
the
GPS antenna
cord
cut
off.
The
power
cables
in
the
cord
may
be
short-circuited.
Note:
•
The supplied
GPS
antenna is for installing inside the vehicle.
Do
not
install it outside the
vehicle.
•
Install the
GPS
antenna more than
50
em away from the main unit, other audio devices such
as CD player,
and
a radar detector.
If
it is installed near these devices,
GPS
reception may be
impaired.
•
To
improve the
GPS
signal reception, install the
GPS
antenna horizontal/yon a flat plane.
Do
not
wax
or
paint the cover
of
the
GPS
antenna. This
may
reduce the performance
of
the
GPS
antenna.
•
Install the
GPS
antenna
at
least
10
em away from the windshield.
•
Wipe
off
the dirt
of
the mounting surface before
installing
the
GPS
antenna.
Bottom face of the
GPS
antenna
30
NX404
•
Mount the
GPS
antenna.
Stick it
surely
on a
flat plane
of
the passenger side dashboard
where
GPS signal
interruption
is
minimized.
•
Wire the
GPS
antenna cord.
Fasten the cord using the cord
holders.
y
Double-sided
tape
·
~
:
l
p
"
•
Stick the
double-sided tape to the bottom
face of the
GPS
antenna.
Cautions
on
Wiring
1.
Be sure to turn the power off before wiring.
2.
Be particularly careful where you route the wires.
Keep them
well away from the engine, and exhaust pipe, etc. Heat may
damage the wires.
3.
If the fuse should blow, check to see if the wiring is correct.
If
a fuse is blown, replace it with a new one of the same amperage rating
as the original (15A FUSE).
4.
To
replace the fuse, remove the old fuse on the back of the unit and
insert the new one. (Figure 7)
NOTE:
There are various types
of
fuse holder.
Do not
let
the battery side
touch
other
metal
parts.
After
the
connection,
fix
the
cord
by
a
clamp
or
insulation
tape
for
protection.
Fuse ( 15A FUSE)
Fuse holder
Figure 7
