- 11 -
PN-2280D
16
49
27
37
60
59
42
4
24
21
10
59
42
4
34
54
53
54
35
47
49
45
60
26
58
58
58
32
55
60
50
33
25
31
39
22
22
4
59
42
36
29
49
15
43
17
60
57
40
38
14
46
12
60
13
60
52
44
60
4
59
51
18
20
42
41
48
35
11
23
28
30
56
19

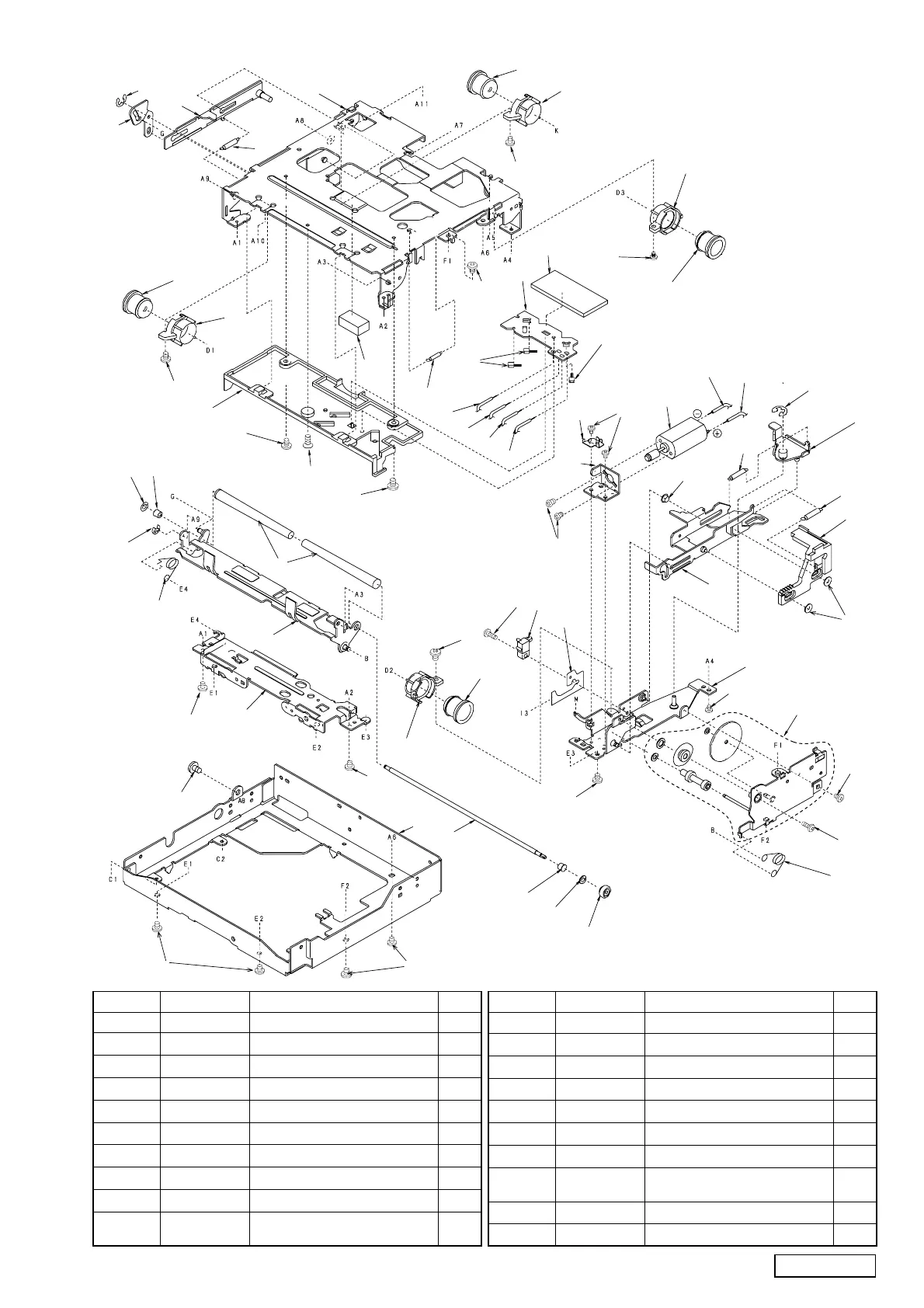

NO. PART NO. DESCRIPTION Q'TYNO. PART NO. DESCRIPTION Q'TY
1-20 621-0357-03 PICK UP GUIDE 1
1-21 621-0253-02 MOTOR HOLDER 1
1-22 621-0255-02 SECOND GEAR 1
1-23 622-1073-02 CLAMPER ROLLER 1
1-24 621-0359-02 LS-HOLDER-R 1
1-25 621-0375-00 SH-BASE 1
1-26 716-0675-00 SCREW(M2×5.5) 2
1-27 716-1555-00 WAVE SCREW(Φ2×8) 1
1-28 732-2004-11 SEMS SCREW(M2×4) 2
1-29 739-1735-17 PRECISION SCREW 2
(M1.7×3.5)
1-30 620-0690-01 RATTLE PLATE 1
1-31 746-0761-00 WASHER 2
1-32 716-1733-00 SCREW(M1.7×2.3) 2
1-33 750-3099-00 ES-SPRING 1
1-34 750-3097-03 CLAMPER SPRING 1
1-35 816-2373-00 LEAD WIRE(WHT) 1
1-36 816-2372-00 LEAD WIRE(BLU) 1
2 039-1101-02 CD PWB ASSY 1
(WITH COMPONENT)
3 001-0563-00 LED 3
4 716-1670-00 SCREW(M2×4) 6
To Next Page
